Eco Hinge - Helpful install tips

Eco vanishing hinge install tips. We will keep adding to this.

Timber board set out video below.

Joist layout and placement details:

• Critical joist placement
• 5mm gap between boards is essential otherwise they will not lift
• Measure your 4 boards from back of the coping
• In this case, workout the 4th board placement( from the back of the coping) and the back side joist set placement
• Measure 410mm back towards the pool, from the inside to inside 140mm joists. This will give you the placement of the poolside joist set
• Use the decking board set out to help guide you on the backside joist set
• Once you have fixed the timber lifting lid down to 3 x hinges, add 45mm x 45mm x 3mm aluminium right angle to the centre of the under side of the timber board
• If you are unsure, please call Justin 02102332600 or email info@poolsolarheating.co.nz

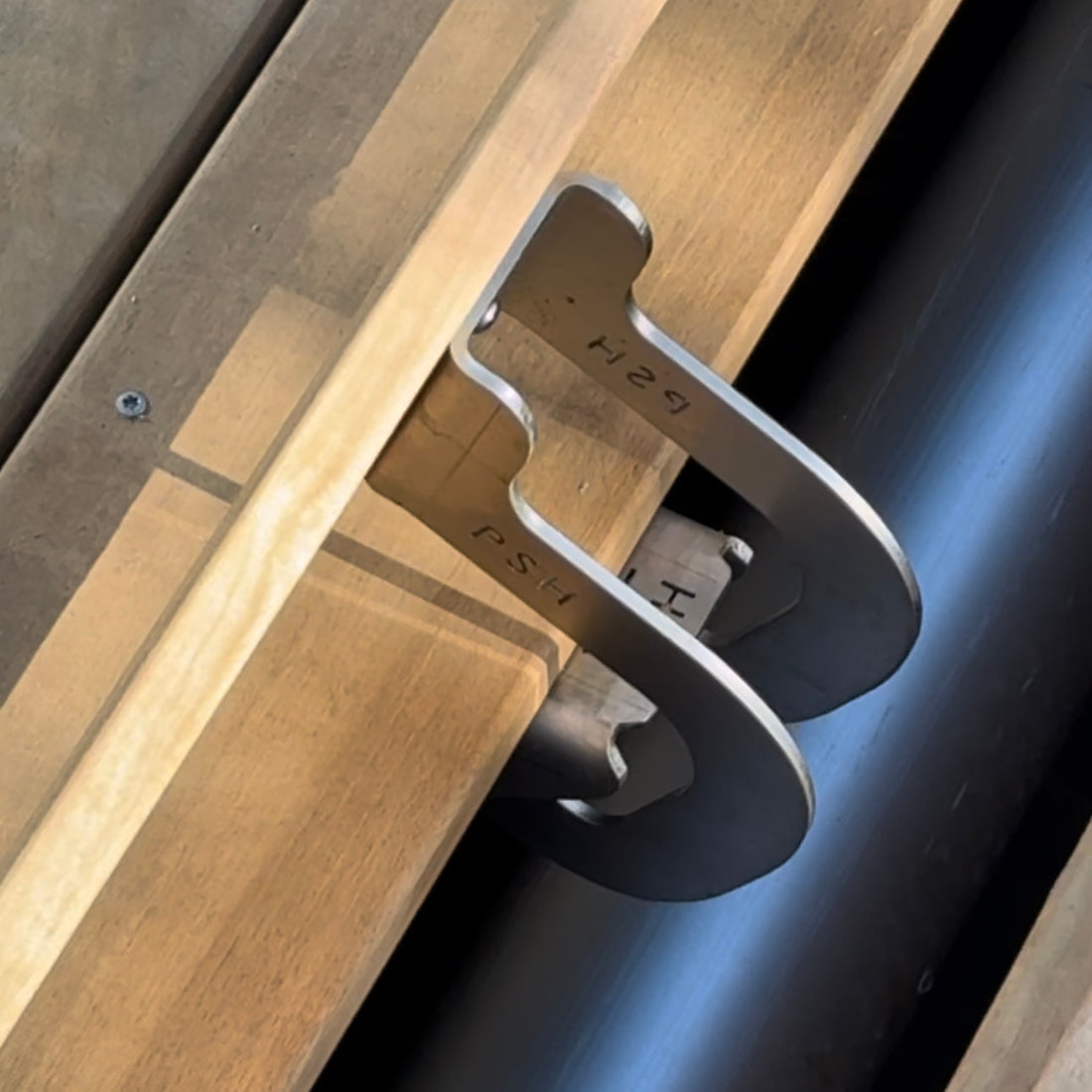

To install the Eco hinge brackets and chassis. Install the 140mm joists and right angle brackets (Highlighted in RED).

Frame the 90mm x 45mm so they will sit within the 140mm joists

Mark off your nail line, which will be your bracket placements on the 90 x 45mm joists

Install your right angle brackets every 500mm apart

place your 90 x 45mm framed brackets and joists into place

Fix 90 x 45mm joists back to your 140mm joists
