Gladstone Primary - Replacement

Gladstone Primary - Replacement

Report:



Due to the make up of the material of solar collector, the system is not repairable.

• Gasket between each panel - Not designed for pressure
• uograde pump for correct size and balanced pressure and flow
• Panel not designed to withstand our UV and breaks down
• Not balanced pressure or flow
• Importer has gone out of business in NZ
• Old system looks to be 'Floating on roof ie not fixed down correctly, this would contribute to the break down of joins
• Install uses too many different materials ie Galv, Stainless steel, iron roof etc

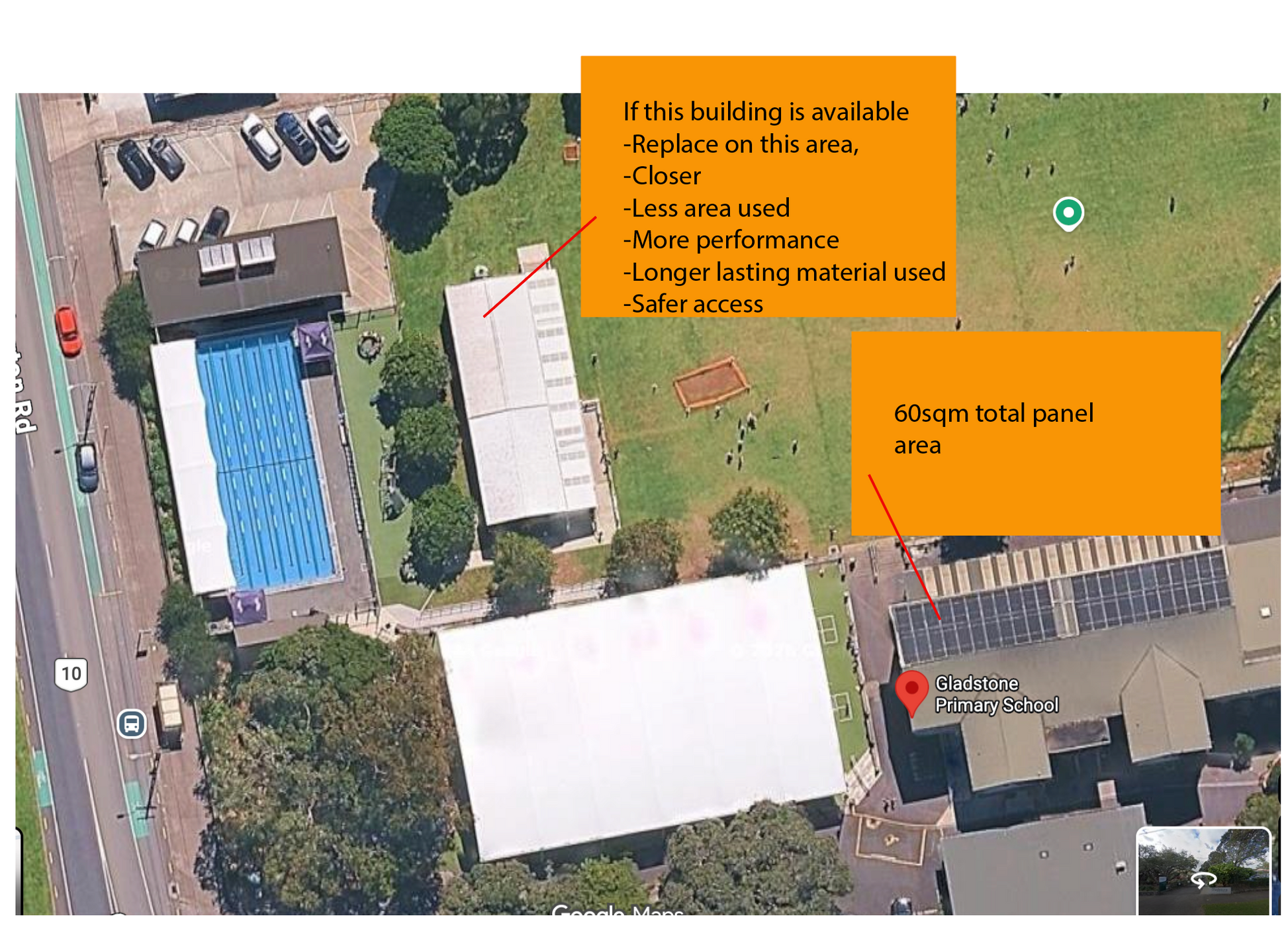

• System to be moved to a new location
• System location, closer, lower, safer easier to service

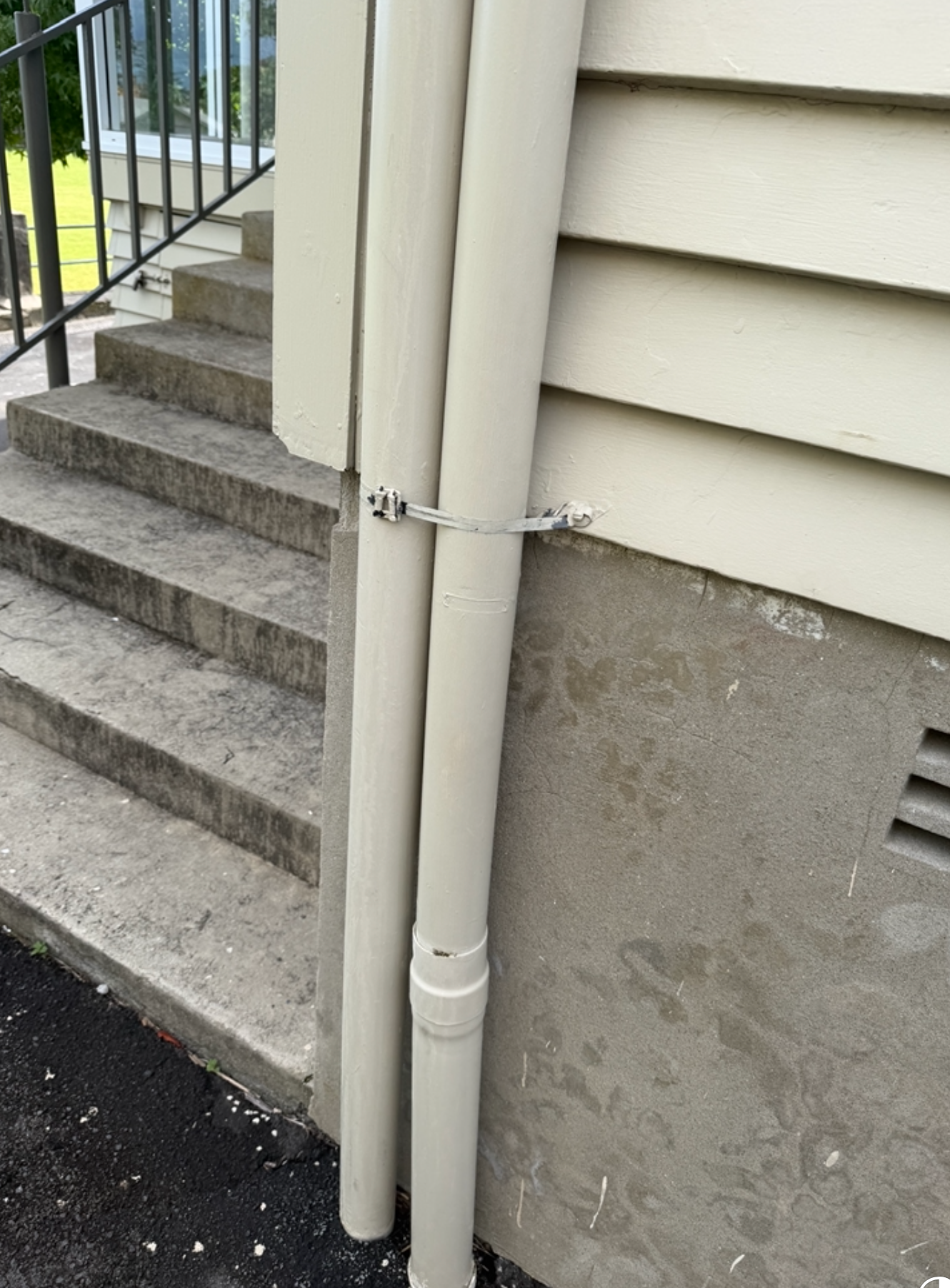

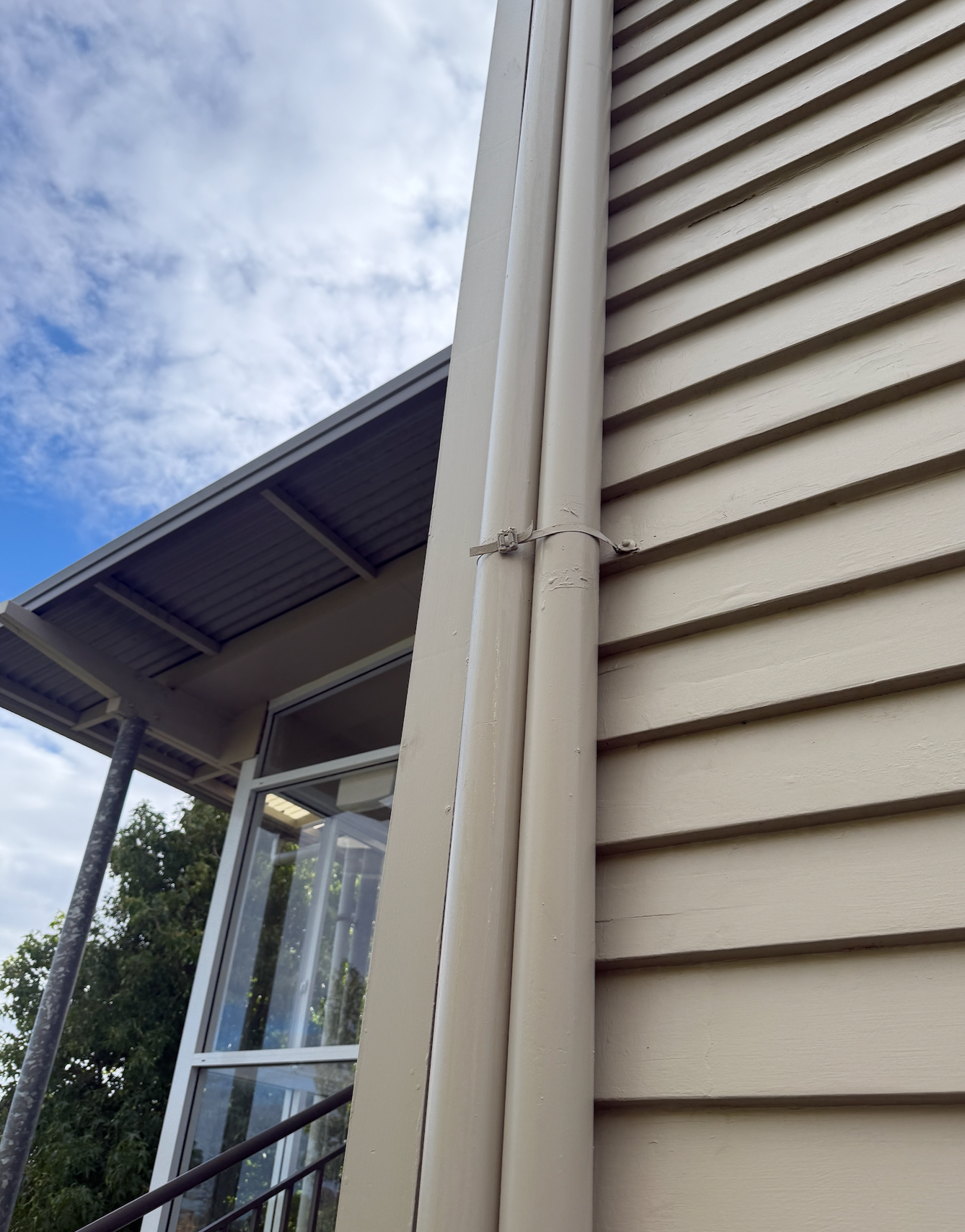

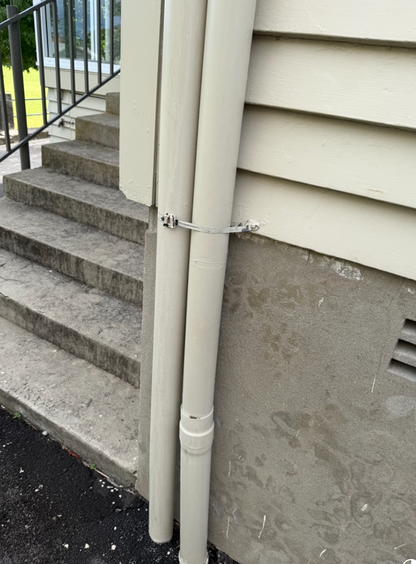

• Weighted water in 65mm pipes are a health and safety risk. PIPES ARE CURRENTLY NOT fixed in position and are tied on with tape. NOT safe and must come off

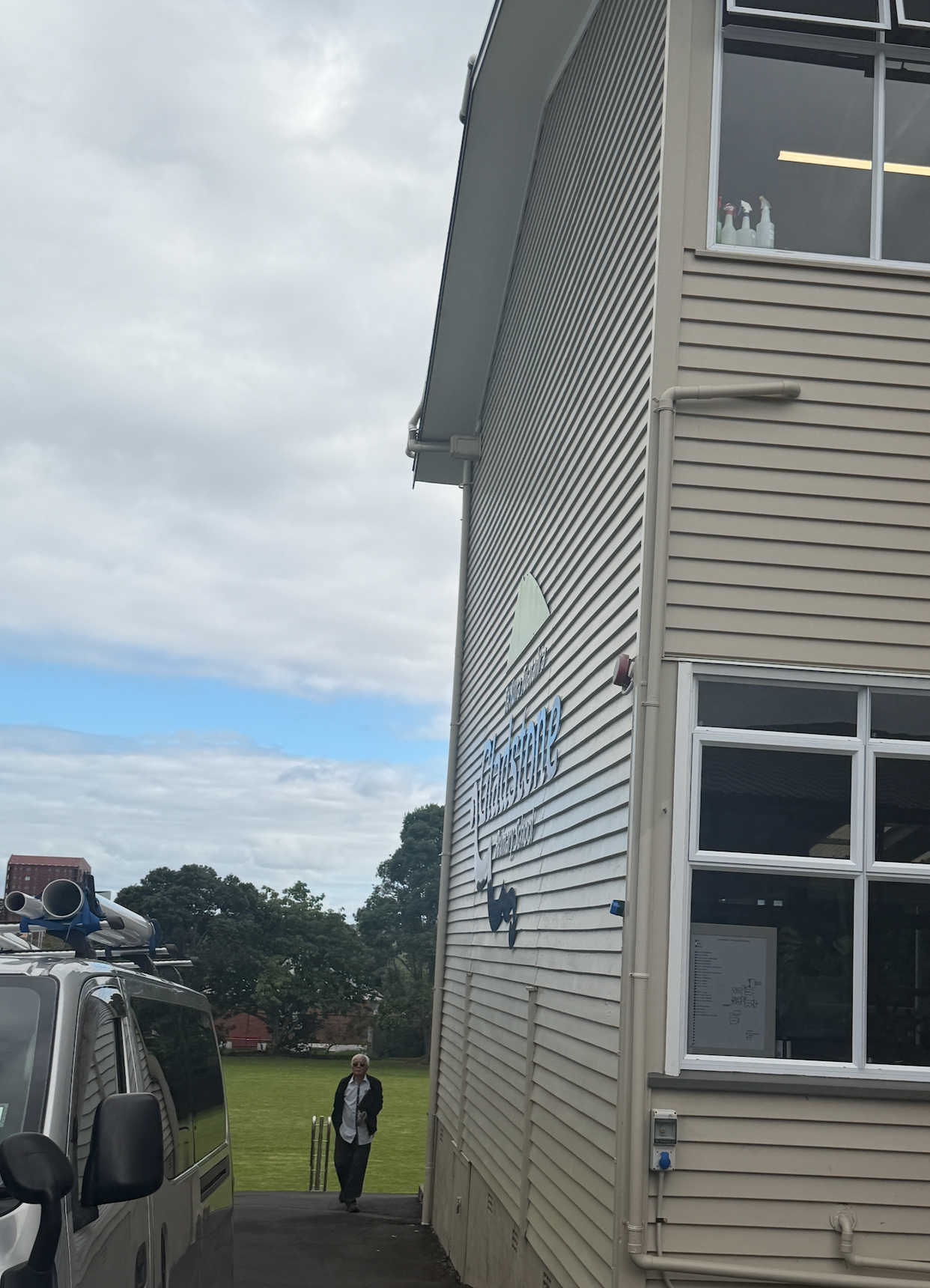

• Pipes are 80kg each going up the side of the wall. If they fall they will certialy cause harm
• The whoole system on the roof must come off the roof
• We will do basic remedial works to roof. Anything over and above will be minor costs ie consumable ie screws, fasteners, water proofing. TBC





Solar only deal and a bundle price incl new blanket and roller.

HiPEC pool solar collector

Links:
Pool Solar Heating
Thermal Pool Cover
Commercial
Mahurangi School

Mahurangi details

Mahurangi install



Output of the system will be in the area of: HiPEC PSH Flexible strip

• 70 SCOP average in season it will reach upwards of 124 SCOP
• Output will be in the area of 250-318kw, returning water to the pump in the area of 35-40 degrees in season
• 1-2.5 degree lift per hour of total volume of water. Super fast heat
• Mid season 318 KWH
• Season Aug - May for solar and heat pump will allow you continue through the full season
• Quoted a 190kw heat pump, but I suspect you will require 2 x 190kw heat pump for full season 12 months
• 4500kwh ($1400) per season to run vs Heat pump circa $50k as there are many contributing factors  to run a pool heater



Roof Temperature vs Air Temperature - Performance (Domestic performance, scaleble for commercial 3x)

True heat performance from heat source ie Heat exchanger and heat from roof ie direct sunlight on roof

Auckland update 6 November 2025

•
•
•
•
•

Auckland update, Aug 24th 2025 performance 2 days with a PSH HiPEC system and a heat guard thermal - started on 11 degrees ambient water. 250% coverage solar collector to pool.



Auckland update, Aug 13th 2025 performance 2 days with a heat guard thermal - 11 degrees ambient water
