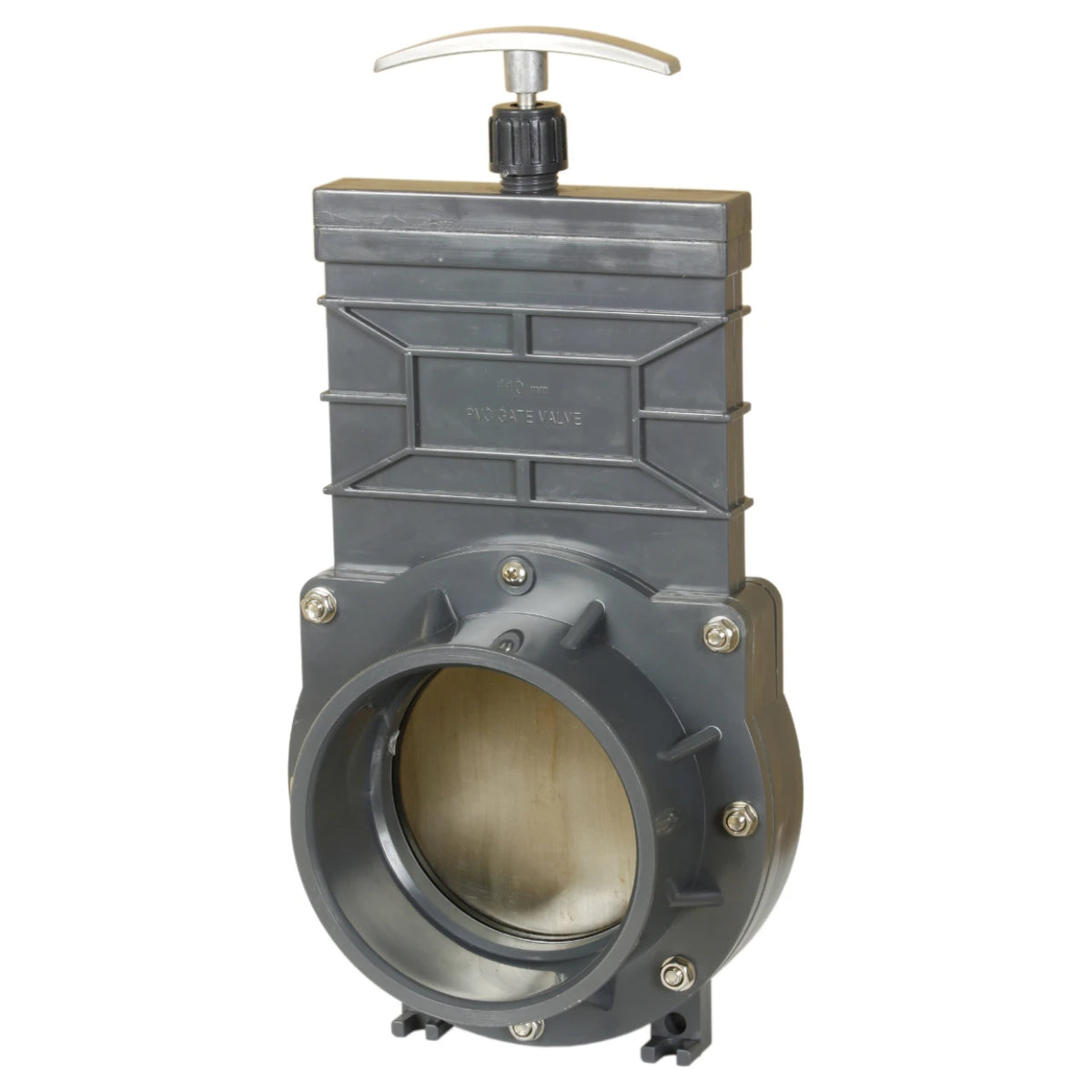

PVC Slide Valve

PVC Slide Valve supplied by Waterworks.

Choose your required size from the options above. Prices include GST.

Specifications

Material:
PVC
Material Notes:
90mm and 100mm valves have a stainless steel slide, 150mm has a PVC slide. All sizes have a 304 grade stainless steel shaft and a PVC handle. The tee handle style valve is only available in sizes 90mm – 150mm. 175mm is a fabricated size as shown in the second picture.
Pressure Rating:
No specified pressure rating however the tee handle style valves (90-100m) can handle low head applications. The 175mm size is not suitable for any head pressure.
Operating Temperature:
Up to 40°C
Standard Seal:
EPDM
Pressure Rating Notes:
The 175mm valve is suitable for stormwater diversion, but it is not designed to withstand head pressure.
