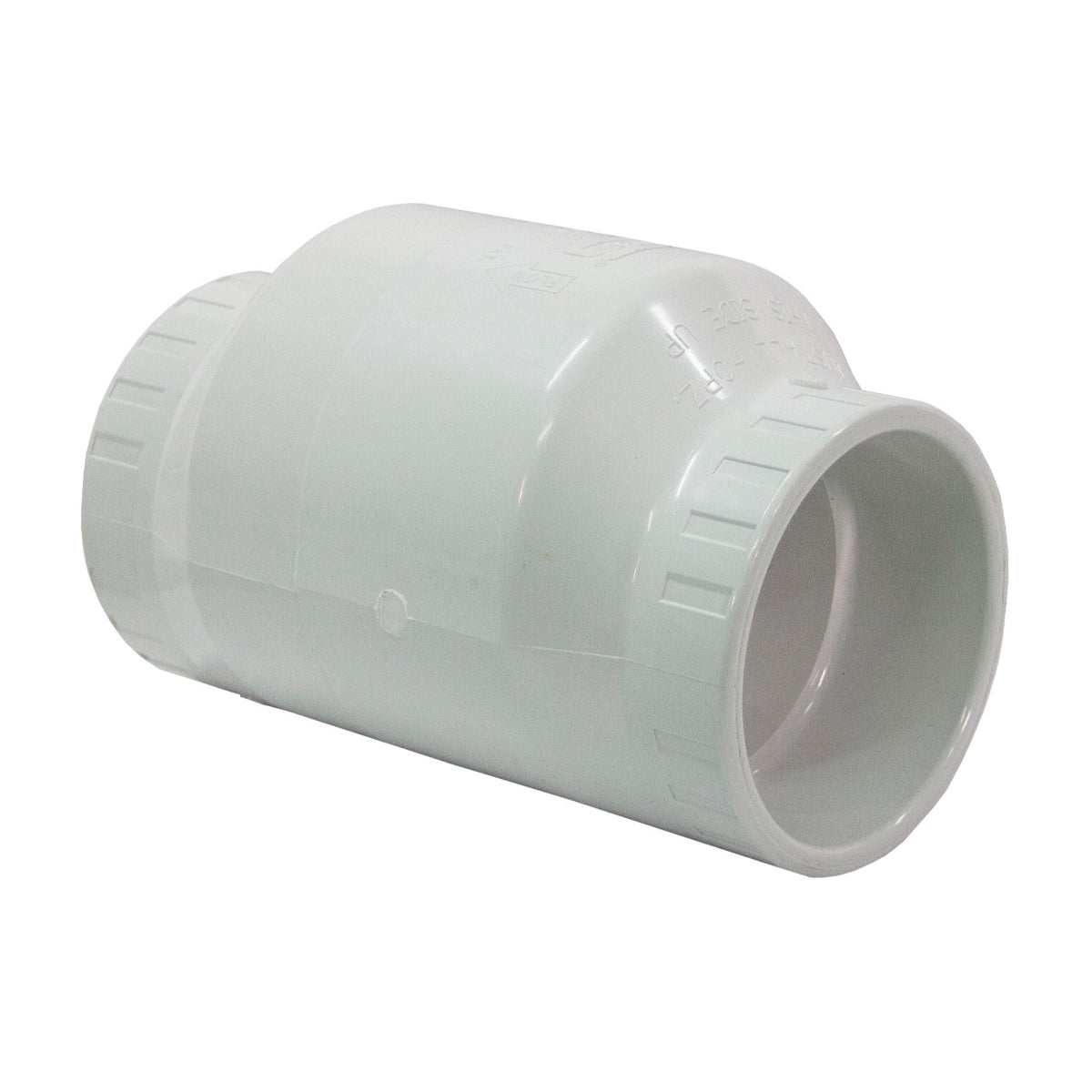

PVC Swing Check Valve

PVC Swing Check Valve supplied by Waterworks.

Choose your required size from the options above. Prices include GST.

Specifications

Material:
PVC
Material Notes:
To protect PVC from deterioration from UV radiation, PVC installed outdoors should be either insulated or painted with a light coloured acrylic or latex paint that is chemically compatible with PVC. Oil-based paints should not be used.
Pressure Rating:
PN10 (10Bar/145PSI/1000kPa) in open position and PN5 (5Bar/73PSI/500kPa) back pressure (closed position)
Pressure Rating Notes:
Pressure rating is at 20°C and may de-rate as temperatures elevate.
Operating Temperature:
4°C to 40°C
Standard Seal:
EPDM
Other Technical Specifications:
EPDM Seat
Weighted Disc
Directional flow indicated by arrow shown on valve body
Suitable for vertical (flow upwards) or horizontal installation
