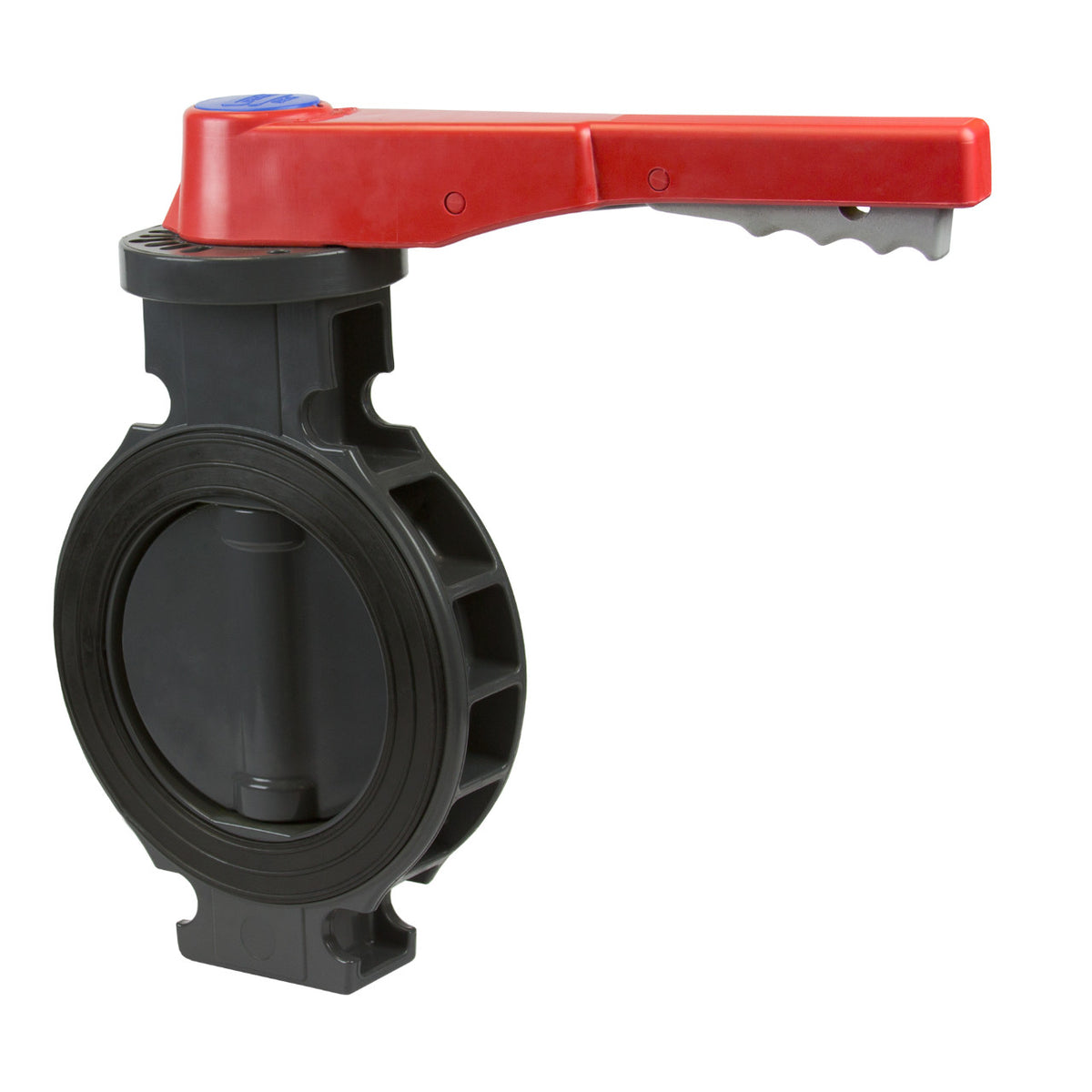

Sch80 CPVC Wafer Butterfly Valve Lever Handle FKM

Sch80 CPVC Wafer Butterfly Valve Lever Handle FKM supplied by Waterworks.

Choose your required size from the options above. Prices include GST.

Specifications

Material:
CPVC/FKM
Material Notes:
Valve seals are FKM. To protect CPVC from deterioration from UV radiation, CPVC installed outdoors should be either insulated or painted with a light coloured acrylic or latex paint that is chemically compatible with CPVC. Oil-based paints should not be used.
Pressure Rating:
150 PSI
Pressure Rating Notes:
Pressure rating applies at 23°C.
Operating Temperature:
4°C to 93°C
Standard Seal:
FKM
Standard Seal Temperature:
Refer to operating temperature
Standard Seal Temperature Notes:
Minimum and maximum temperatures are not recommended for continuous operation or for applications of continuous fluctuations to these temperatures. Also, please keep in mind, as temperatures increase thermal expansion will increase and bracket spacing will decrease. The pressure capability will also need to be de-rated. Please refer to the PVC Pressure Pipe & Fittings Technical Manual for further details.
Other Technical Specifications:
Built-in Santoprene Thermoplastic Elastomer (TFE) flange gaskets
Design for mounting between two flanges with a bolt pattern to ANSI/ASME B16.5 CL 150
Offset disc design
316L stainless steel stem
Isolated stem for dry operation
Impact resistant polypropylene handle
7-position stops
Built-in lockout capability
