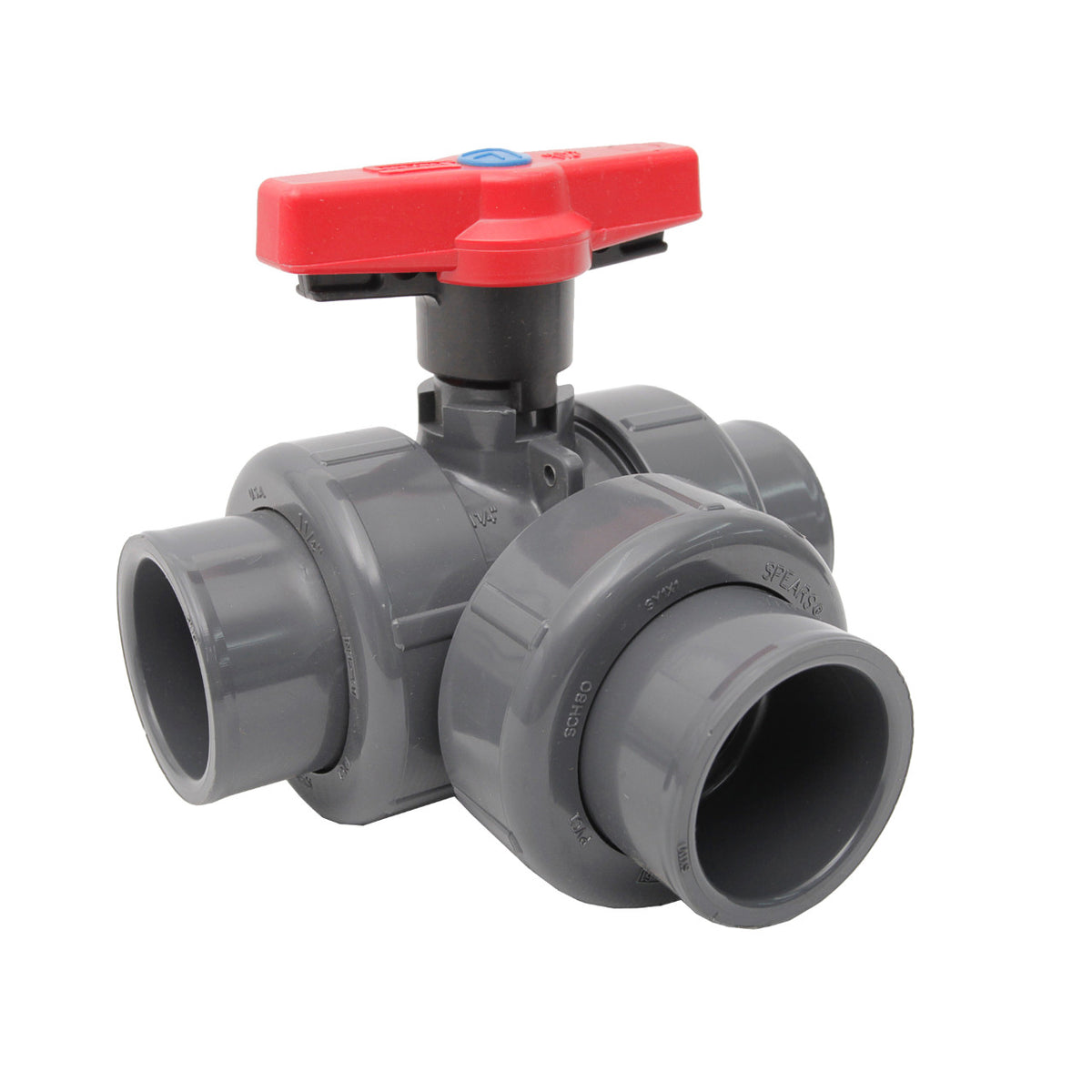

Sch80 PVC TU 2000 Industrial Ball Valve Horizontal Diverter L Port SOC EPDM

Sch80 PVC TU 2000 Industrial Ball Valve Horizontal Diverter L Port SOC EPDM supplied by Waterworks.

Choose your required size from the options above. Prices include GST.

Specifications

Material:
PVC/EPDM
Material Notes:
Valve seals are EPDM. To protect PVC from deterioration from UV radiation, PVC installed outdoors should be either insulated or painted with a light coloured acrylic or latex paint that is chemically compatible with PVC. Oil-based paints should not be used.
Pressure Rating:
235 PSI
Pressure Rating Notes:
Pressure rating applies to sizes 15mm (1/2") to 50mm (2"). 65mm (2 1/2") to 100mm (4") and all flanged valves are rated to 150 PSI at 23°C.
Operating Temperature:
4°C to 40°C
Standard Seal:
EPDM
Standard Seal Temperature:
Refer to operating temperature
Standard Seal Temperature Notes:
Maximum temperature is 60°C. Minimum and maximum temperatures are not recommended for continuous operation or for applications of continuous fluctuations to these temperatures. Also, please keep in mind, as temperatures increase , thermal expansion will increase and bracket spacing will decrease. The pressure capability will also need to be de-rated. Please refer to the PVC Pressure Pipe & Fittings Technical Manual for further details.
Other Technical Specifications:
Horizontal typeSafe-T-Shear stemDouble O-ring stem sealsPolypropylene handle with built-in lockout mechanismUnion nuts have buttress threadsSeal carriers are Safe-T-BlockedValve components are replaceable
