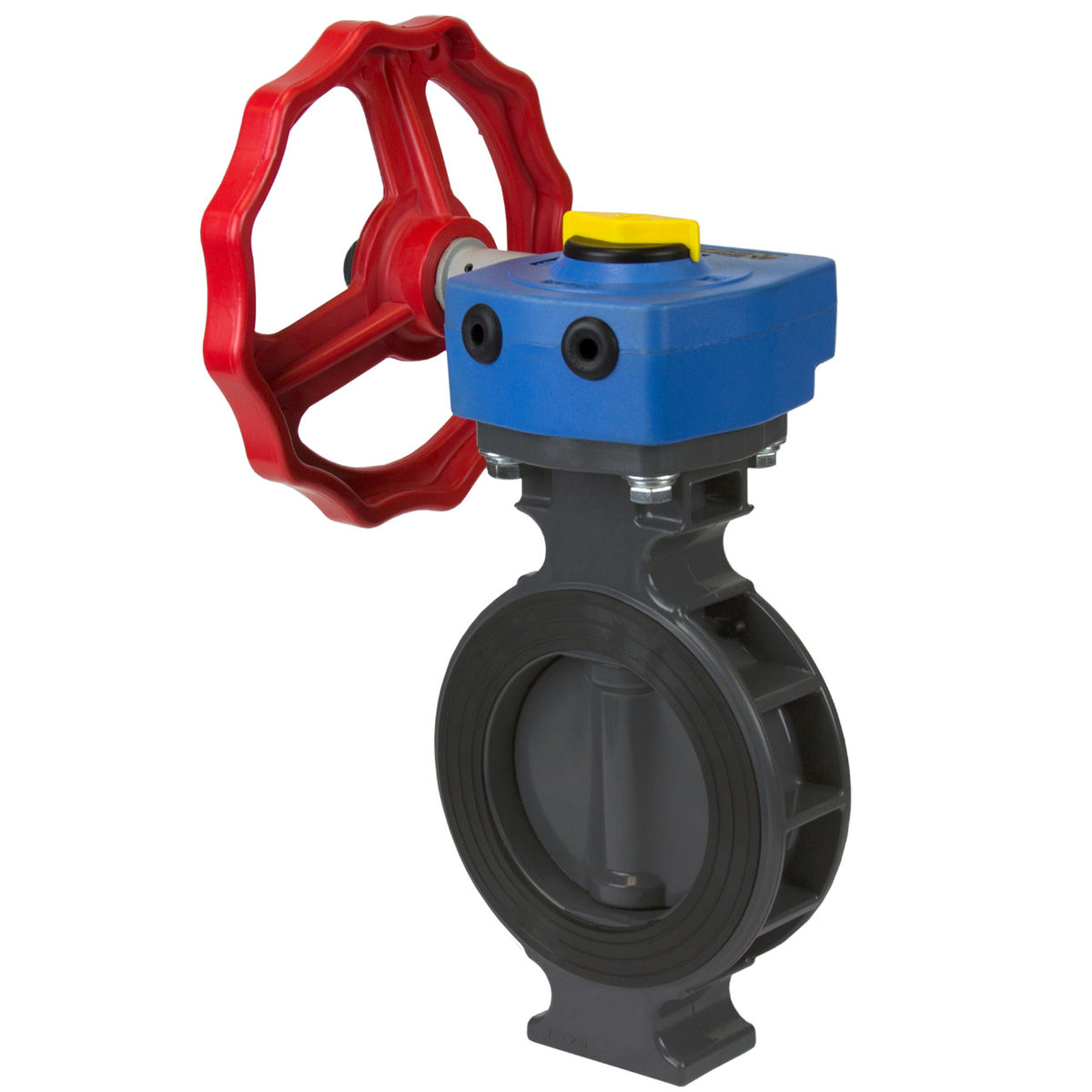

Sch80 PVC Wafer Butterfly Valve Gear Operator - FKM

Sch80 PVC Wafer Butterfly Valve Gear Operator - FKM supplied by Waterworks.

Choose your required size from the options above. Prices include GST.

Specifications

Material:
PVC/FKM
Material Notes:
Valve seals are FKM. To protect PVC from deterioration from UV radiation, PVC installed outdoors should be either insulated or painted with a light coloured acrylic or latex paint that is chemically compatible with PVC. Oil-based paints should not be used.
Pressure Rating:
150 PSI
Pressure Rating Notes:
Pressure rating applies at 23°C.
Operating Temperature:
4°C to 40°C
Standard Seal:
FKM
Standard Seal Temperature:
Refer to operating temperature
Standard Seal Temperature Notes:
Maximum temperature is 60°C. Minimum and maximum temperatures are not recommended for continuous operation or for applications of continuous fluctuations to these temperatures. Also, please keep in mind, as temperatures increase , thermal expansion will increase and bracket spacing will decrease. The pressure capability will also need to be de-rated. Please refer to the PVC Pressure Pipe & Fittings Technical Manual for further details.
Other Technical Specifications:
Built-in Santoprene ThermoplasticElastomer (TFE) flange gasket316L stainless steel stemVisual position indicatorHigh impact resistant polypropylene handwheel
