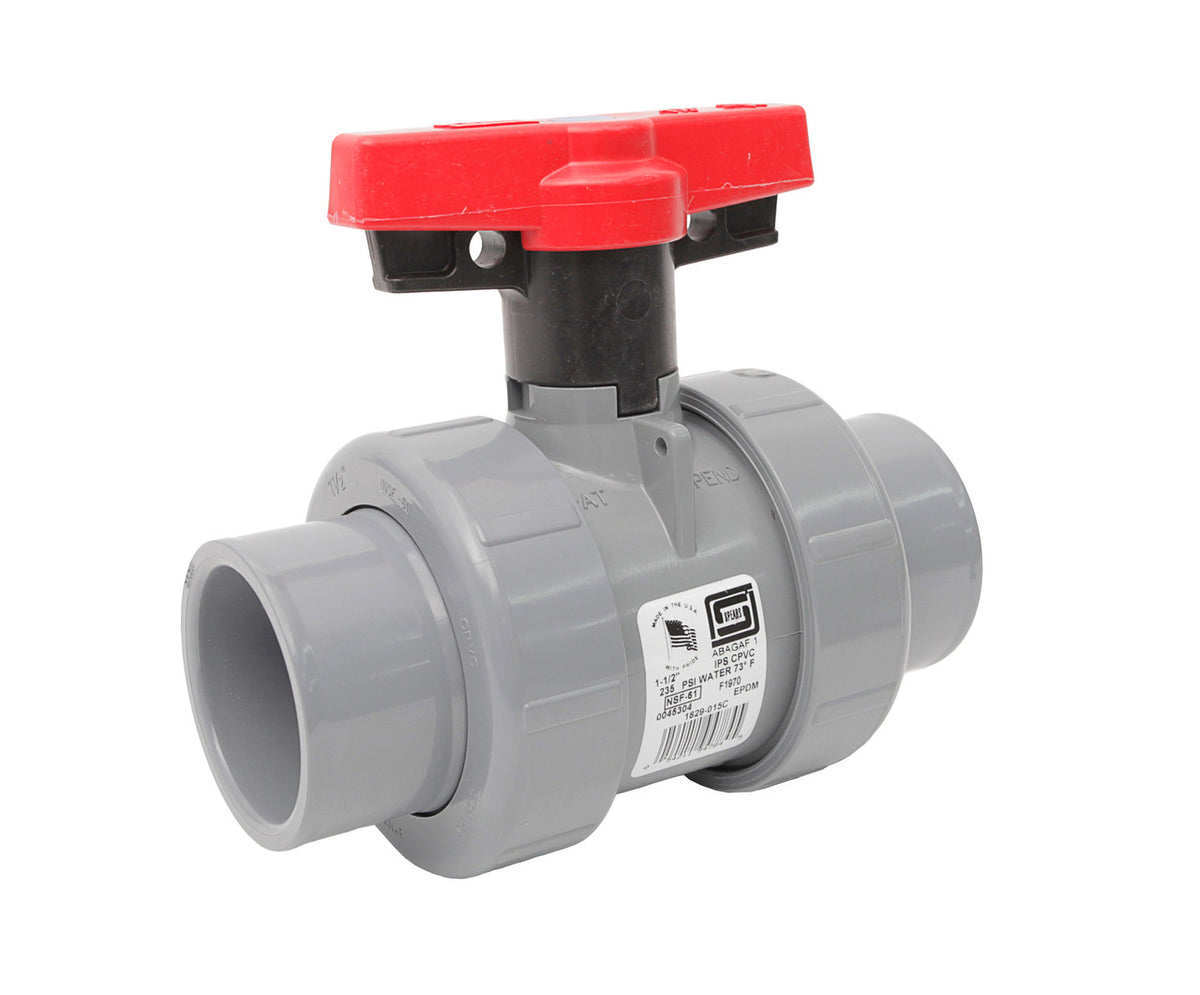

SPEARS Sch80 CPVC True Union 2000 Industrial Ball Valve SOC CPVC FKM

SPEARS Sch80 CPVC True Union 2000 Industrial Ball Valve SOC CPVC FKM supplied by Waterworks.

Choose your required size from the options above. Prices include GST.

Specifications

Material:
CPVC/FKM
Material Notes:
Valve seals are FKM. To protect CPVC from deterioration from UV radiation, CPVC installed outdoors should be either insulated or painted with a light coloured acrylic or latex paint that is chemically compatible with CPVC. Oil-based paints should not be used.
Pressure Rating:
235 PSI
Pressure Rating Notes:
Pressure rating applies to sizes 15mm (1/2") to 100mm (4") at 23°C.
Operating Temperature:
4°C to 93°C
Standard Seal:
FKM
Standard Seal Temperature:
Refer to operating temperature
Standard Seal Temperature Notes:
Minimum and maximum temperatures are not recommended for continuous operation or for applications of continuous fluctuations to these temperatures. Also, please keep in mind, as temperatures increase thermal expansion will increase and bracket spacing will decrease. The pressure capability will also need to be de-rated. Please refer to the PVC Pressure Pipe & Fittings Technical Manual for further details.
Other Technical Specifications:
Safe-T-Shear stem
Double O-ring stem seals
Polypropylene handle
Built-in lockout mechanism
Union nuts have buttress threads
Seal carriers are Safe-T-Blocked
Valve components are replaceable
