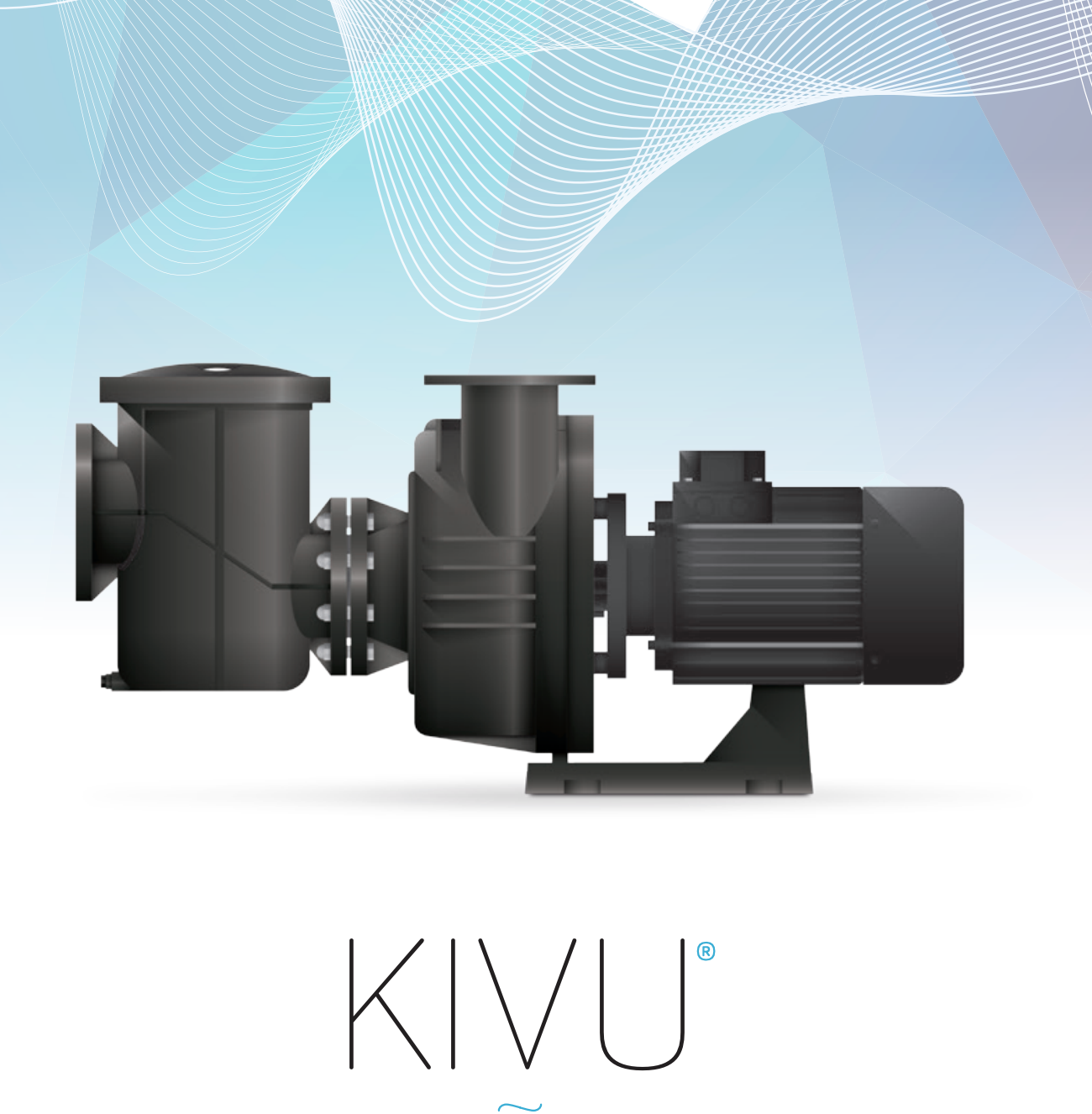

KIVU pumps of 3 HP, 4 HP and 5.5 HP

ABB KIVU pumps of 3 HP, 4 HP and 5.5 HP Ideal for pools in hotels, residential communities, aquariums and seawater leisure parks. Commercial pool pumps.

Custom built commercial pumps

• Plastic 1500 rpm self-priming pump. - Low noise level: up to 59 dBA. - Hydraulic efficiency of 78% (compliant with standard ISO 9906). - Separate 8 litre prefilter. The pump can be sold without a prefilter

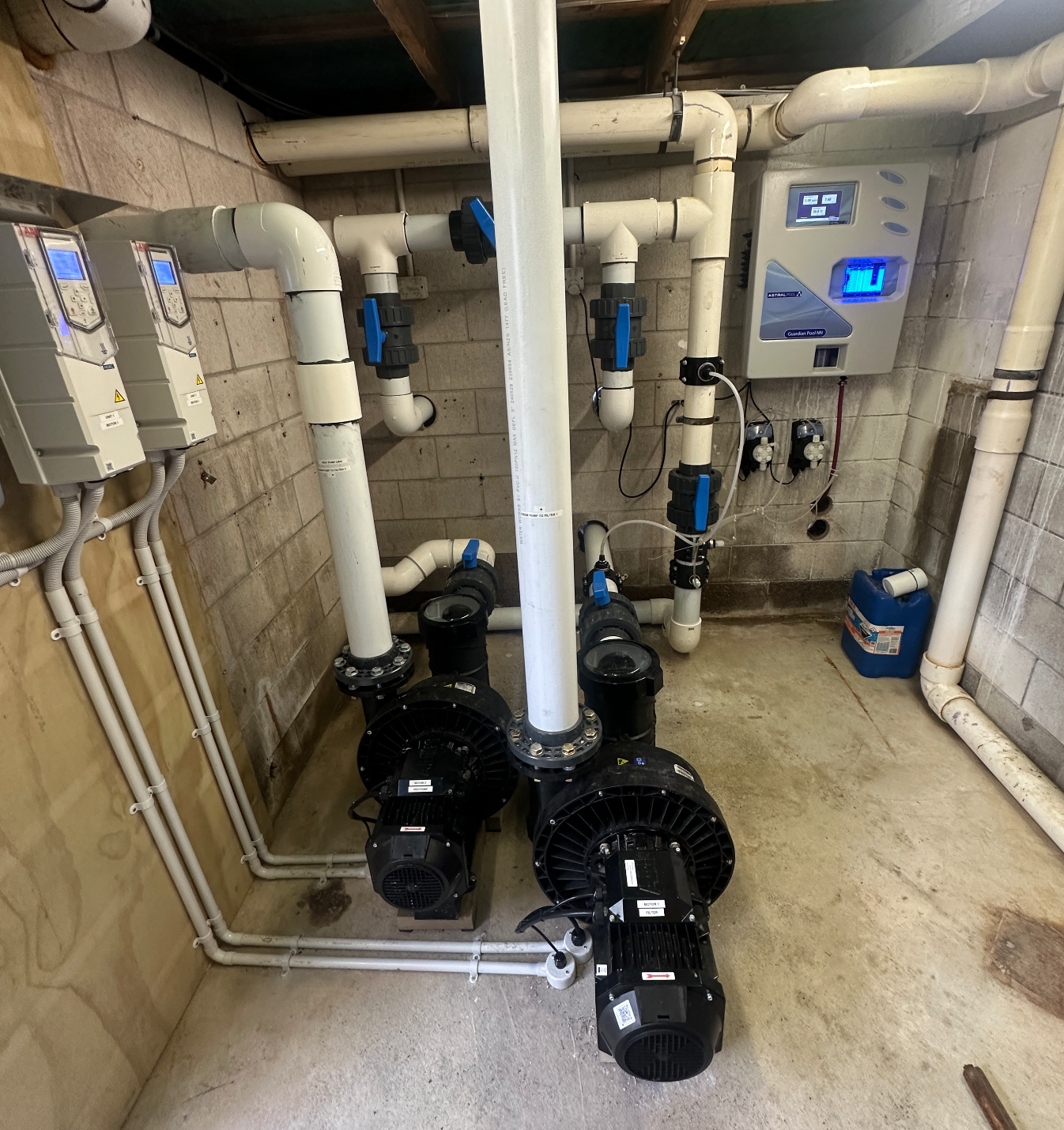

KIVU pumps of 7.5 HP, 10 HP and 15 HP Ideal for public pools, Olympic pools, water parks, aquariums, fish farms and seawater facilities.

• Plastic 1.500 rpm self-priming pump. - Low noise level: up to 66 dBA. - Hydraulic efficiency of 85% (compliant with standard ISO 9906). -Separate 25 litre prefilter. The pump can be sold without a prefilter.

ABB VARIABLE SPEED DRIVE-4.0KW

Prices are subject to change and confirmation, please contact for mew details

FEATURES

- High efficiency plastic pump

- 1500rpm centrifugal pump

- Low noise level: up to 66dBA

- Power range 7.5 - 10 and 15HP

- Hydraulic efficiency without pre-filter 85%

(compliant with ISO 9906 standard)

- For large flow use, up to 280m³/h

- Standard 125mm Inlet x 100mm Outlet

- Closed coupled optional hair and lint pot

(25 Litres)

- Standard IEC motor with B5 aluminium motor

flange configuration

- High efficiency motors compliant with IE2

and NEMA standards (IEC 60034-30 and

NEMA Premium compliant). IE3 ready.

- Standard motor shaft (compatibility with any

motor manufacturer)

- Plastic impeller (No metallic parts in contact

with water)

- Product with UL and GS marks

- Supply voltage: 380-415VAC 3 Phase

- AISI-316 stainless bolts

- 316 Stainless Steel EPDM Mechanical Seal

suitable for salt pools to sea water
