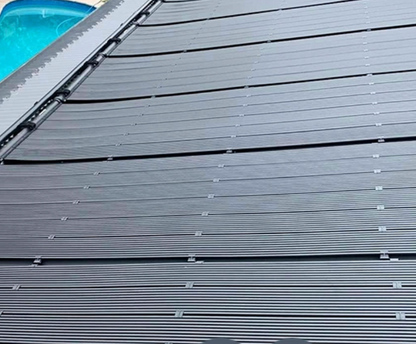

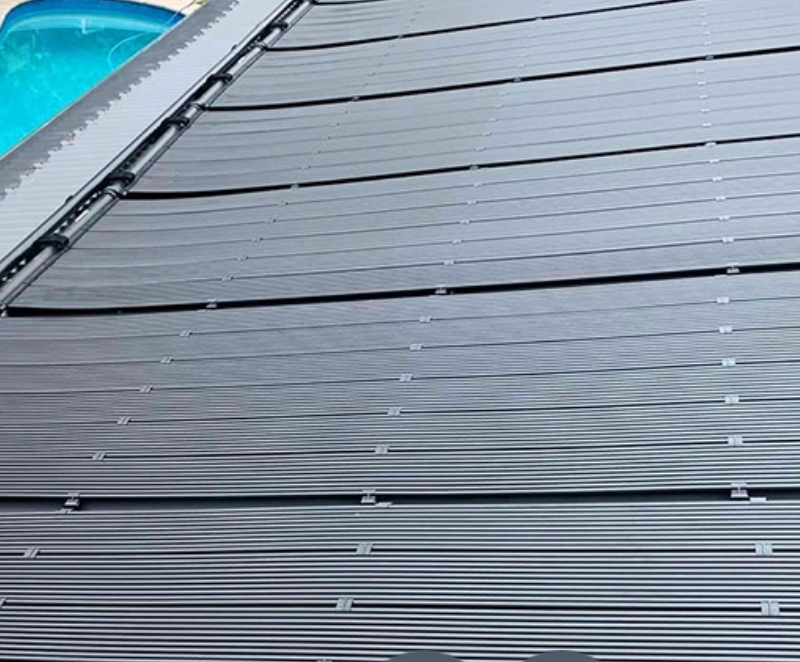

PSH Pool Solar Heating Panels

• Rigid solar comes in single moulded panel

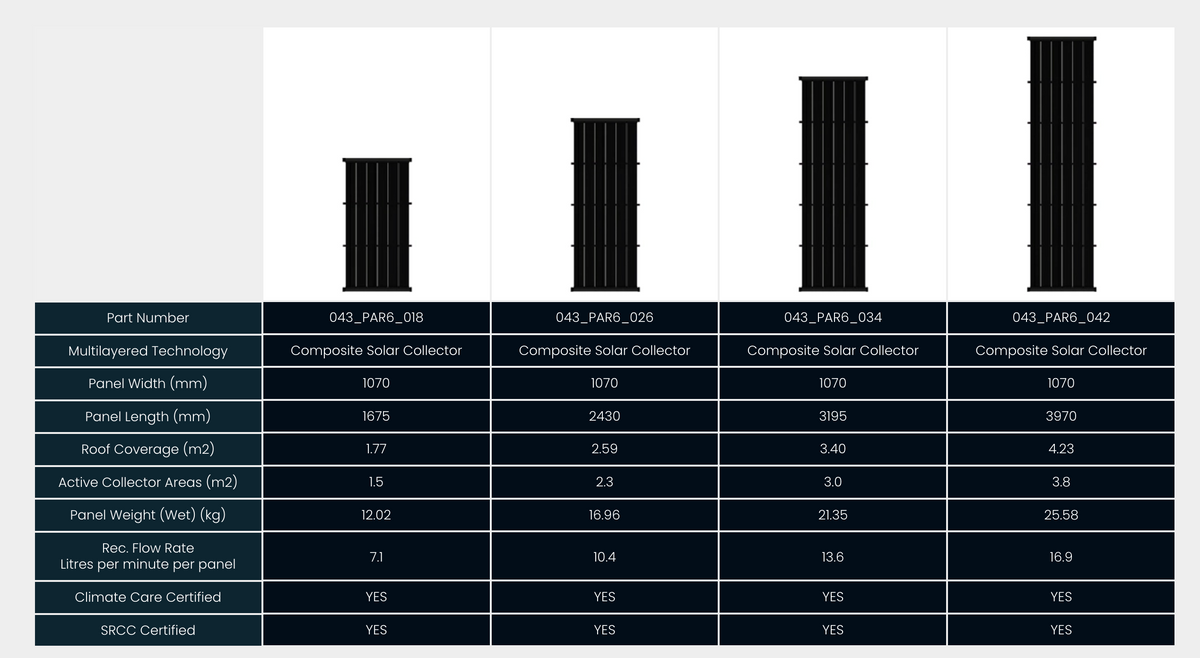

• There are several sizes available
• Panels are the alternative to the more popular strip
• They are used for conditions such as steep roofs
• Australian Made - Closer manufacturing and relates to NZ UV
• Every component has been redesigned for greater strength and durability

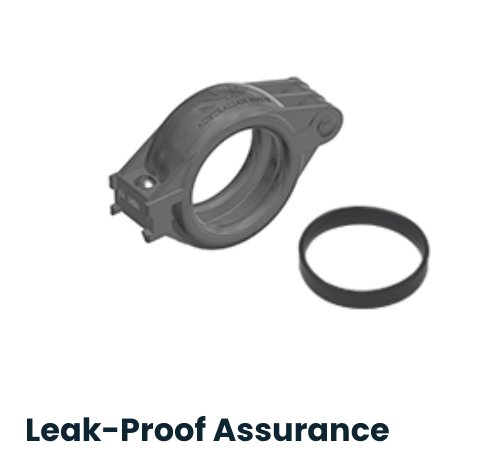

• PSH connections are triple sealed
• PSH collector tubes are larger and thicker
• Reduce the need to make roof penetrations with some clever design

For more information regarding a detailed quote email info@poolsolarheating.co.nz or call Justin on 021 0233 2600

• Tube Outside Diameter 8.0mm
• Tube Inside Diameter 6.0mm
• Tube Pitch 10mm
• Tube Wall Thickness 1.0mm
• Average Flooded Weight 6.61 kg/m2
• Recommended Flowrate Range 0.05 – 0.17 L/Sec/m2
• Maximum Pressure 500 KPA
• Maximum Temperature 700C
