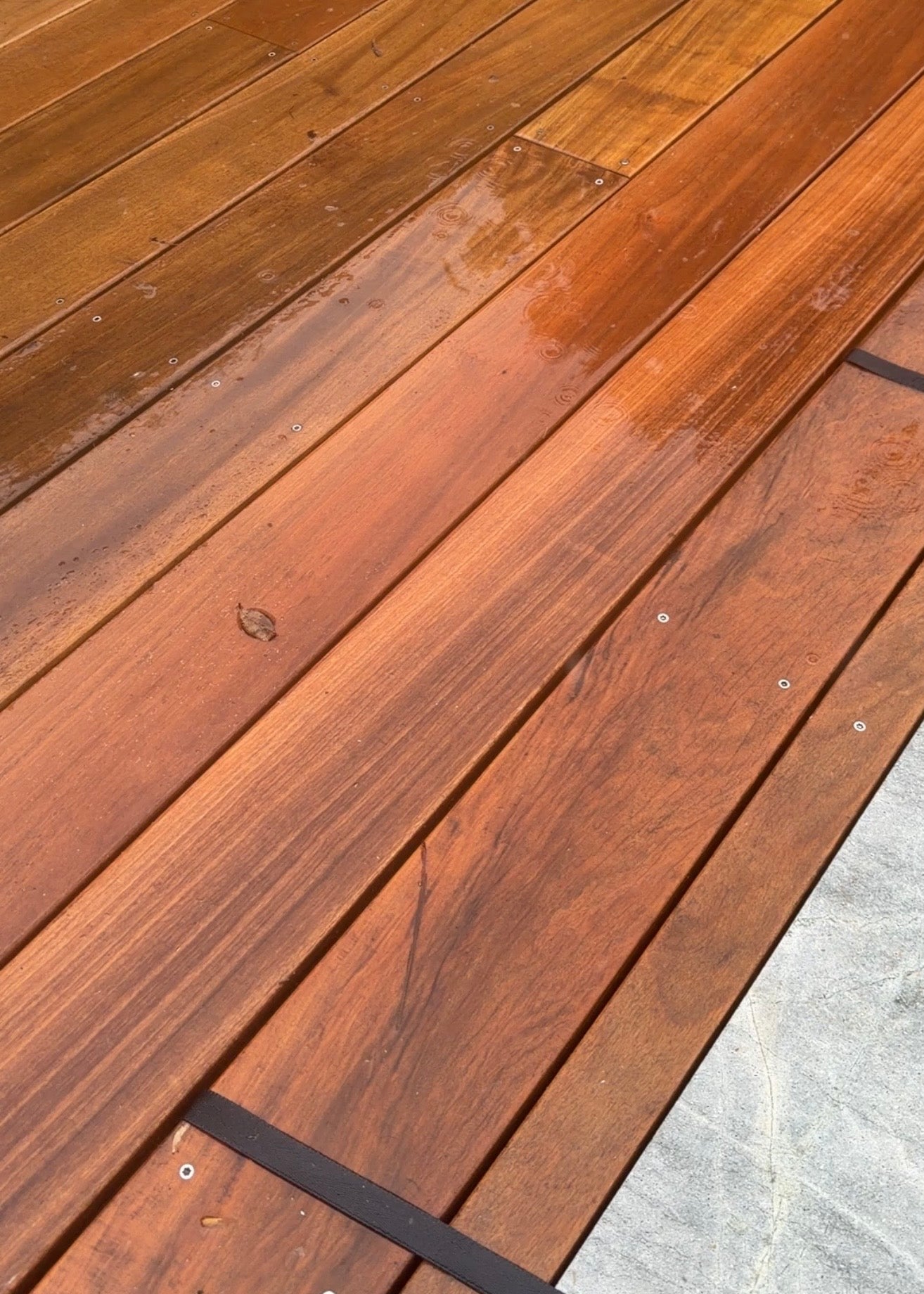

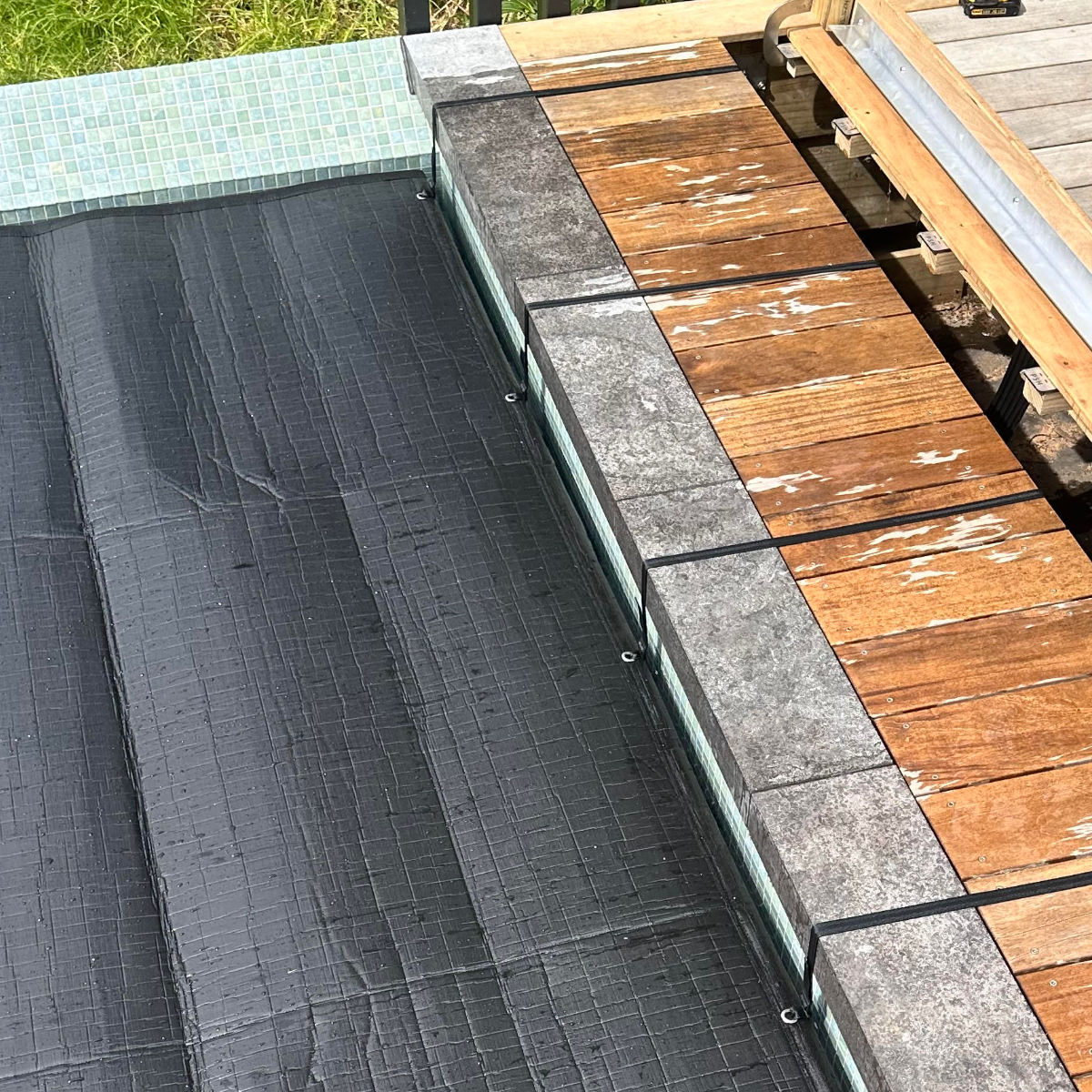

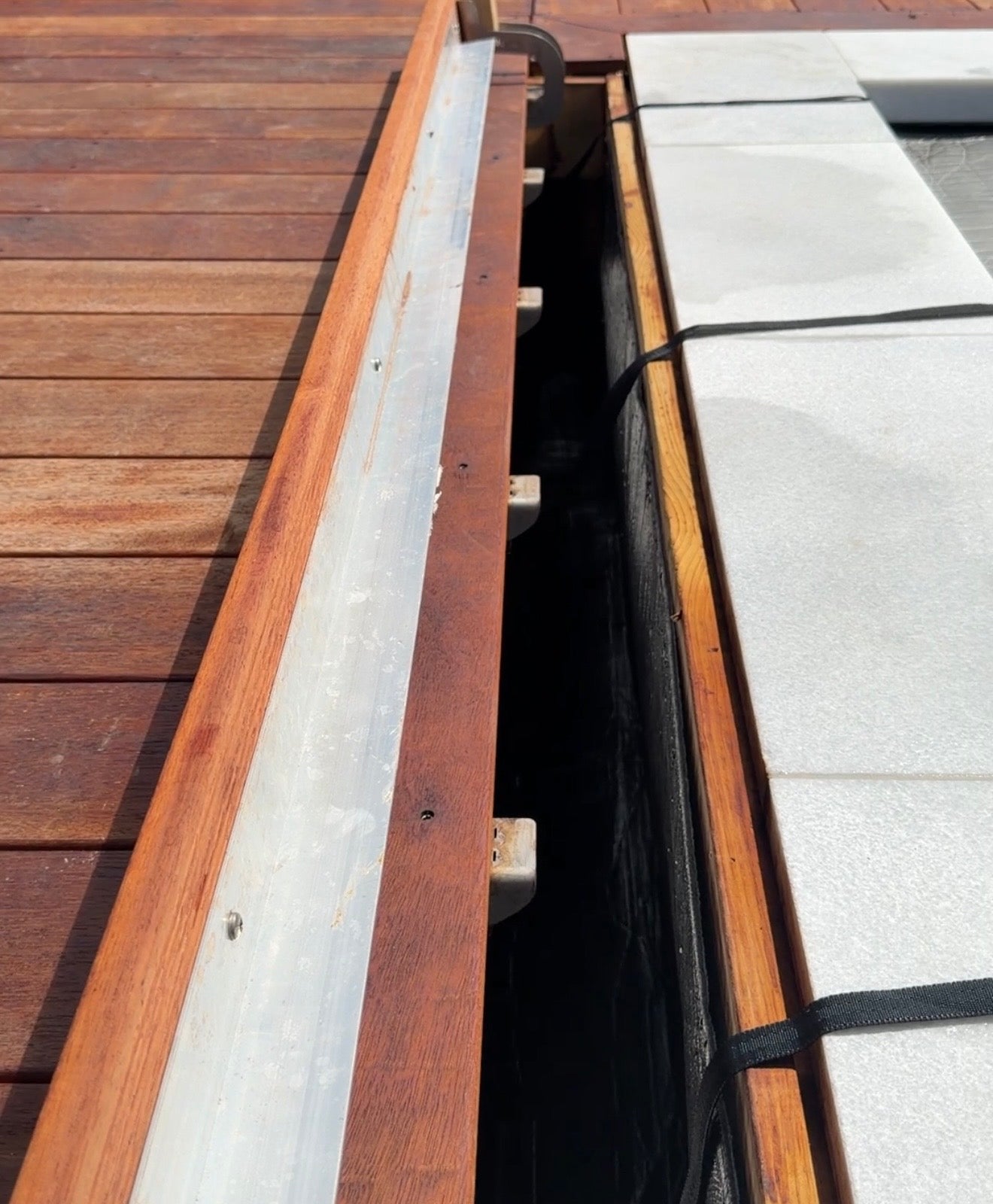

Eco-Vanishing Hinge System + Manual Roller – hidden pool blanket storage

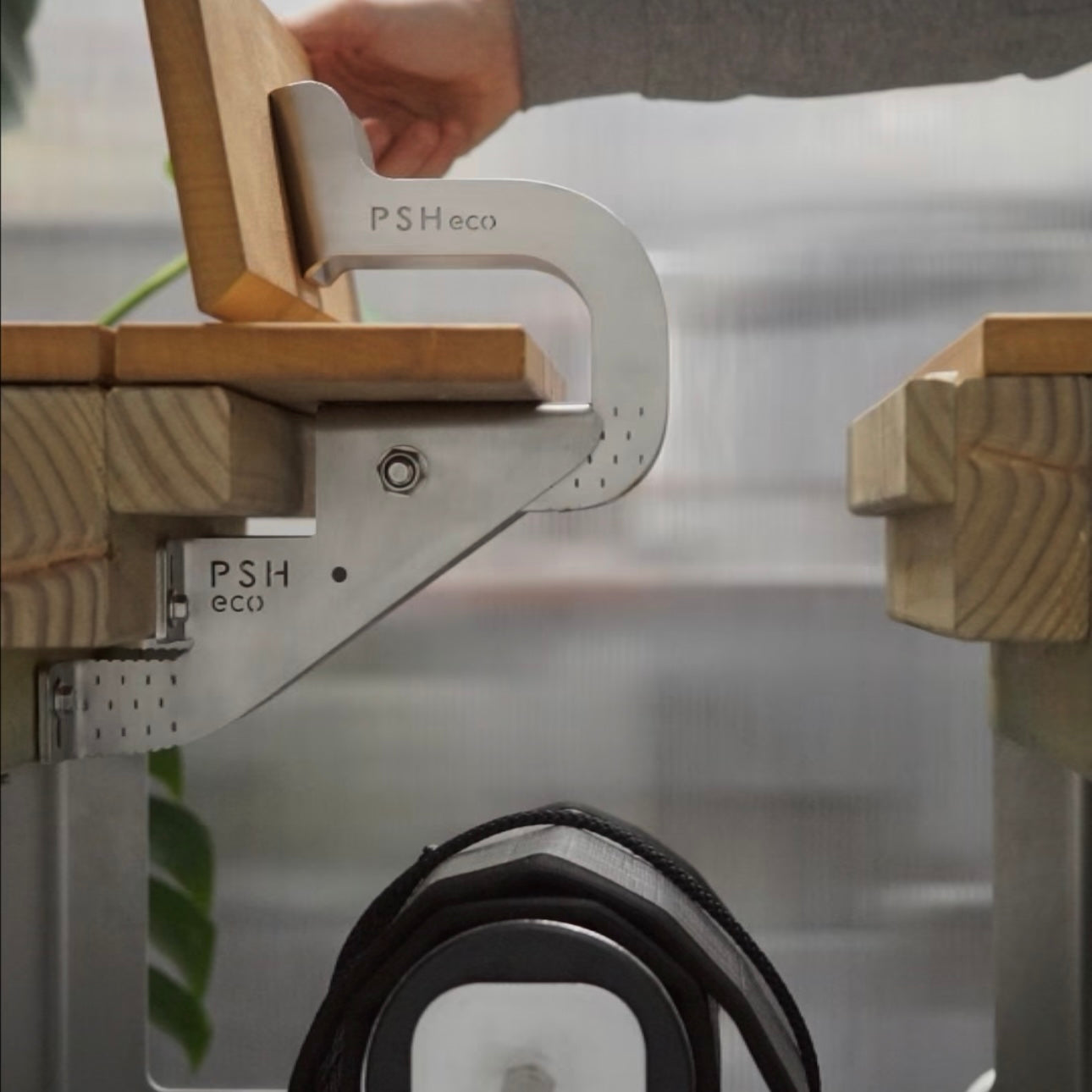

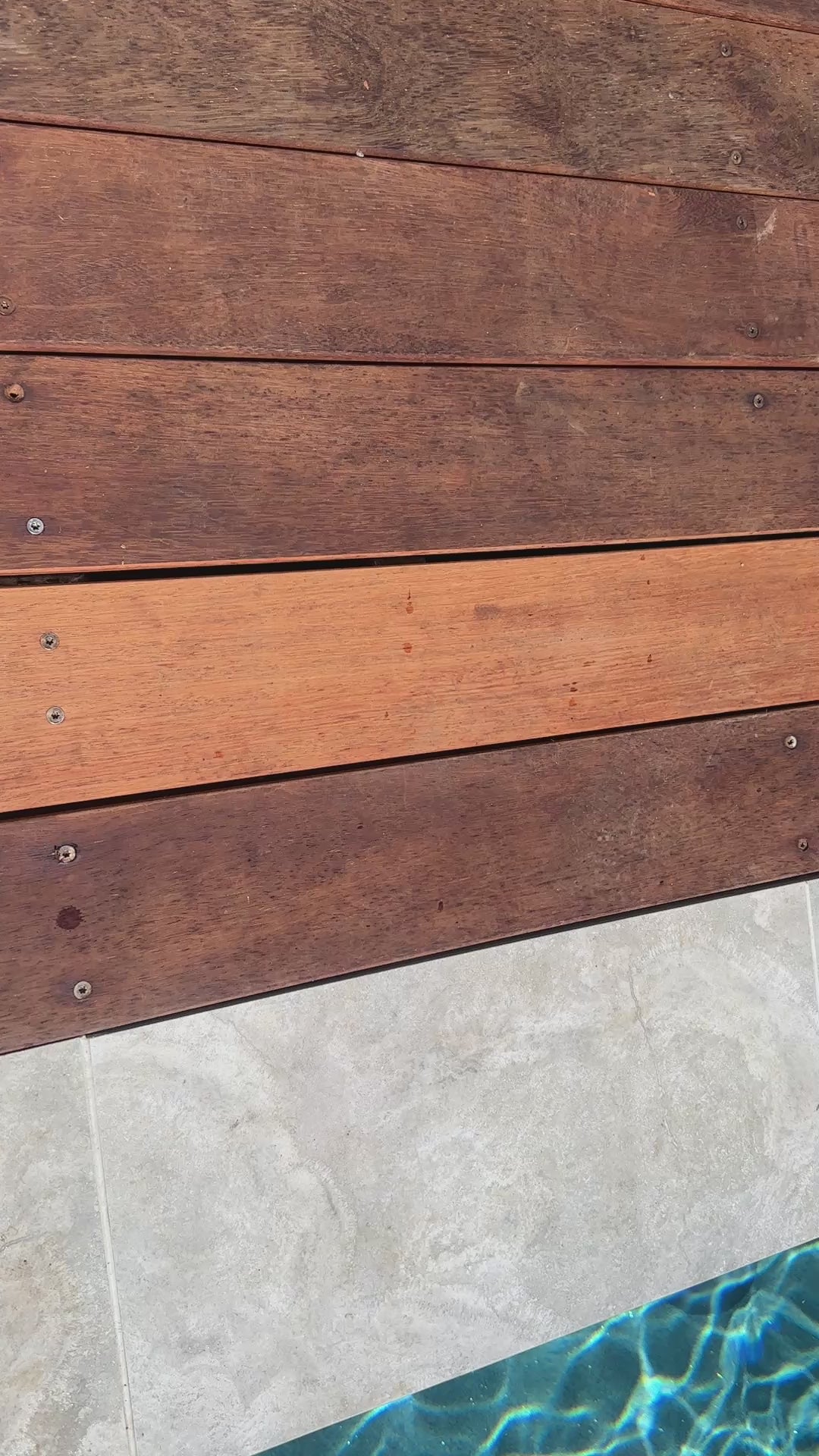

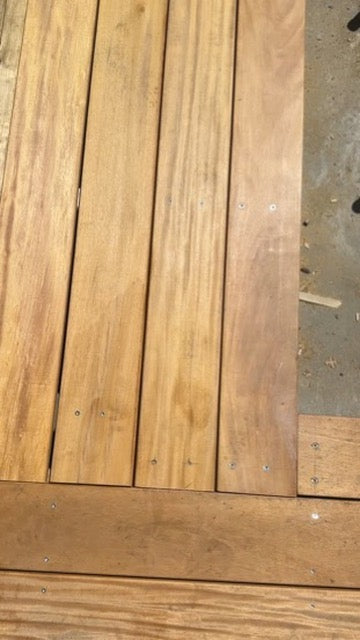

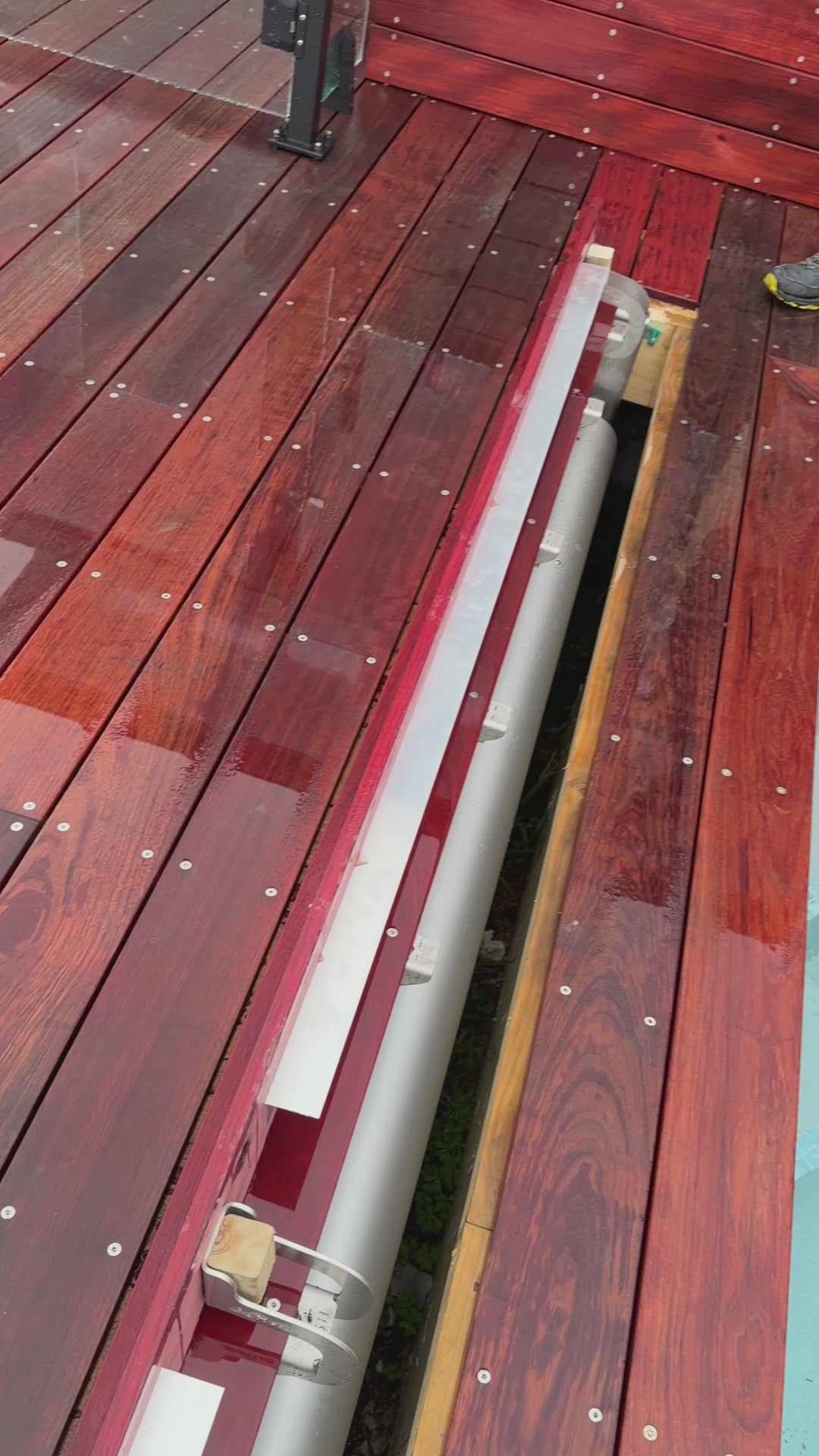

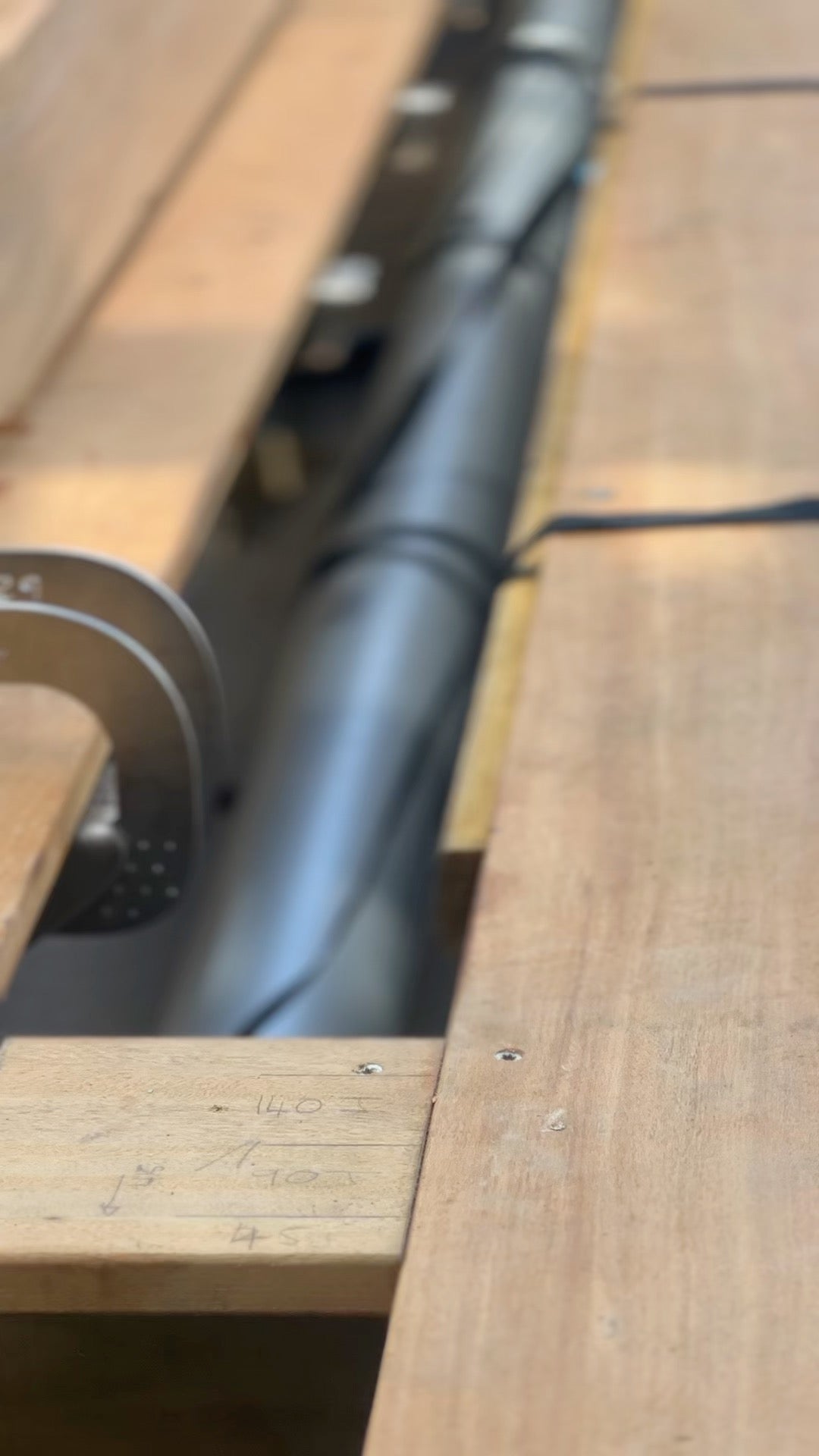

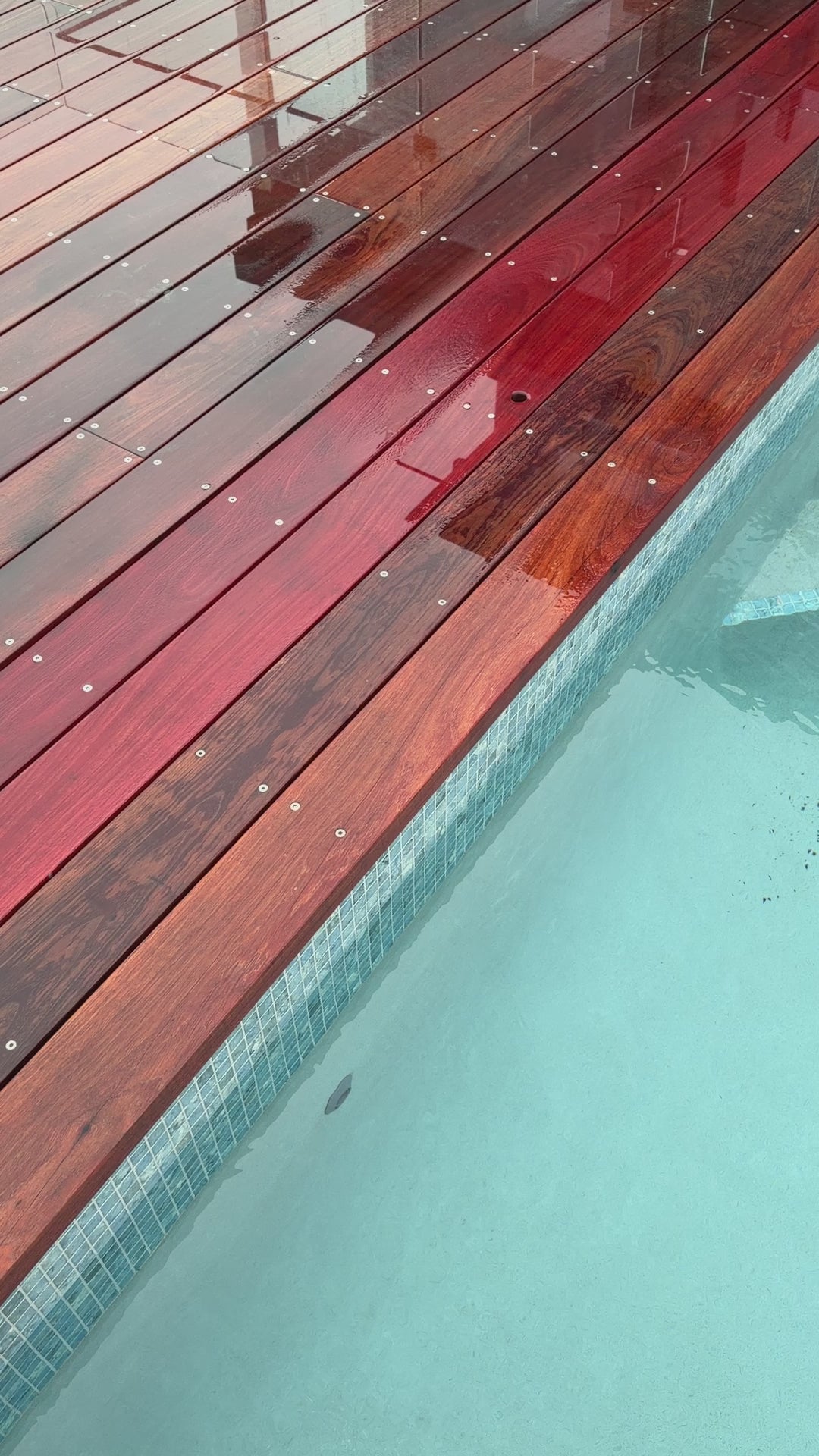

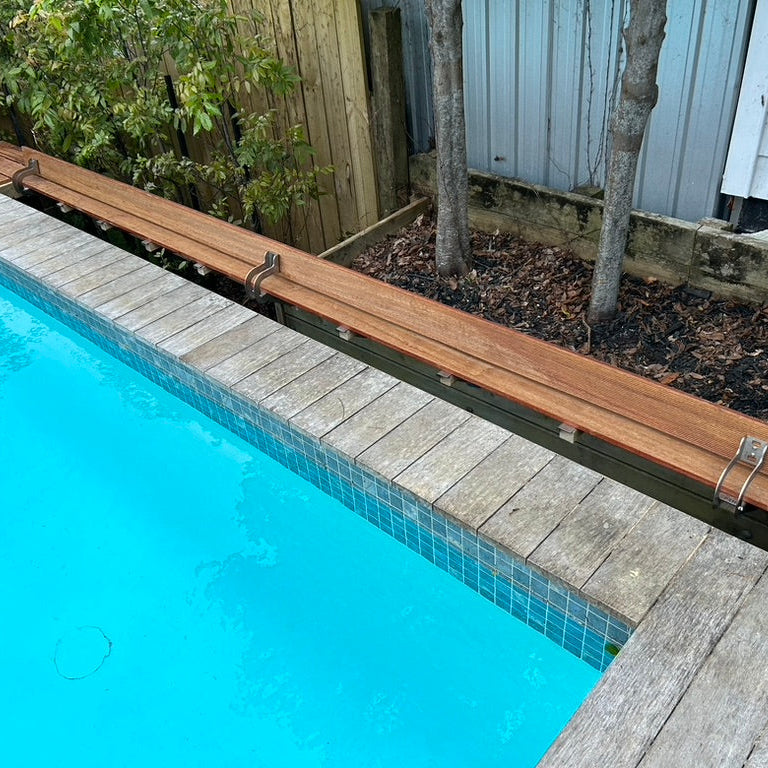

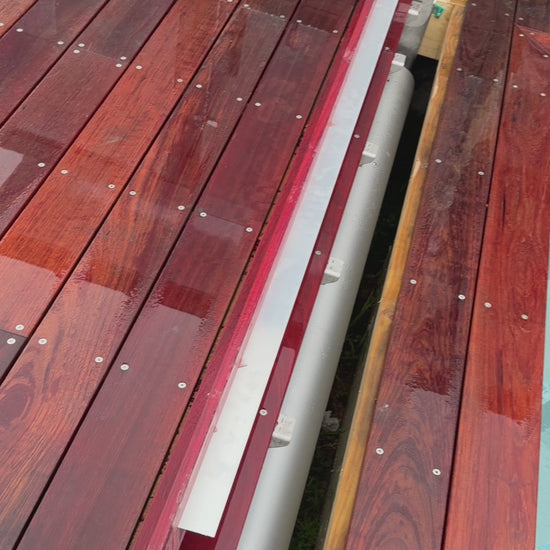

The PSH Eco-Vanishing Hinge Manual Roller is New Zealand's original hidden pool blanket storage system. This innovative finger-lift timber lid system offers effortless, smooth opening and easy installation, tucking your pool blanket completely out of sight under decks, tiles or paving.

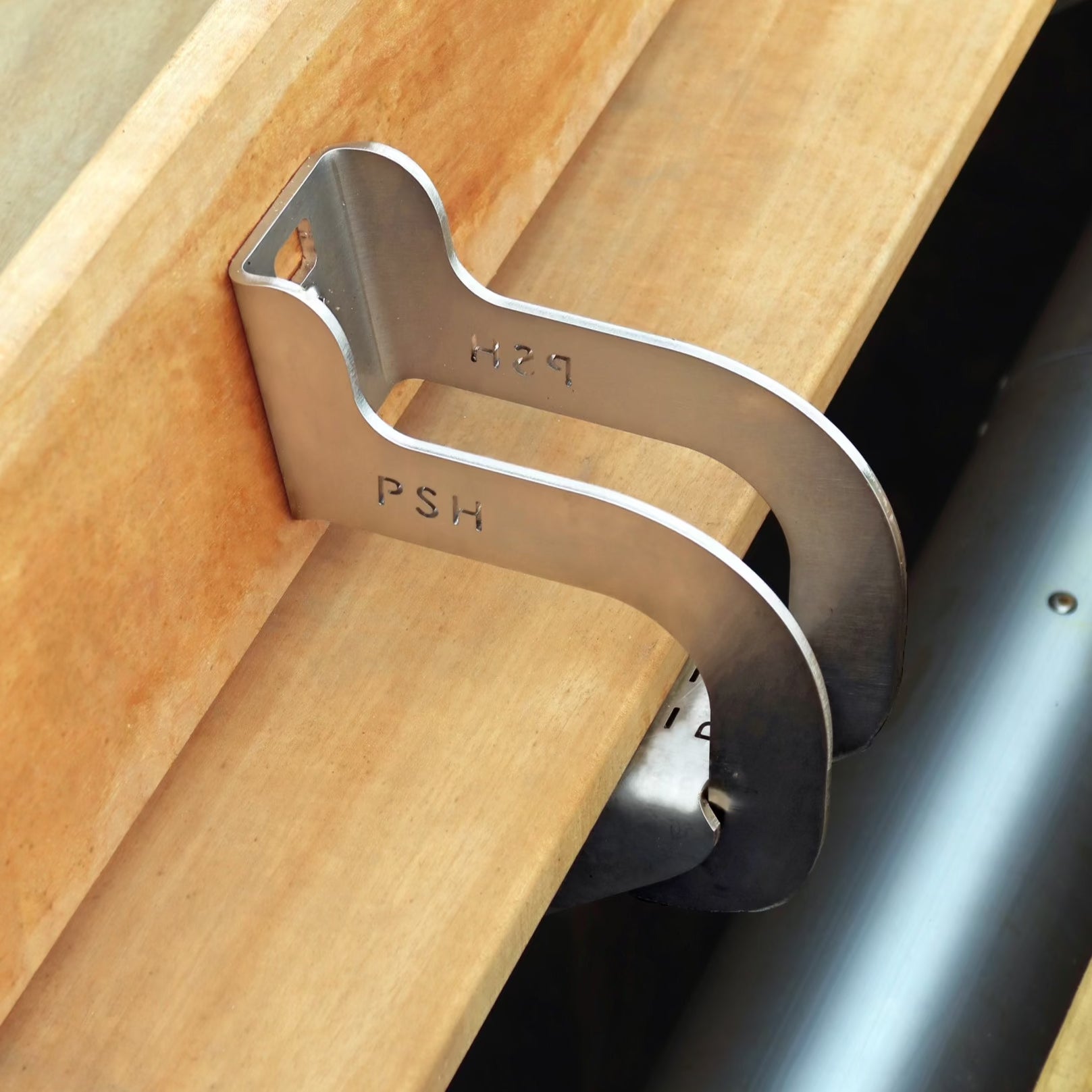

Crafted from heavy-duty 316 stainless steel, it is designed to withstand harsh environments including chlorinated and salt water. Timber lid set + right-angle gear drive unit. Patent pending.
Key features

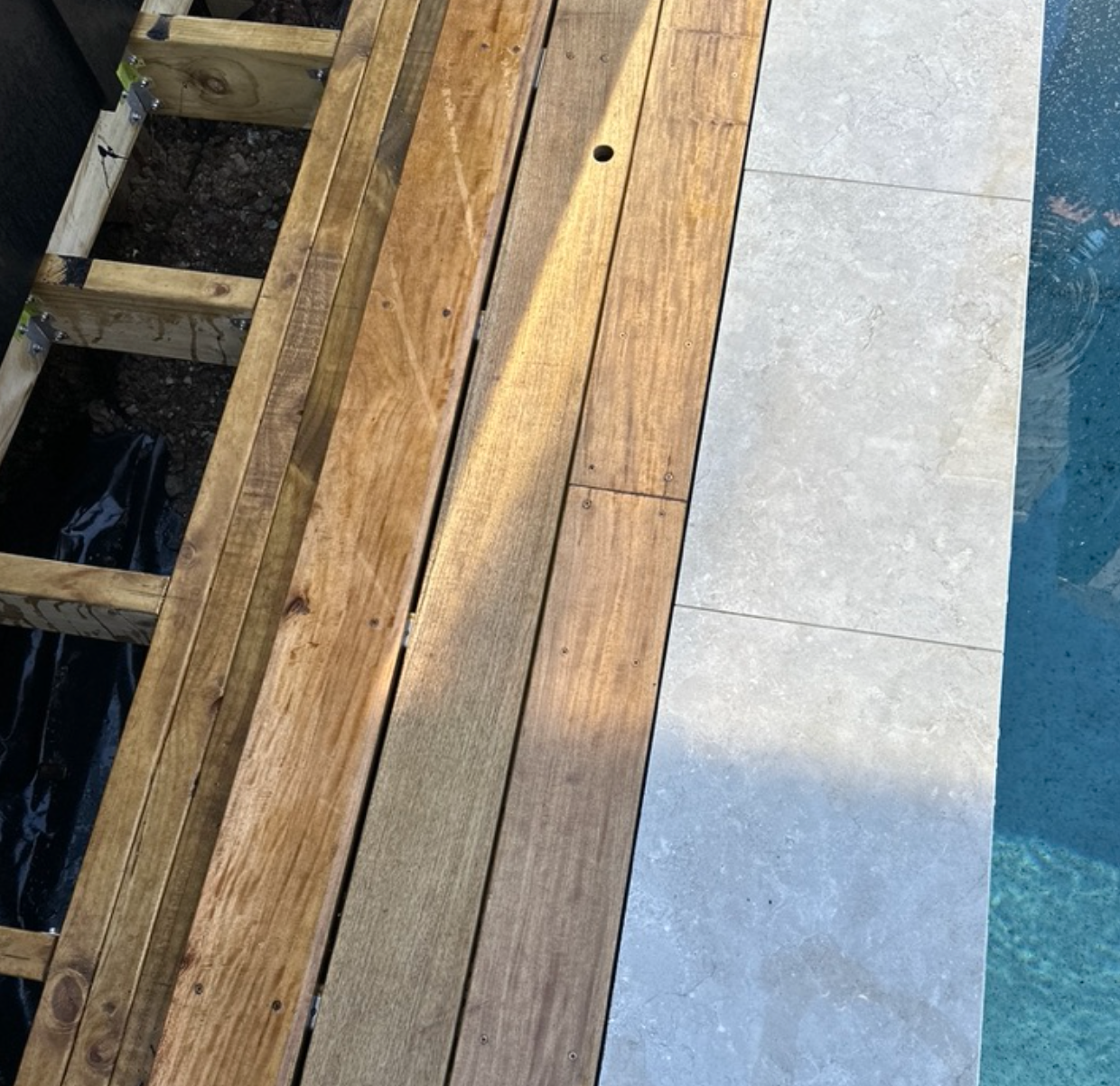

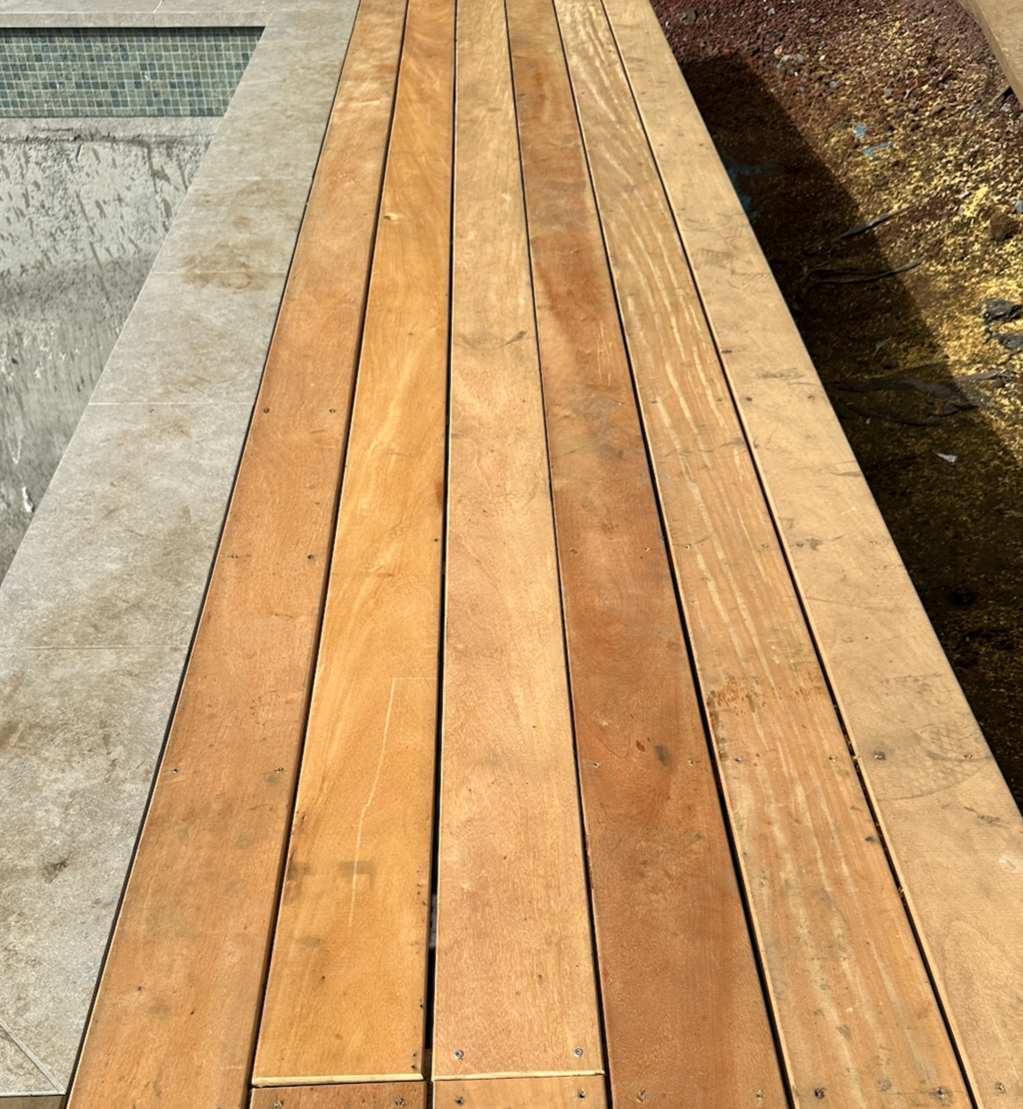

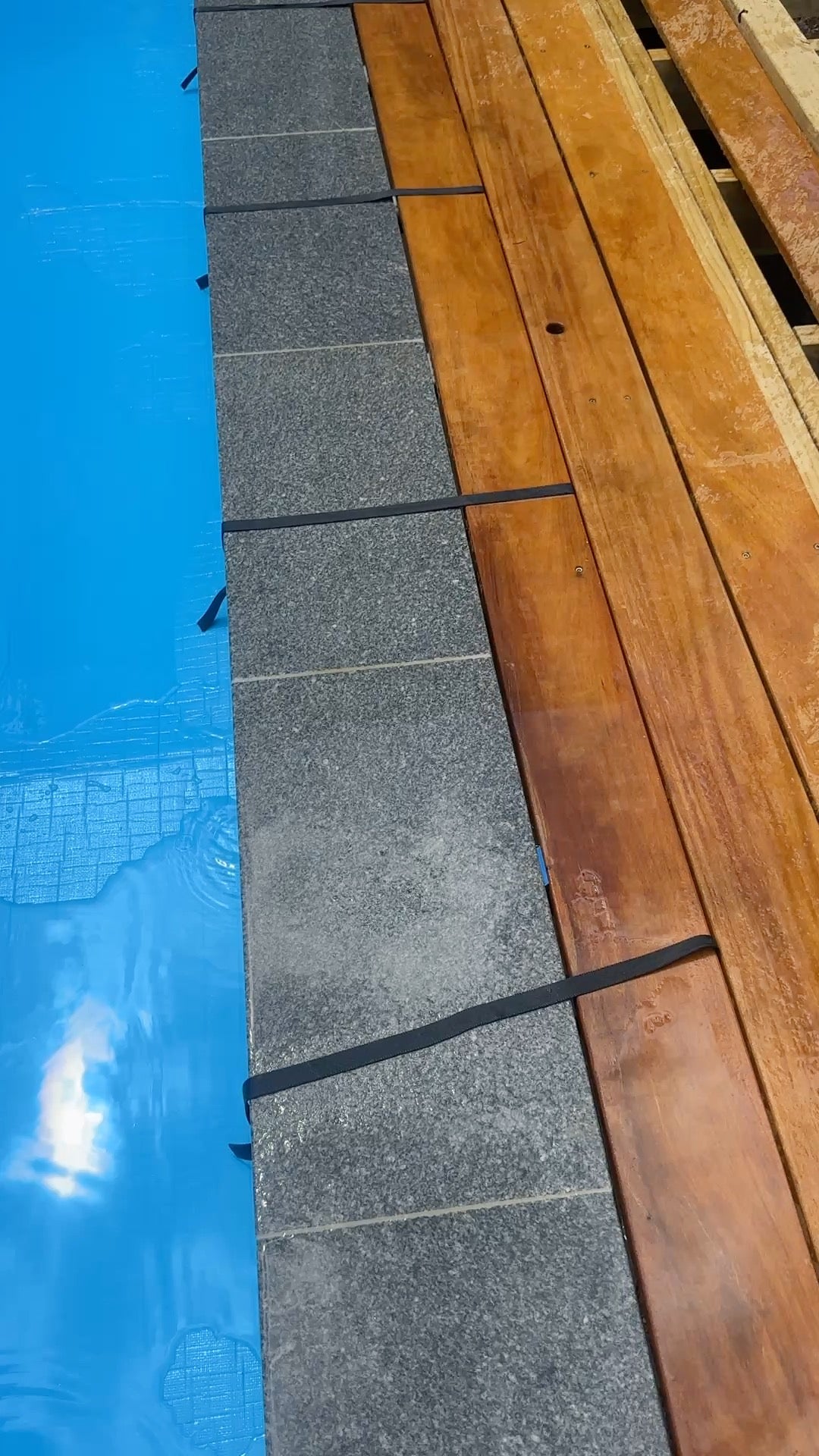

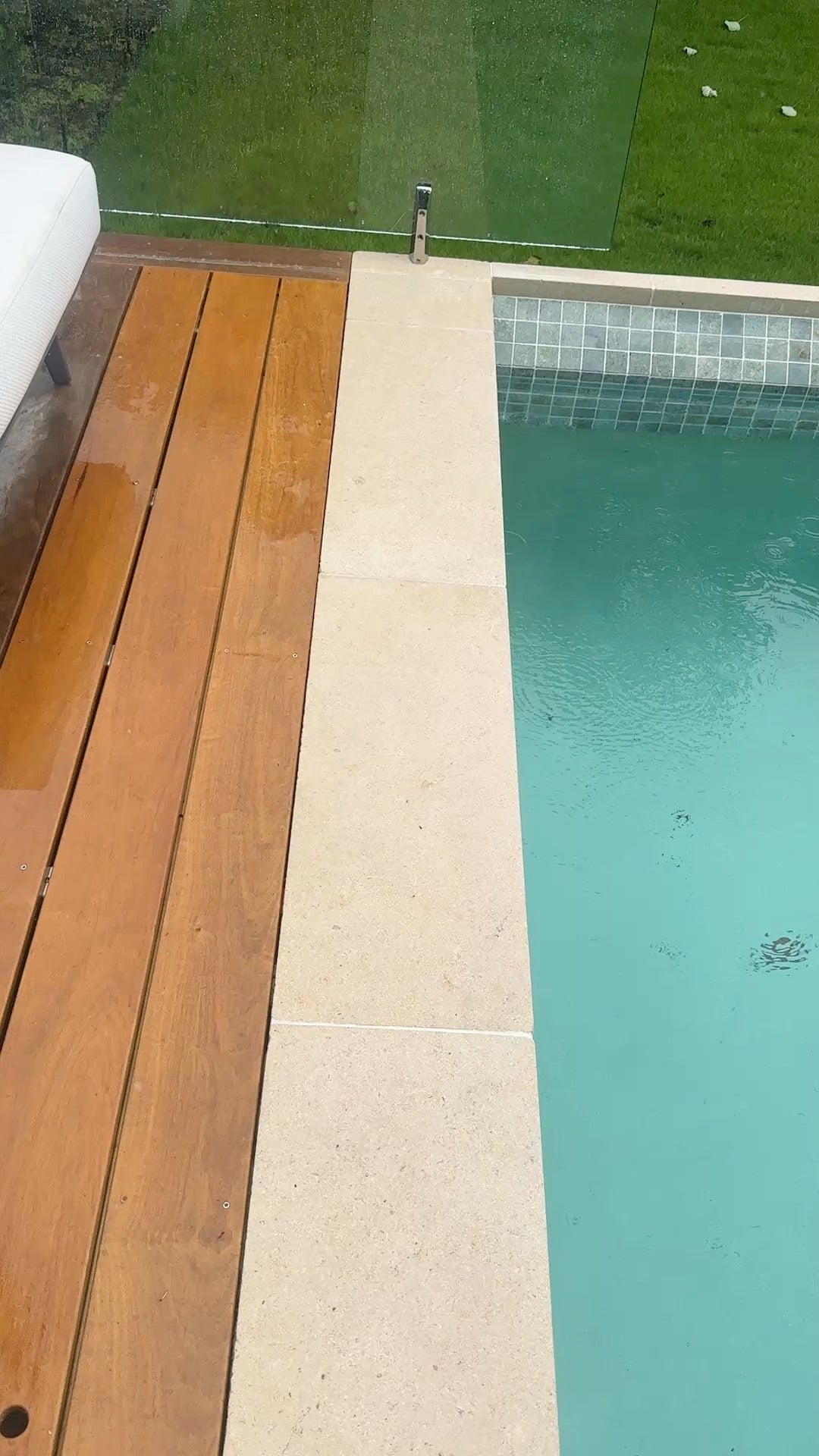

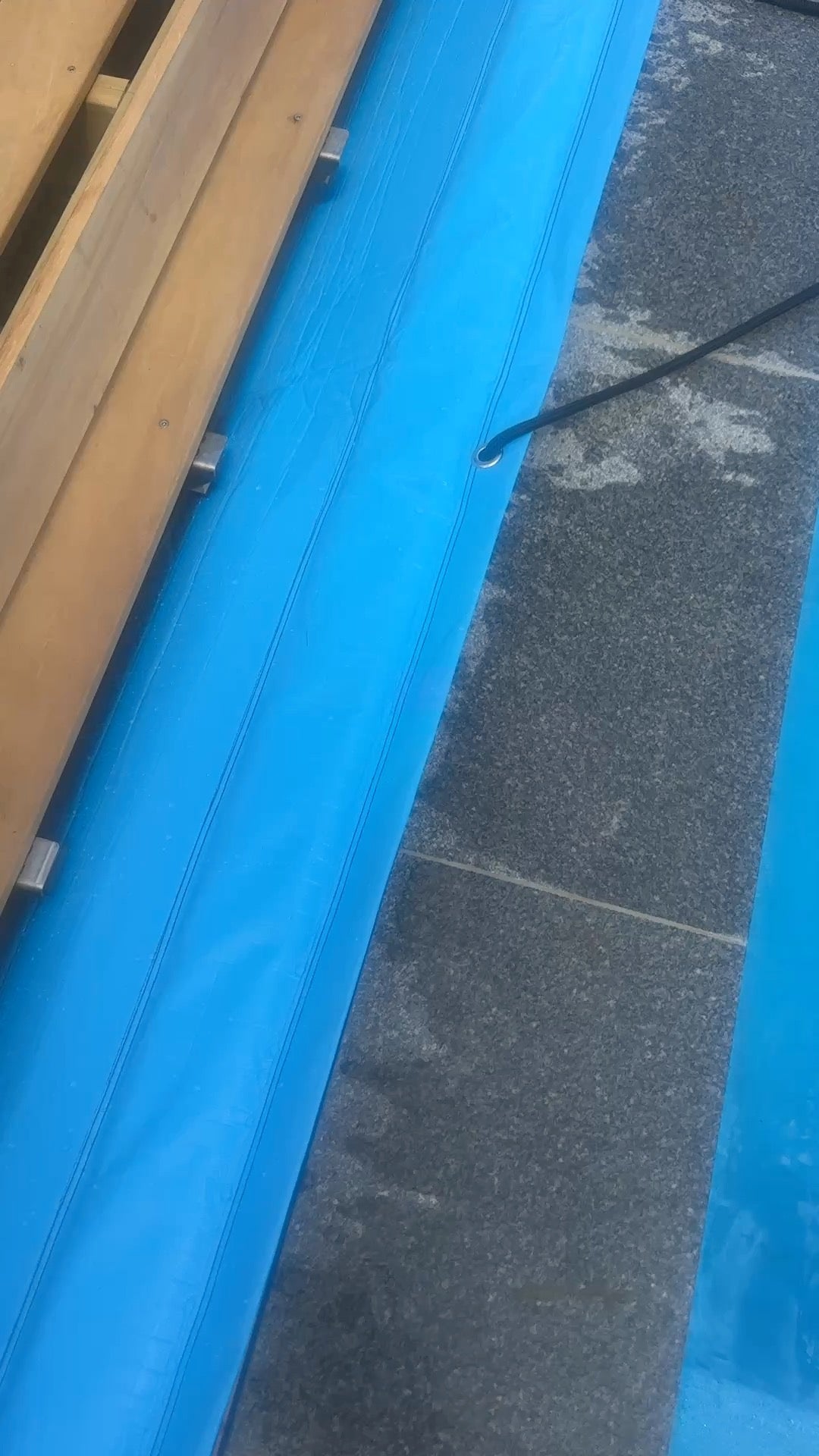

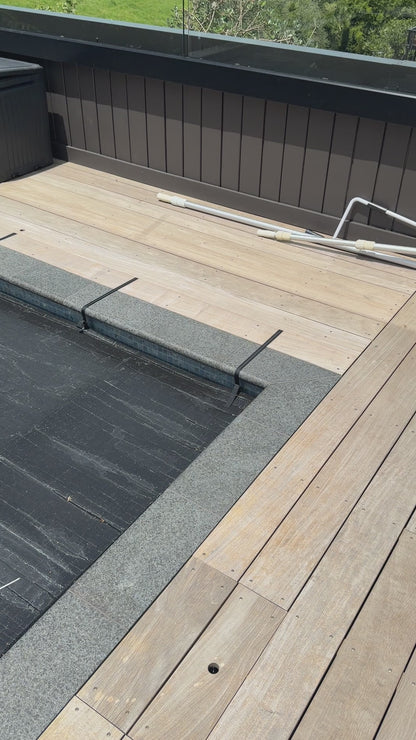

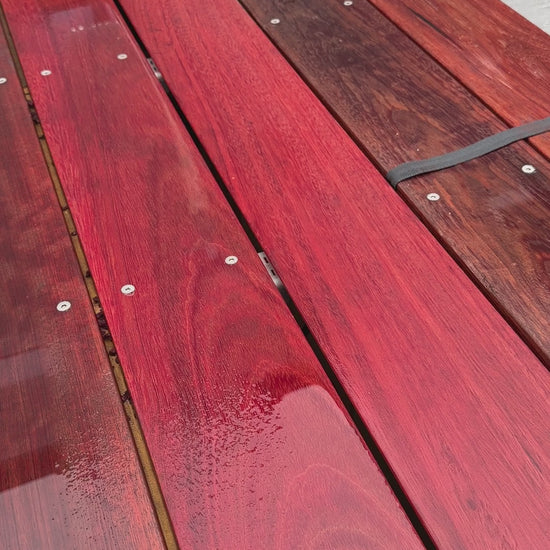

Concealed design – stores pool blankets invisibly under decking or tile
Heavy-duty construction – stainless and marine-grade components
Easy manual operation – smooth rolling with no power required
Low maintenance – no motors, no rust, no fuss
Designed & fabricated in NZ – quality craftsmanship, local support
Compatible with manual or automatic thermal blanket systems; custom fabrication available
Price includes

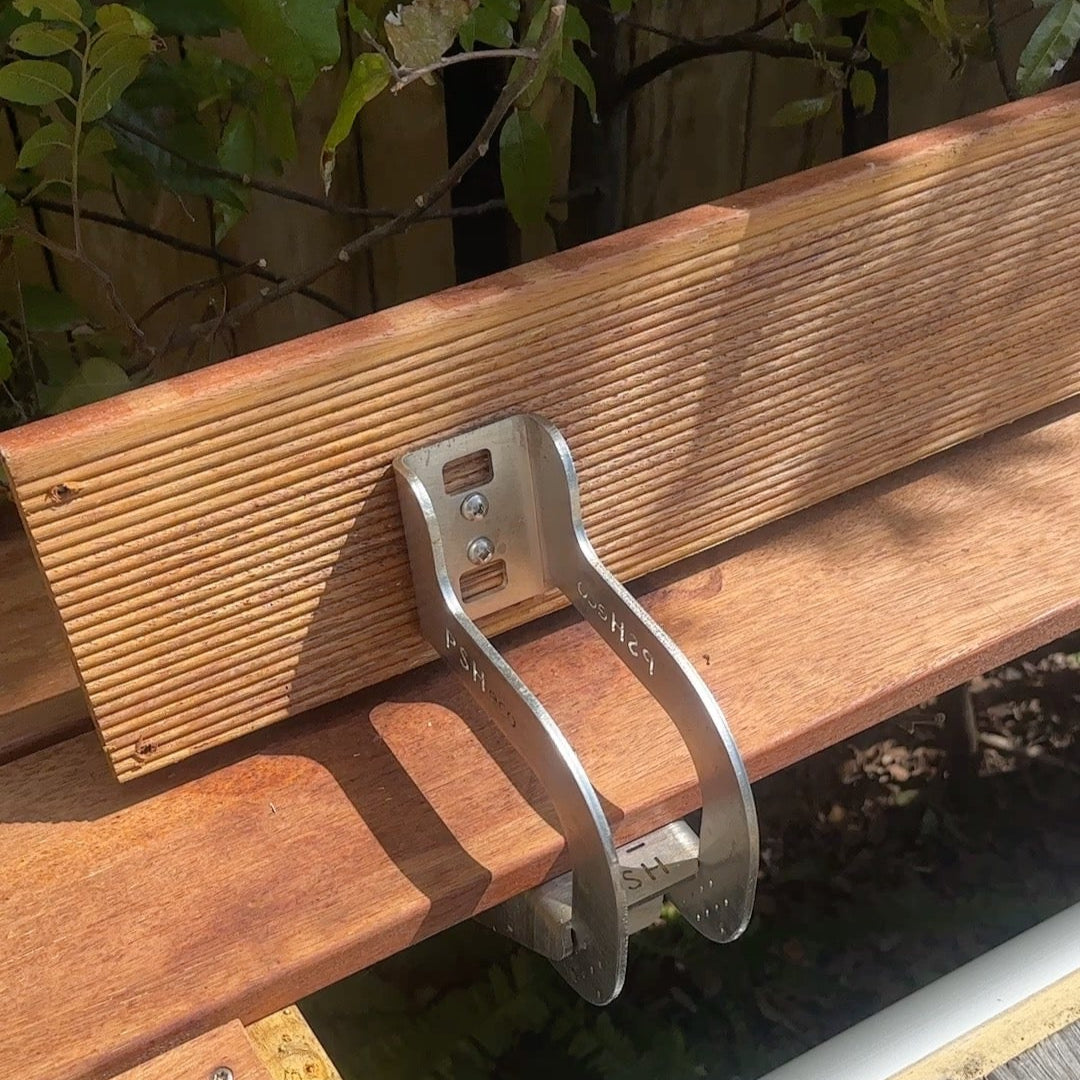

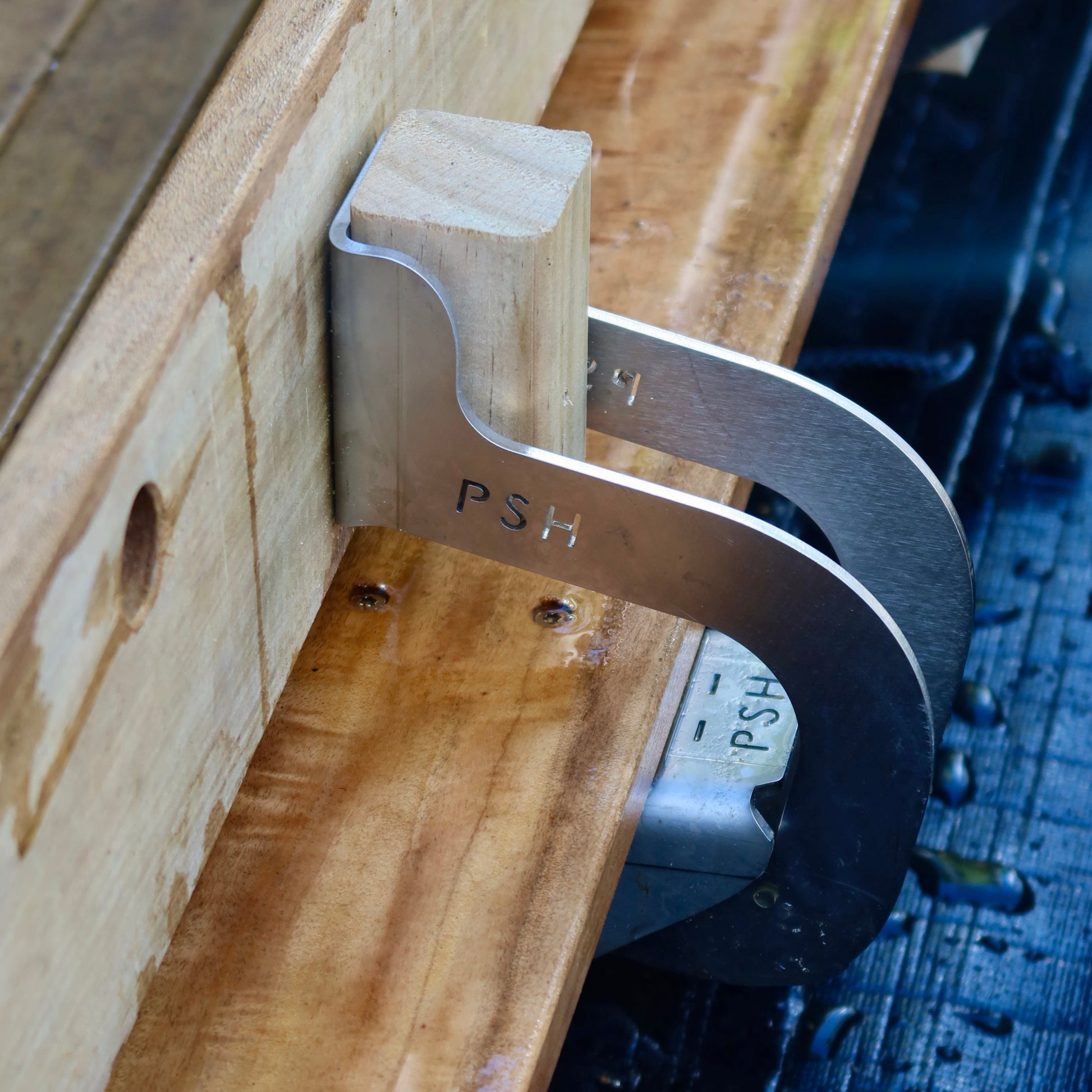

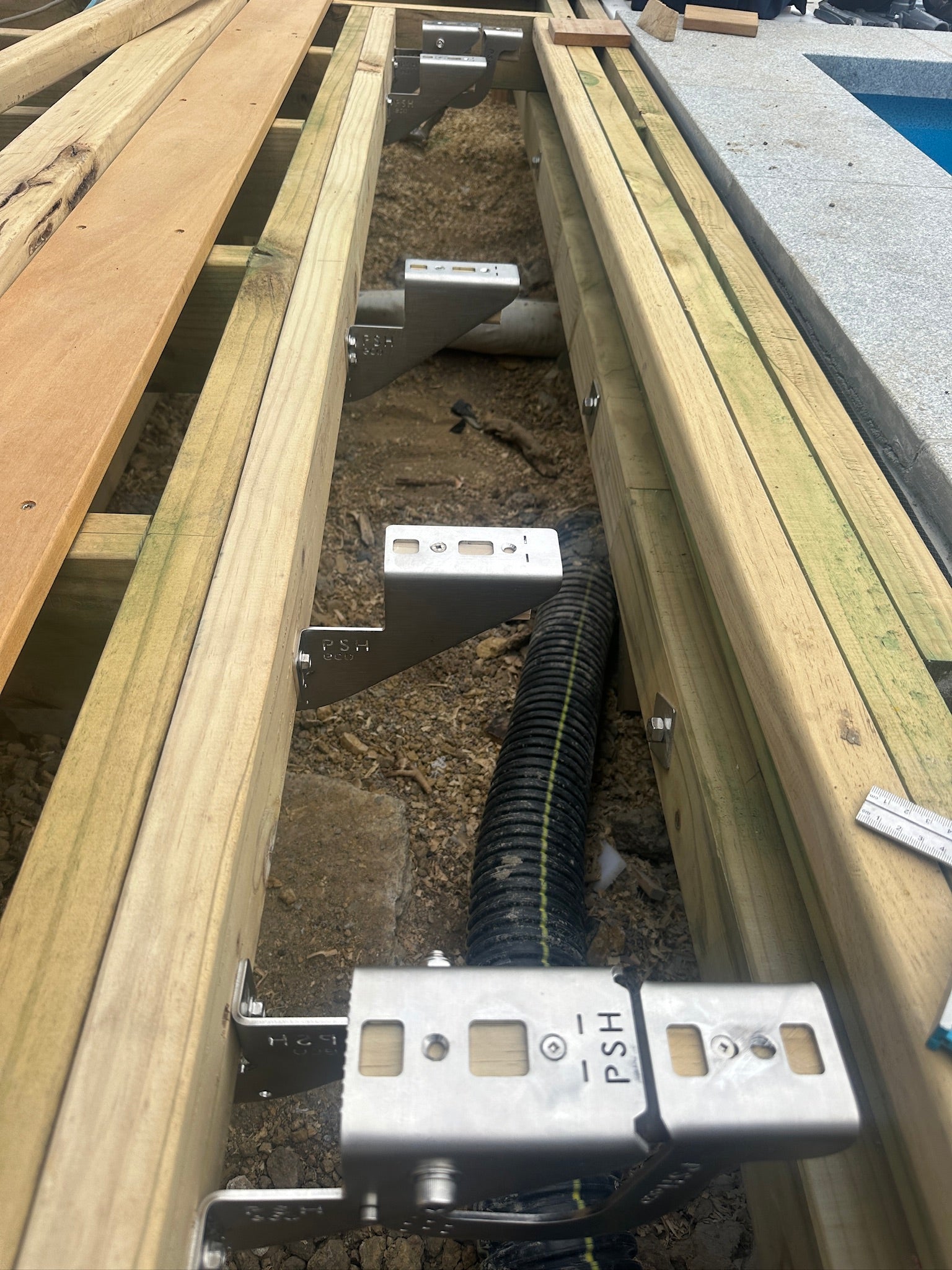

Chassis hinge set

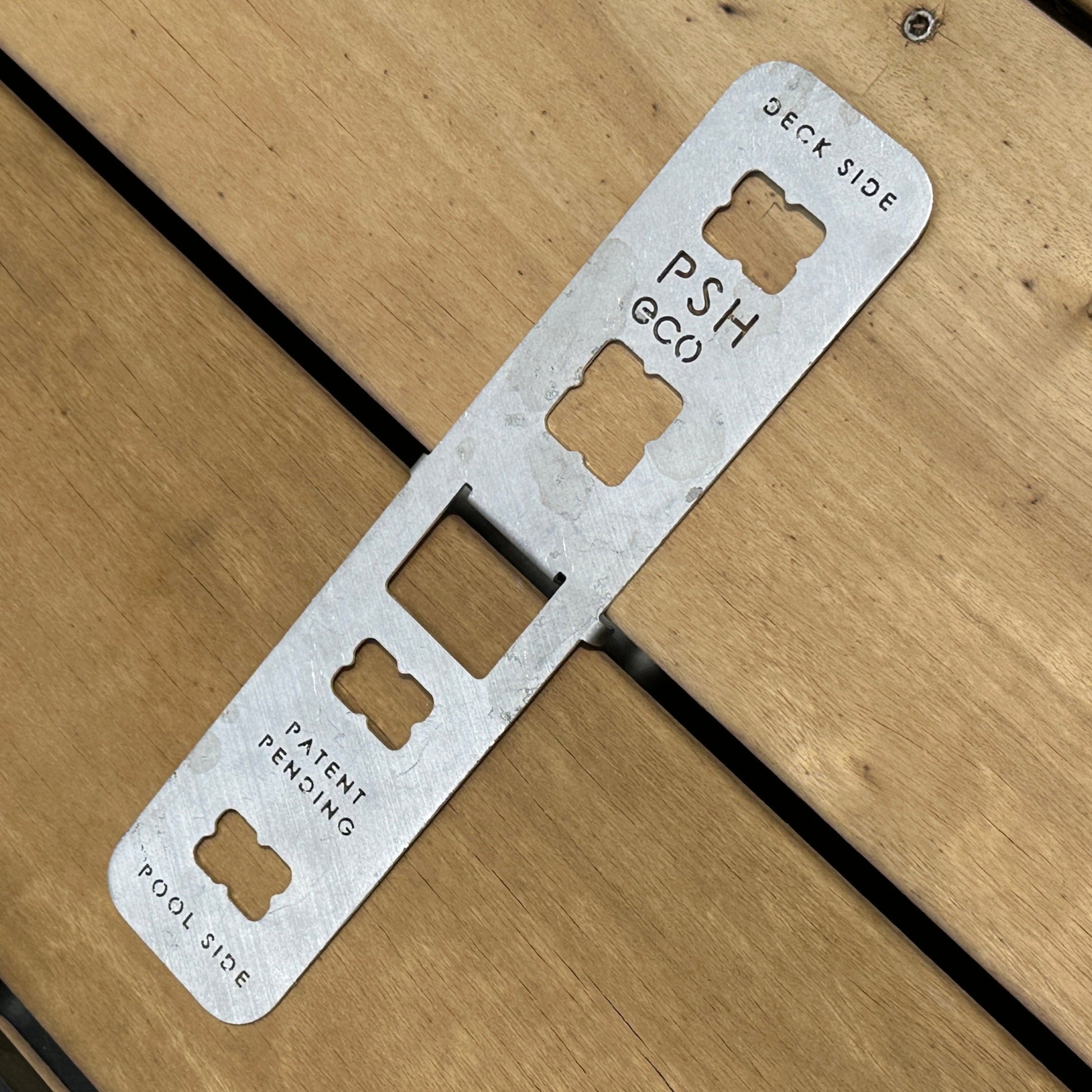

Brackets
GDT 114mm gear drive and bracket plate
Handle winder
316 stainless steel fixings
Timber is NOT included – use any 120mm–140mm decking timber.

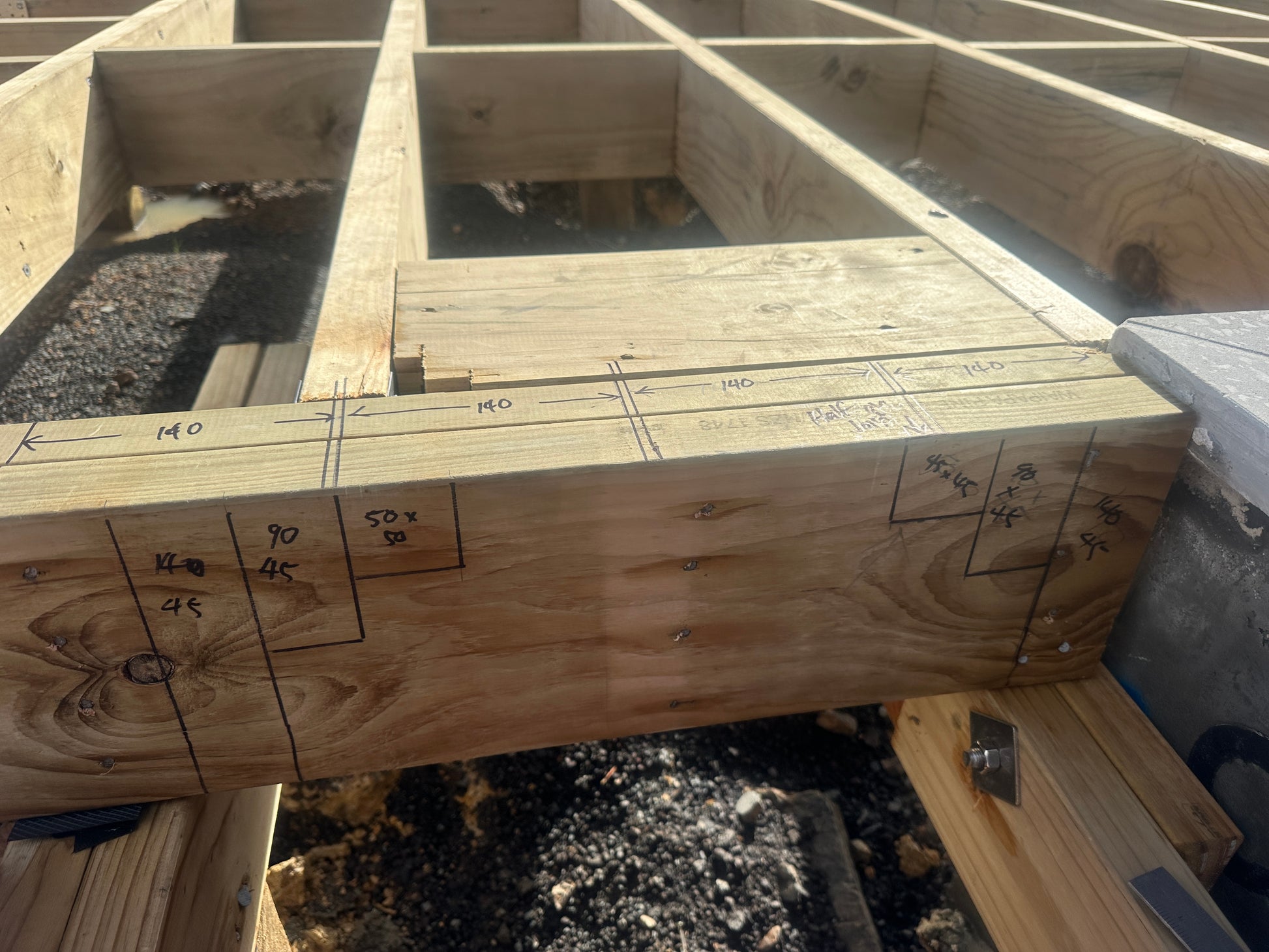

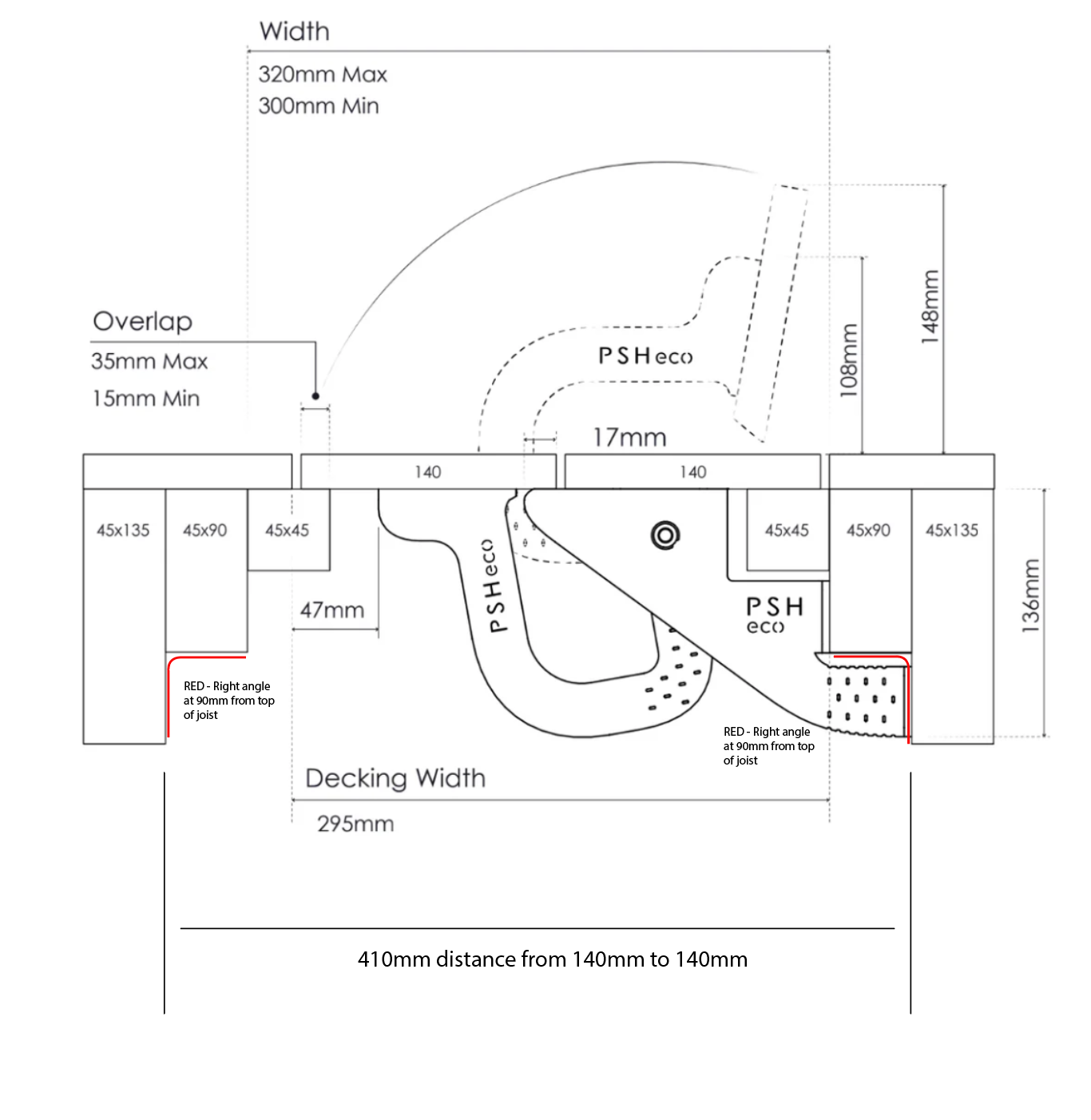

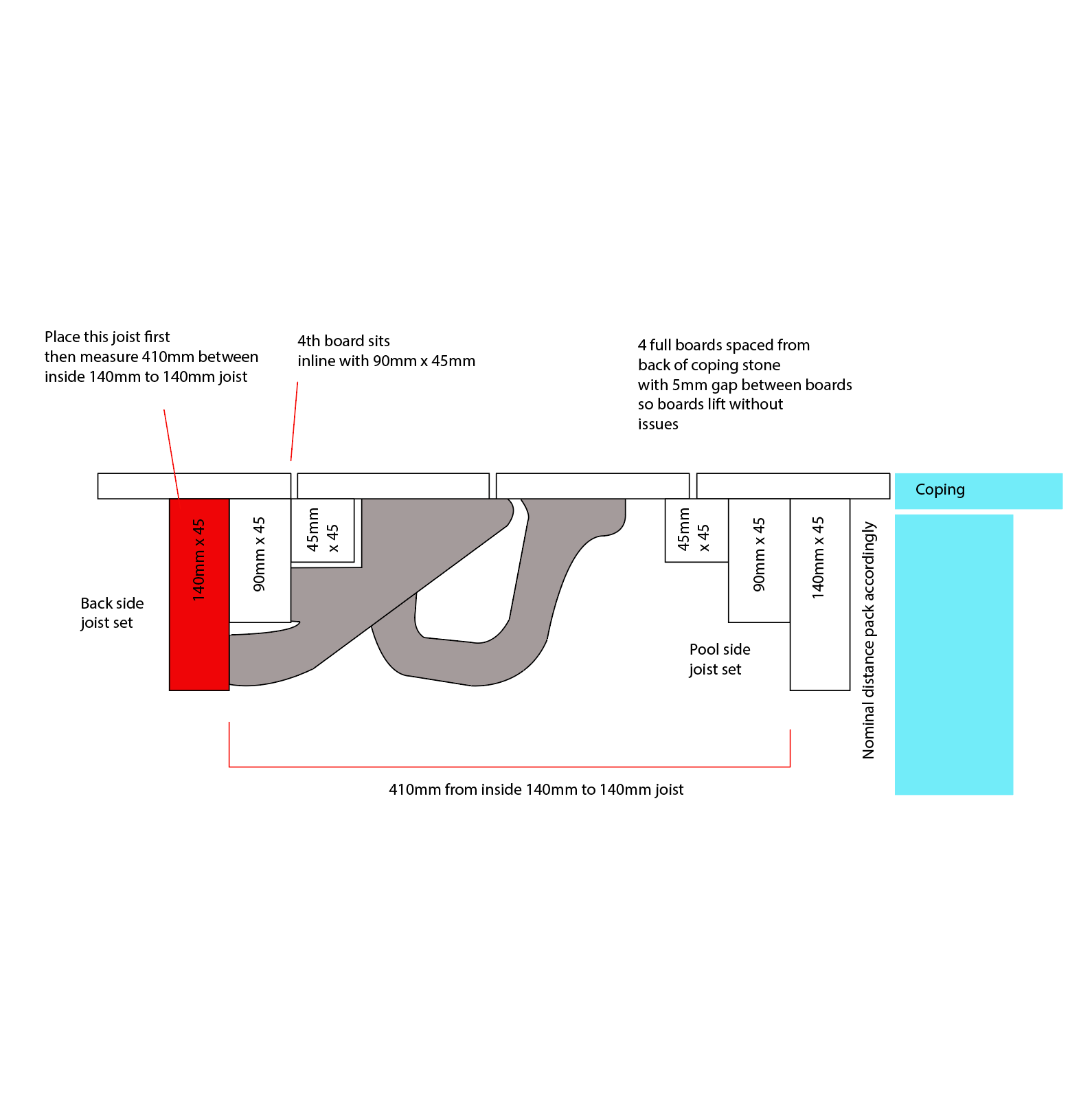

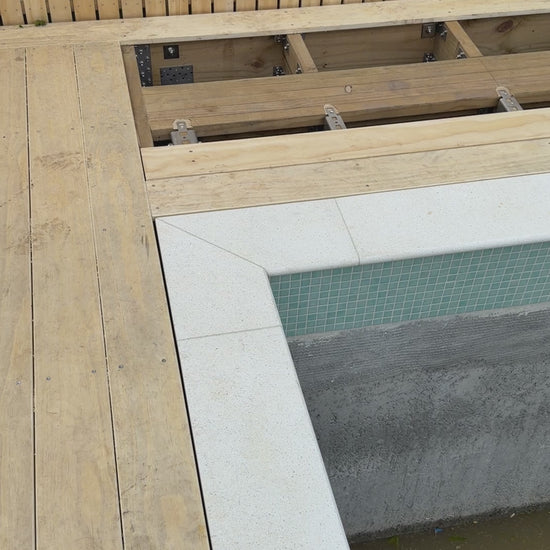

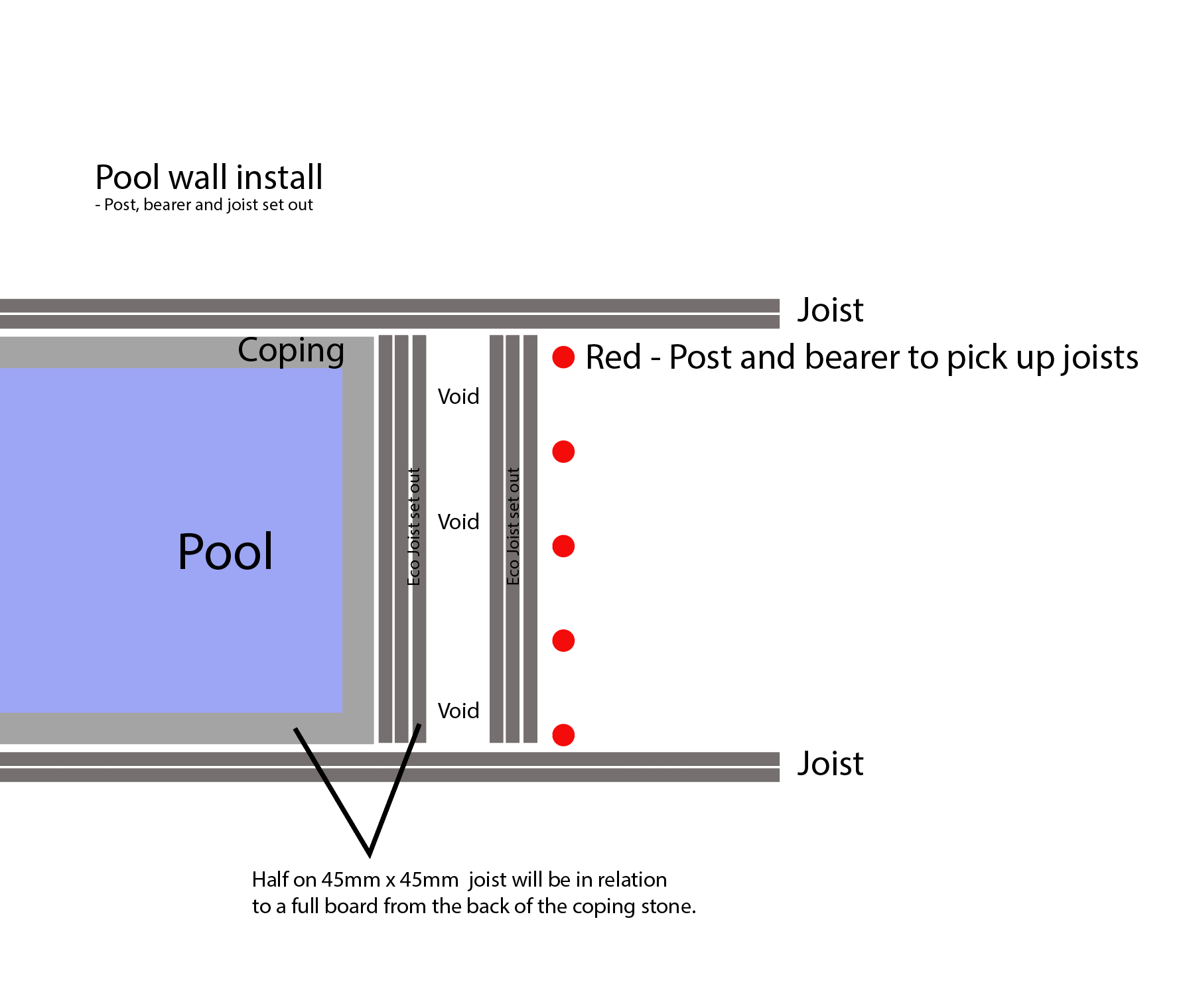

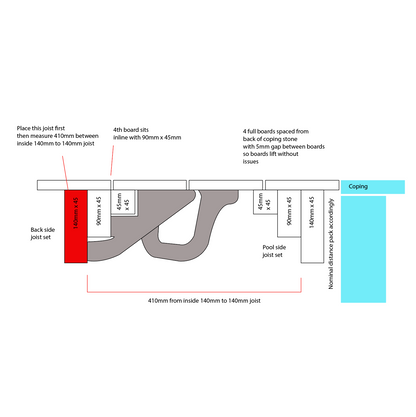

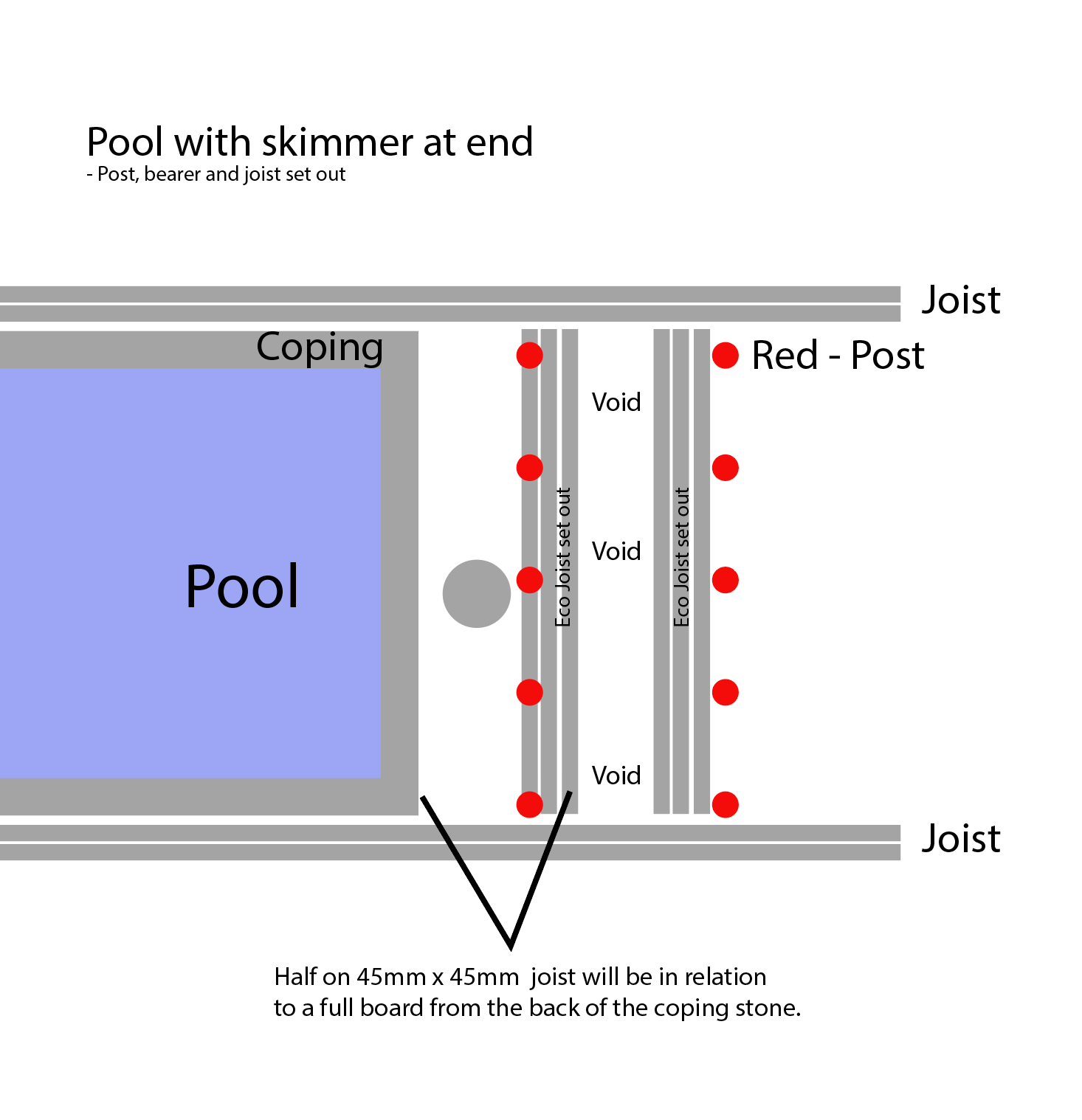

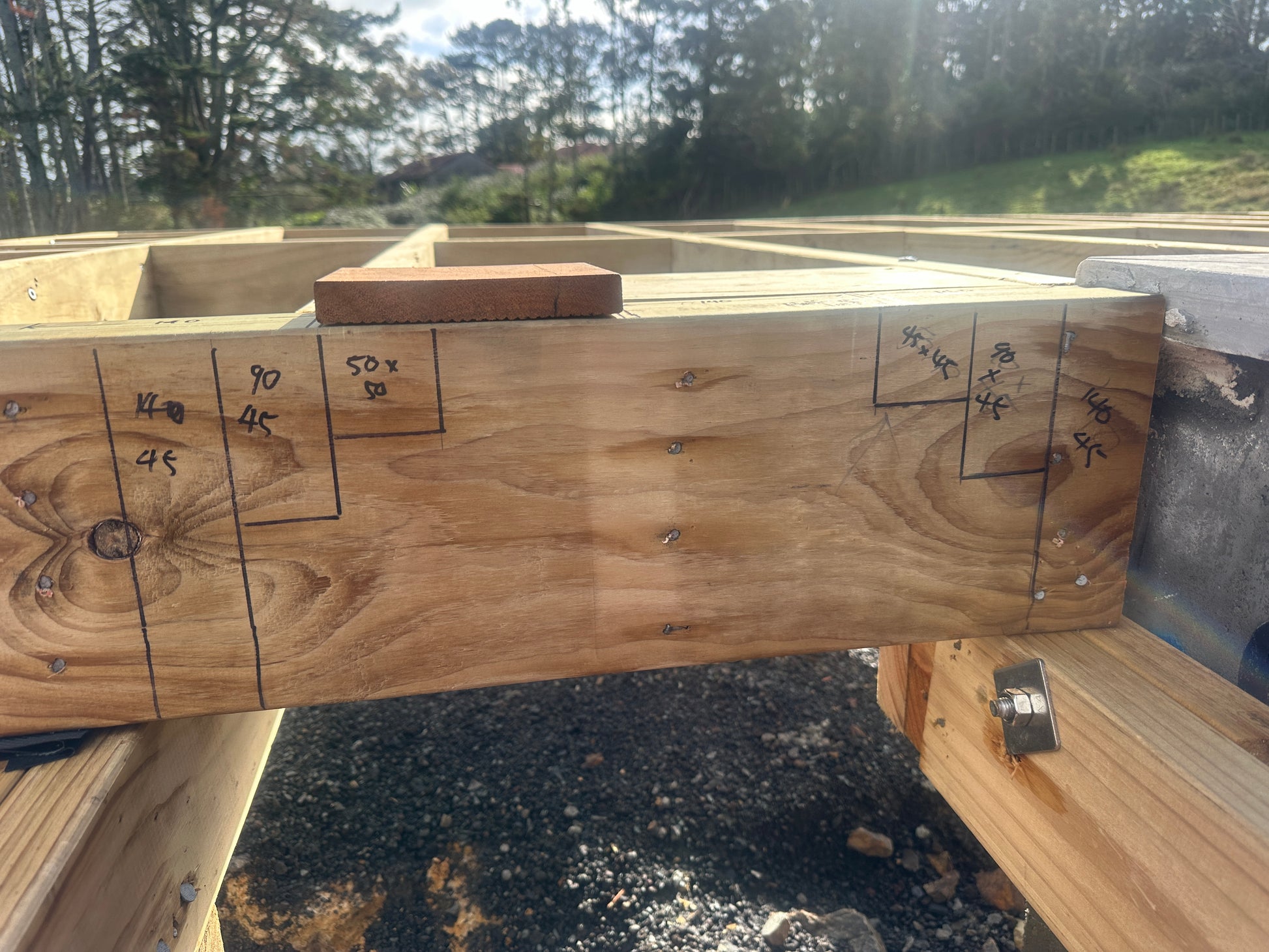

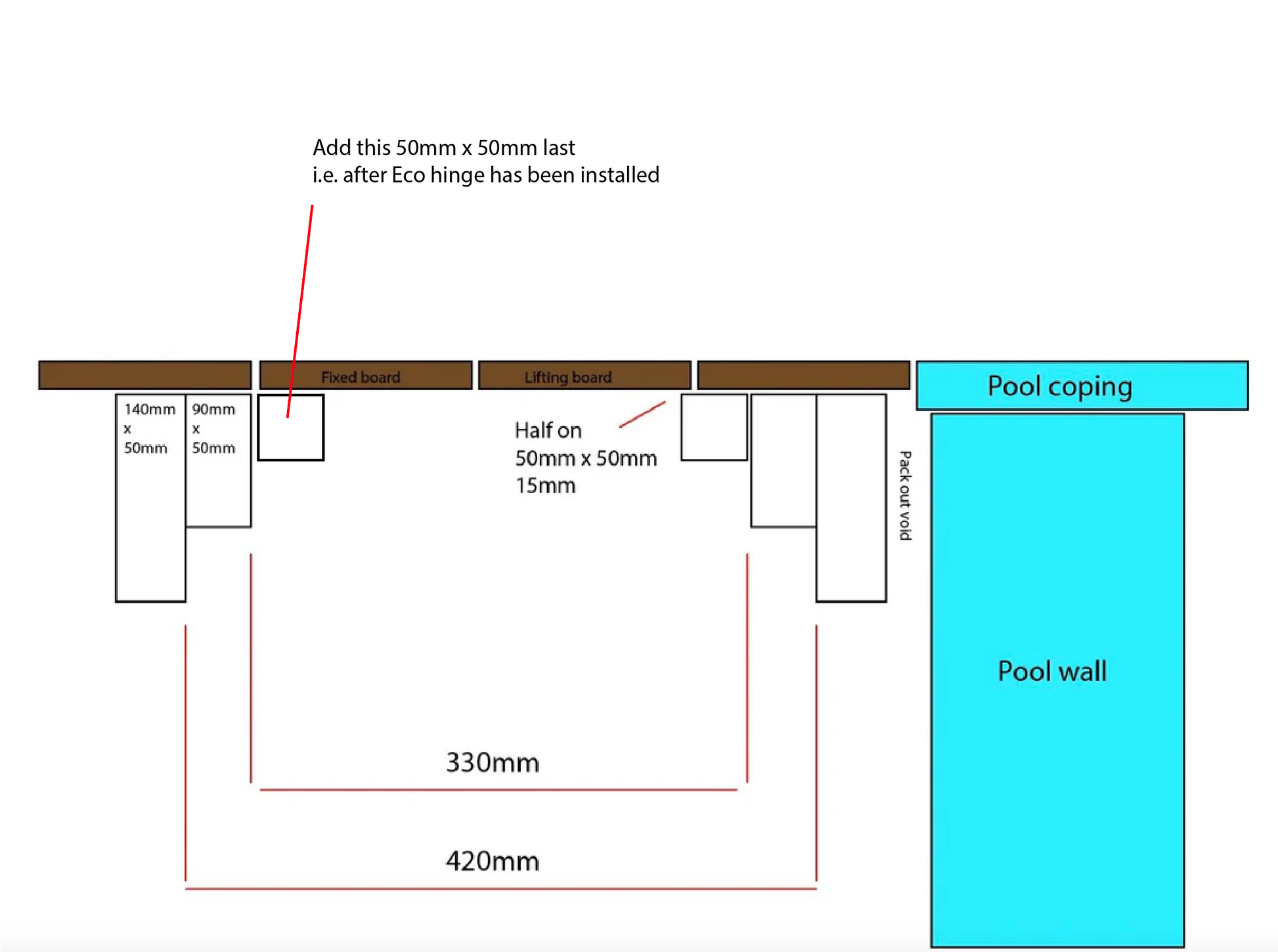

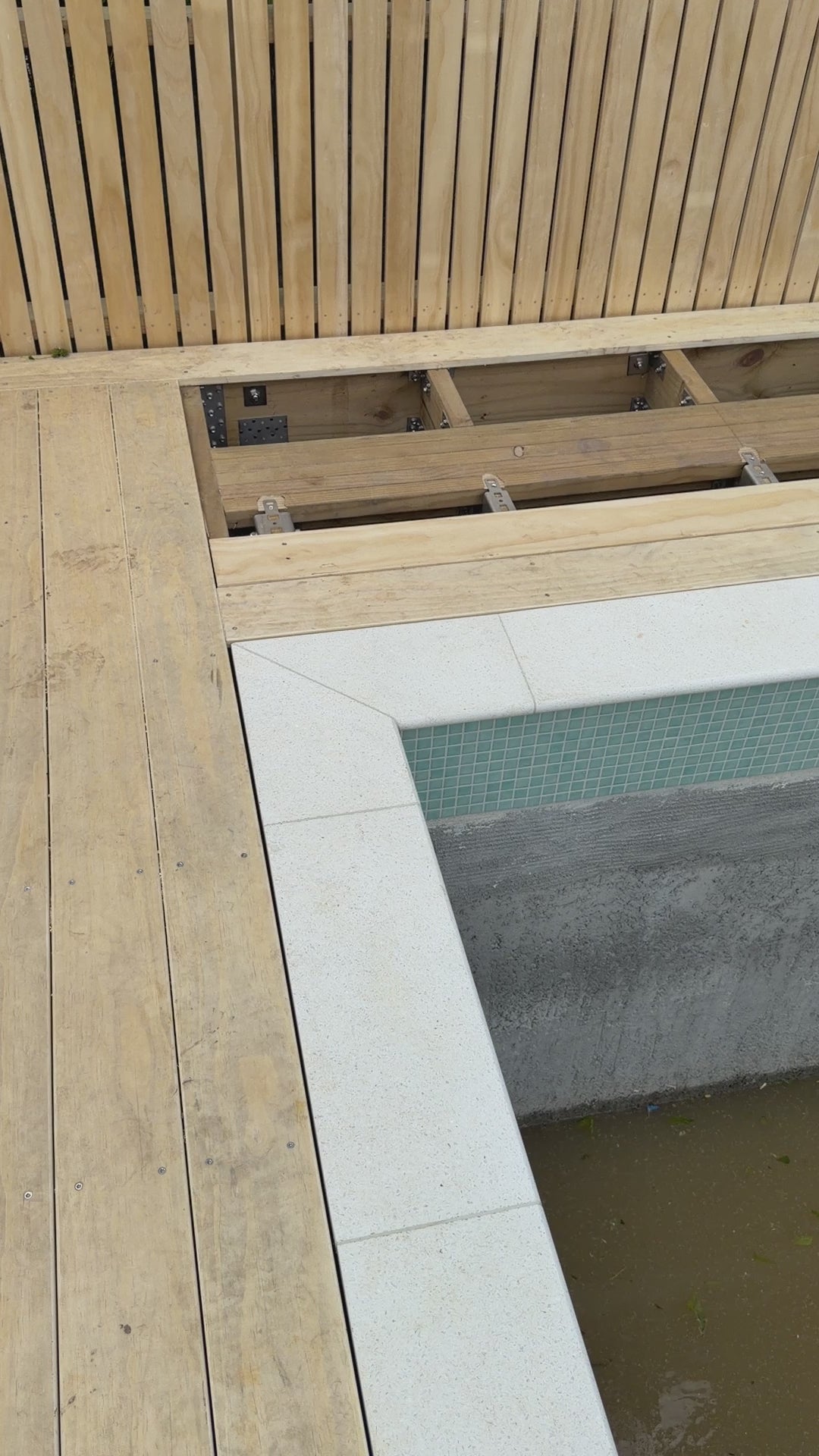

Joist set-out for thinner decking boards
Change inside joist to inside joist detail as follows:
140mm board – inside to inside 140mm to 140mm = 410mm
135mm board – inside to inside 140mm to 140mm = 400mm
110mm board – inside to inside 140mm to 140mm = 350mm

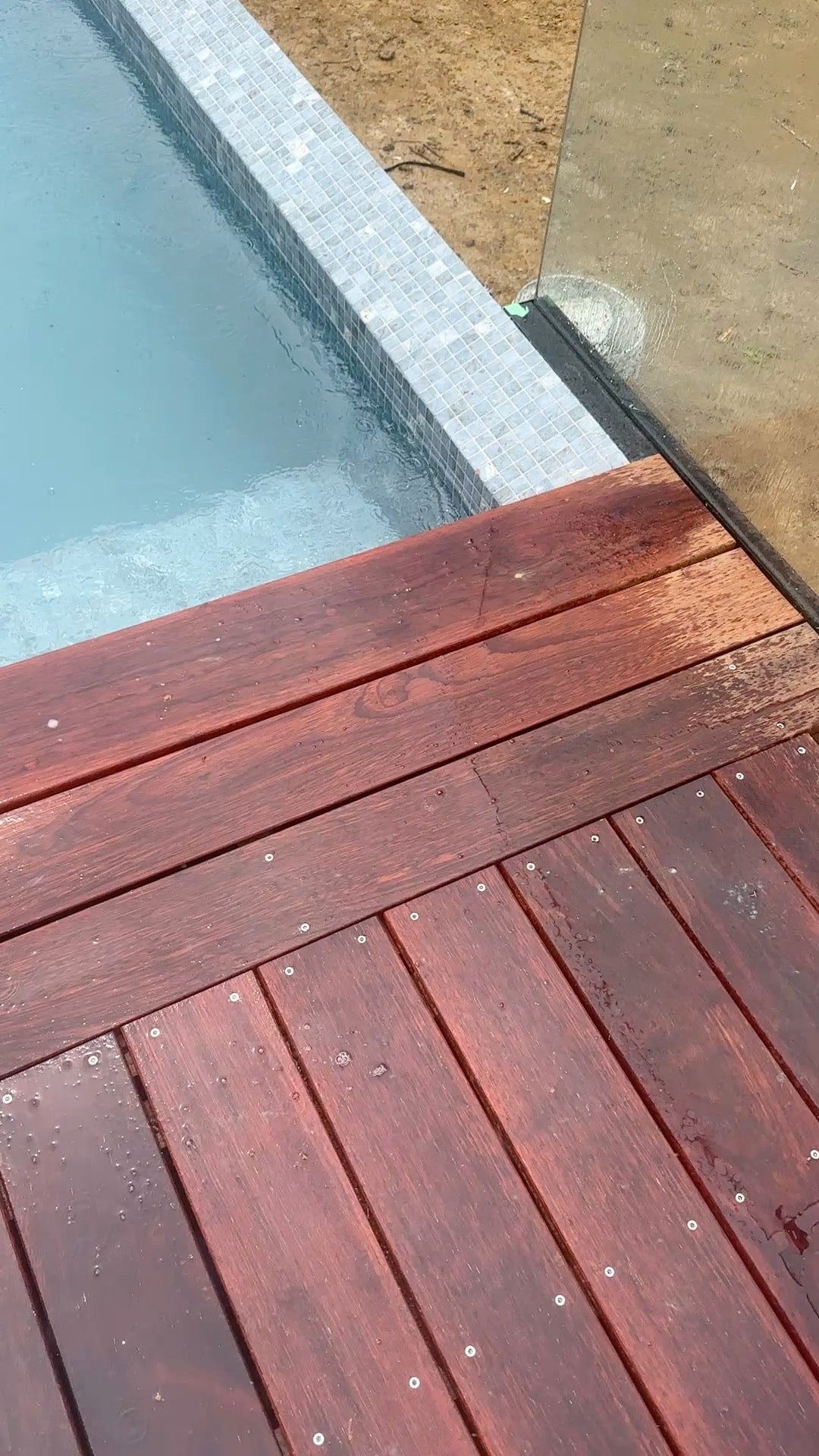

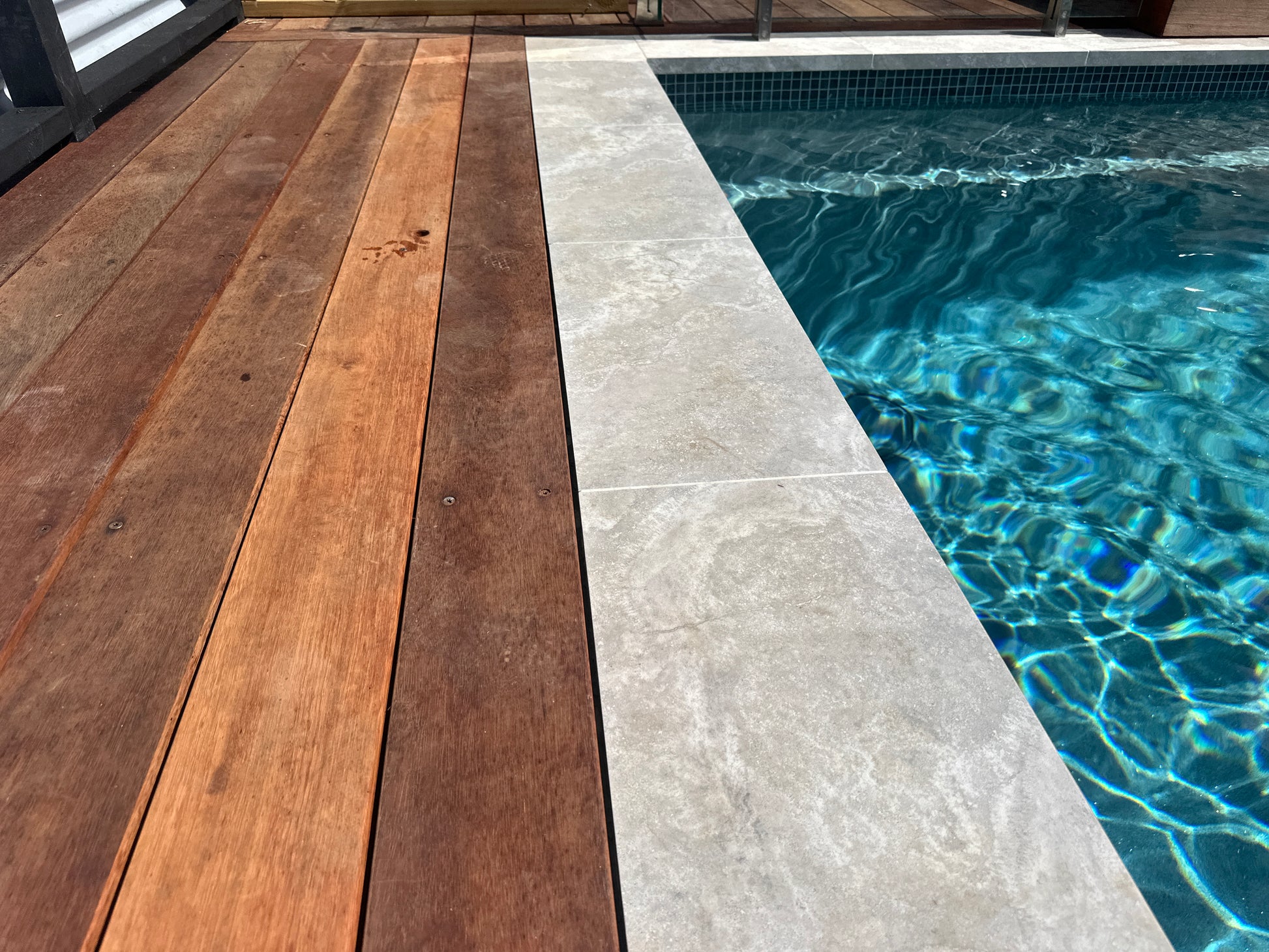

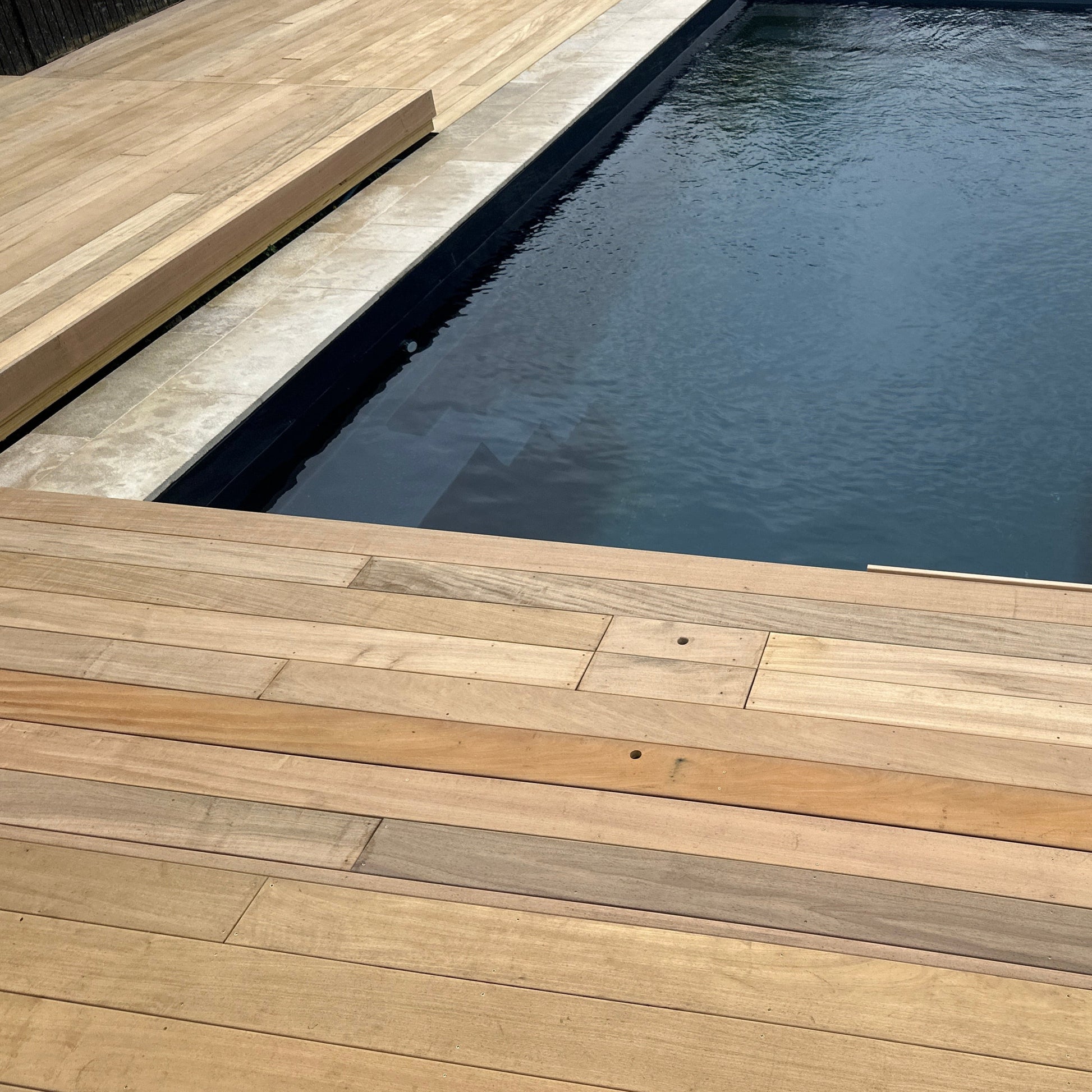

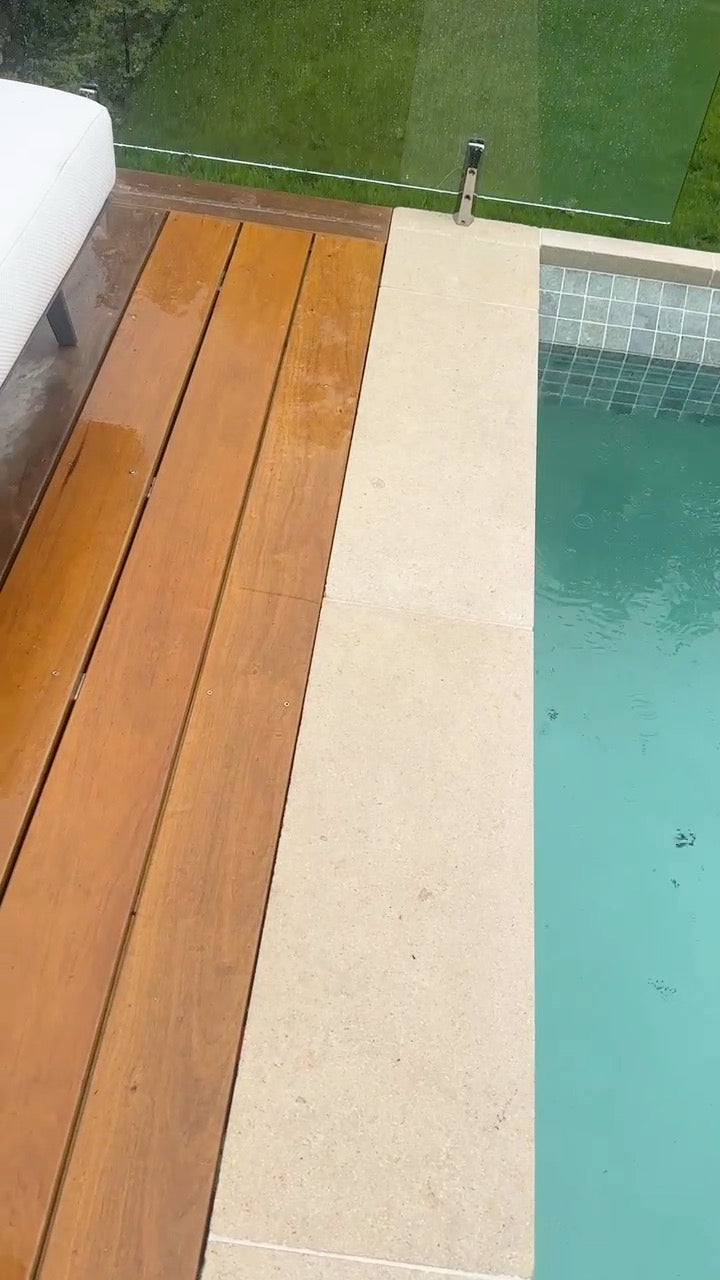

Pools with timber decks, tiles or raised surrounds
Homeowners wanting a tidy, minimalist pool area
Properties with limited space
Why choose PSH?
Unlike generic rollers or imported models, the Eco-Vanishing Hinge system is custom-designed for New Zealand conditions and pool lifestyles. Manufactured by Pool Solar Heating Specialist Limited, it reflects over 20 years of experience in pool innovation and fabrication. Pair it with a Heat Guard thermal blanket for enhanced performance.
FAQs
Is timber included? No – use any 120–140mm decking timber.
Can it be retrofitted? Yes – retrofit or new installation.
Does it need power? No, the manual roller needs no power. A motorised version is also available.
Get a quote or site advice
Shop direct online or email info@poolsolarheating.co.nz with your pool size, deck/pit layout or plans. Designed by Pool Solar Heating Specialist (PSH), a family-owned NZ pool heating business operating for over 35 years.
