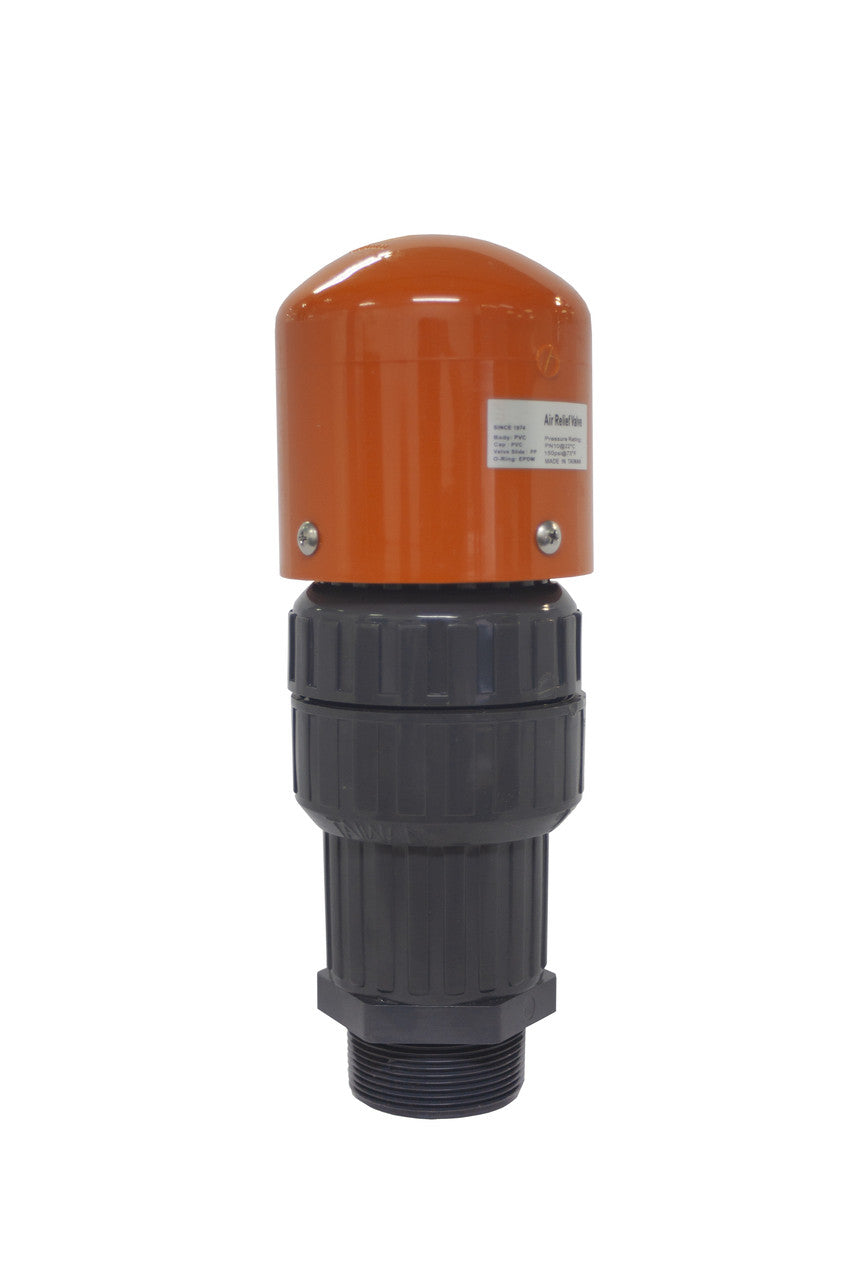

Air Relief Valve uPVC EPDM Seats and O-ring Male BSPT

Air Relief Valve uPVC EPDM Seats and O-ring Male BSPT supplied by Waterworks.

Choose your required size from the options above. Prices include GST.

Specifications

Material:
uPVC
Material Notes:
Some deterioration may occur when exposed to UV radiation.
Pressure Rating:
Sizes 15-50mm - PN10 (150PSI)
Pressure Rating Notes:
The pressure rating must be adjusted if the fittings are to be used at elevated temperatures above 20°C. Refer to PVC Pressure Pipe & Fittings Technical Manual for temperature de-rating factors.
Operating Temperature:
4°C to 40°C
Standard Seal:
EPDM
Standard Seal Temperature:
Refer to operating temperature
Standard Seal Temperature Notes:
Maximum temperature is 60°C. Minimum and maximum temperatures are not recommended for continuous operation or for applications of continuous fluctuations to these temperatures.
Alternate Seal:
Available on an indent basis. Please contact our team.
Other Technical Specifications:
Gasket - EPDM
O-Ring - EPDM
Thread - BSPT
