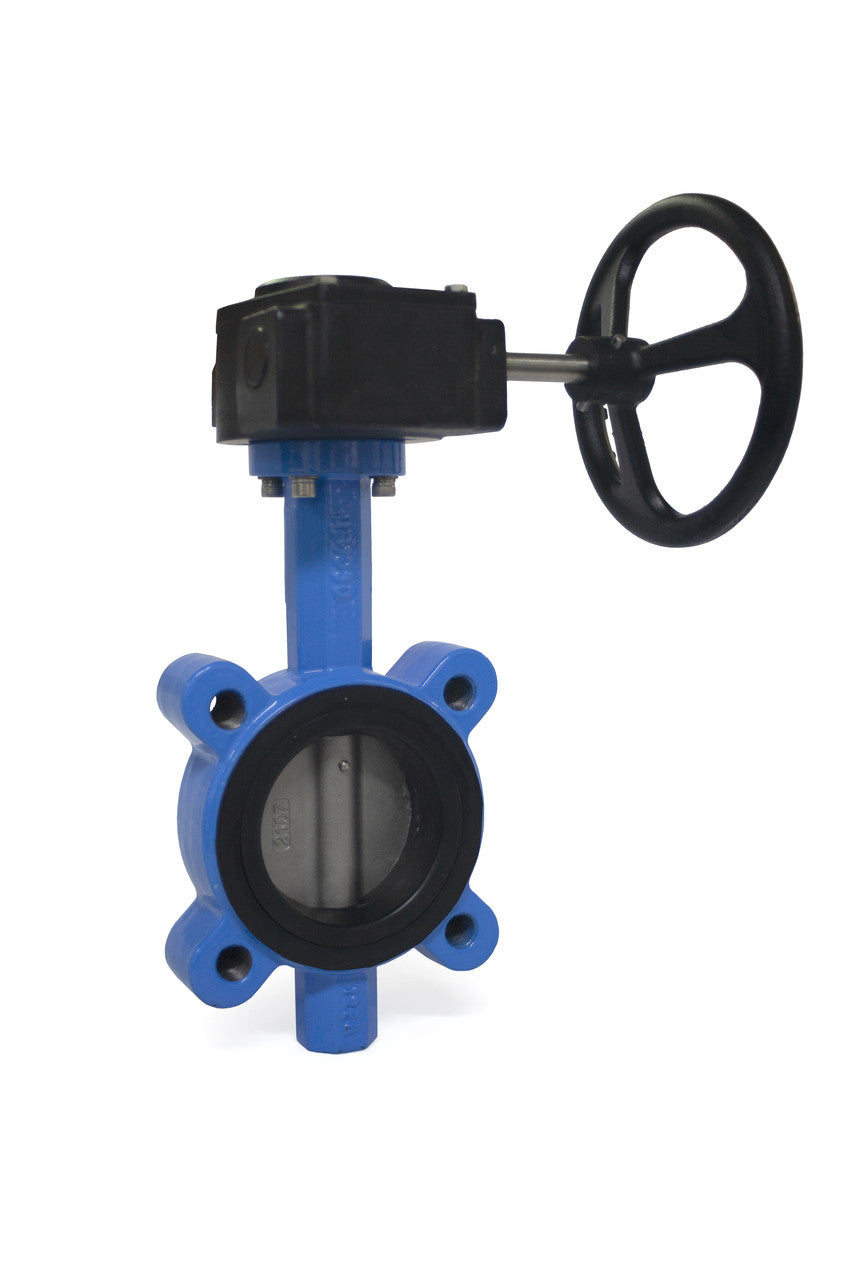

Butterfly Valve Lugged CI Body Stainless Disc EPDM Liner c/w Gearbox

Butterfly Valve Lugged CI Body Stainless Disc EPDM Liner c/w Gearbox supplied by Waterworks.

Choose your required size from the options above. Prices include GST.

Specifications

Material:
Ductile Iron
Material Notes:
Ductile iron body with a 2-component epoxy powder coating
Pressure Rating:
PN16 (16Bar/230PSI/1600kPa)
Operating Temperature:
Up to 120°C
Standard Seal:
EPDM
Standard Seal Notes:
Suitable for hot water, steam, alcohols, coolants, acids and bases
Standard Seal Temperature:
Max. 120°C
Other Technical Specifications:
316 stainless steel disc
316 stainless steel fastners
Table E threaded stud pattern to suit Table E flanges
Cast iron gearbox and handwheel
