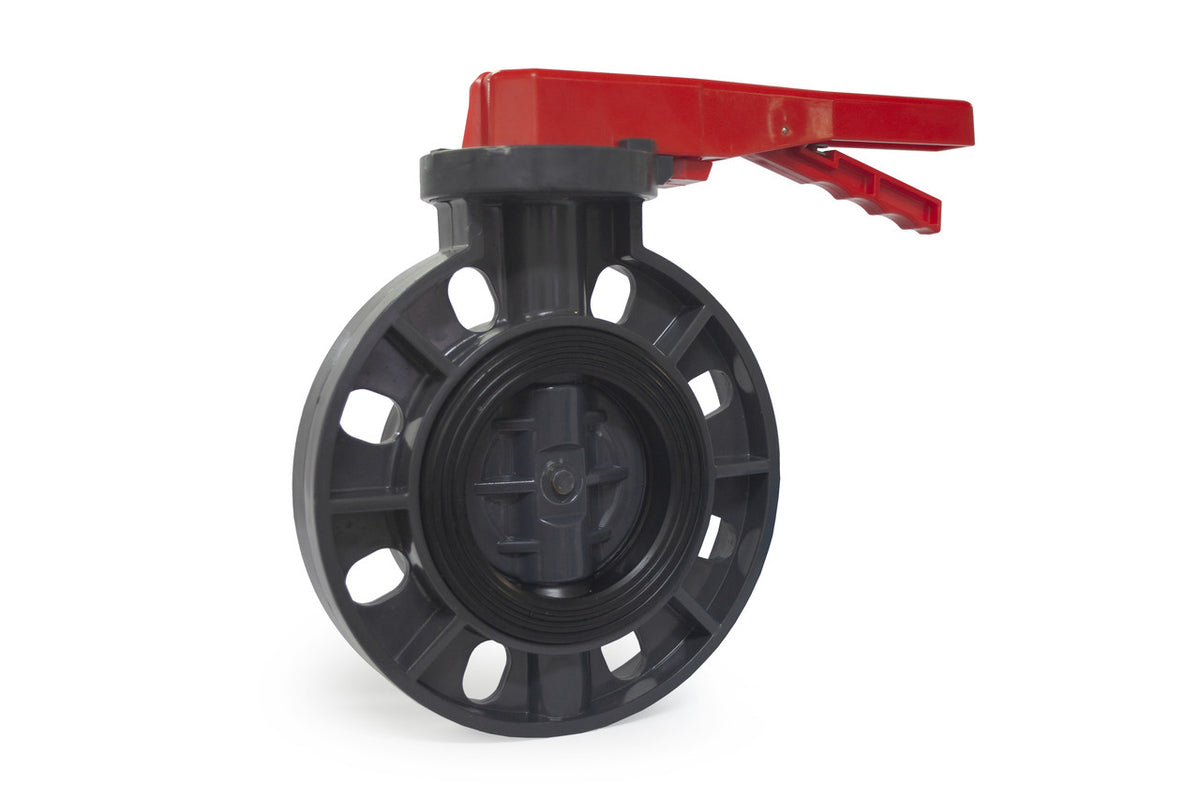

Butterfly Valve uPVC Body and Disc EPDM Liner Lever Handle 316 SS Stem

Butterfly Valve uPVC Body and Disc EPDM Liner Lever Handle 316 SS Stem supplied by Waterworks.

Choose your required size from the options above. Prices include GST.

Specifications

Material:
uPVC
Material Notes:
Some deterioration may occur when exposed to UV radiation.
Pressure Rating:
Sizes 50-150mm - PN10 (150PSI), Sizes 200-300mm - PN6 (87PSI)
Pressure Rating Notes:
The pressure rating must be adjusted if the fittings are to be used at elevated temperatures above 20°C. Refer to PVC Pressure Pipe & Fittings Technical Manual for temperature de-rating factors.
Operating Temperature:
4°C to 40°C
Standard Seal:
EPDM
Standard Seal Temperature:
Refer to operating temperature
Standard Seal Temperature Notes:
Maximum temperature is 60°C. Minimum and maximum temperatures are not recommended for continuous operation or for applications of continuous fluctuations to these temperatures
Alternate Seal:
Available on an indent basis. Please contact our team.
Other Technical Specifications:
Seat - EPDM
Stem, Spring, and Hinge Pin - 316 Stainless Steel
Lever handle - uPVC
Flange configuration - Universal (ANSI 150, DIN, Table D/E)
Disc - uPVC
O-Ring - EPDM
