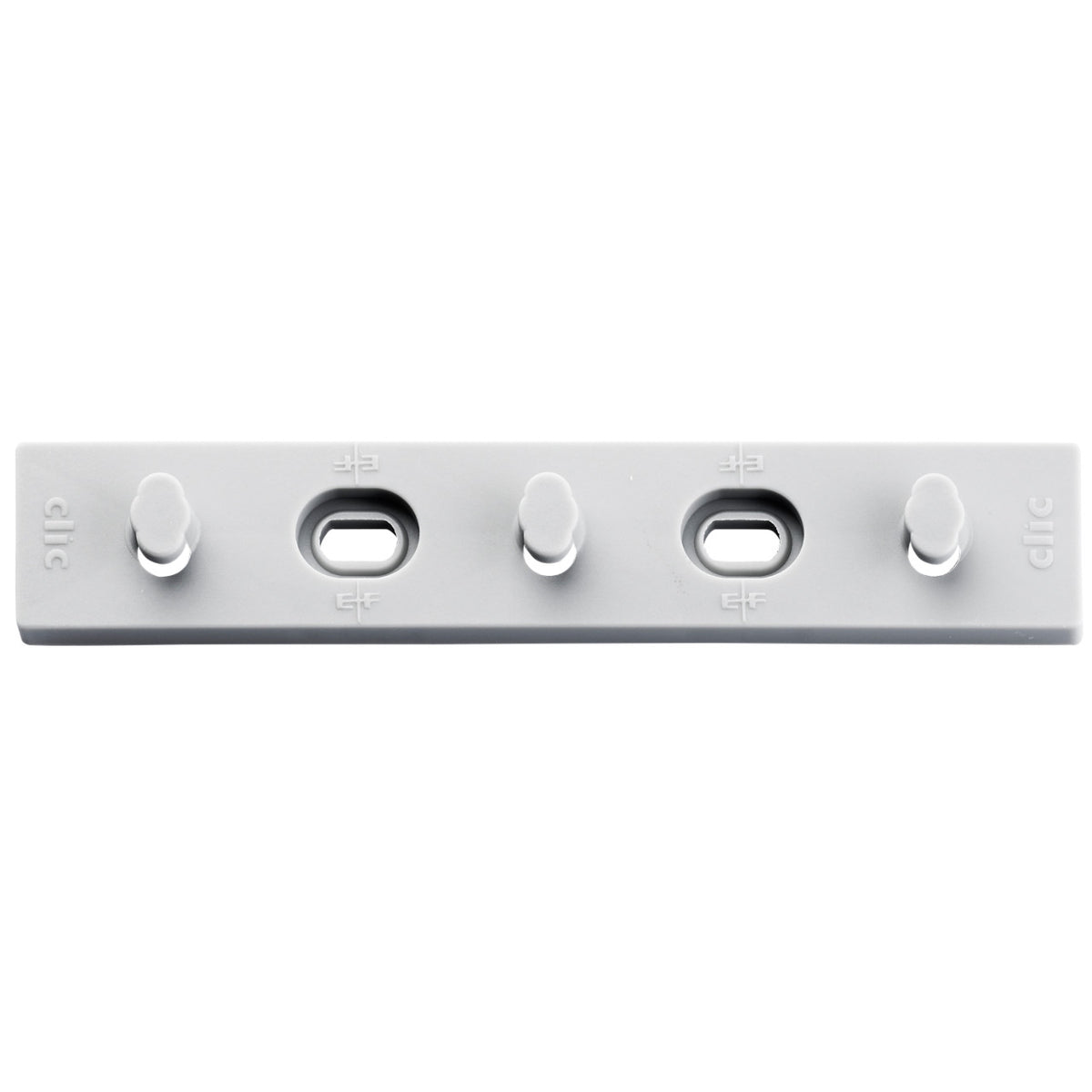

CLIC Triple Carrier Plate

CLIC Triple Carrier Plate supplied by Waterworks.

Choose your required size from the options above. Prices include GST.

Specifications

Material:
Polyamide PA 12
Material Notes:
UV, Chemical, Petrol, Diesel, and Oil Resistant
Operating Temperature:
-40°C to 110°C. Maximum short-term service temperature of 150°C.
Other Technical Specifications:
Density at 20°C - 1.01 g/cm3, Elongation at yield - 12%, E-Modulus in tension - 1100 MPa, Water absorption at 23°C - 1.50%, Shore hardness D - 74
Disruptive strength - 32 kV/mm, Flammability - HB according to UL 94, Calorific/Energy Value - 34 kJ/gram
