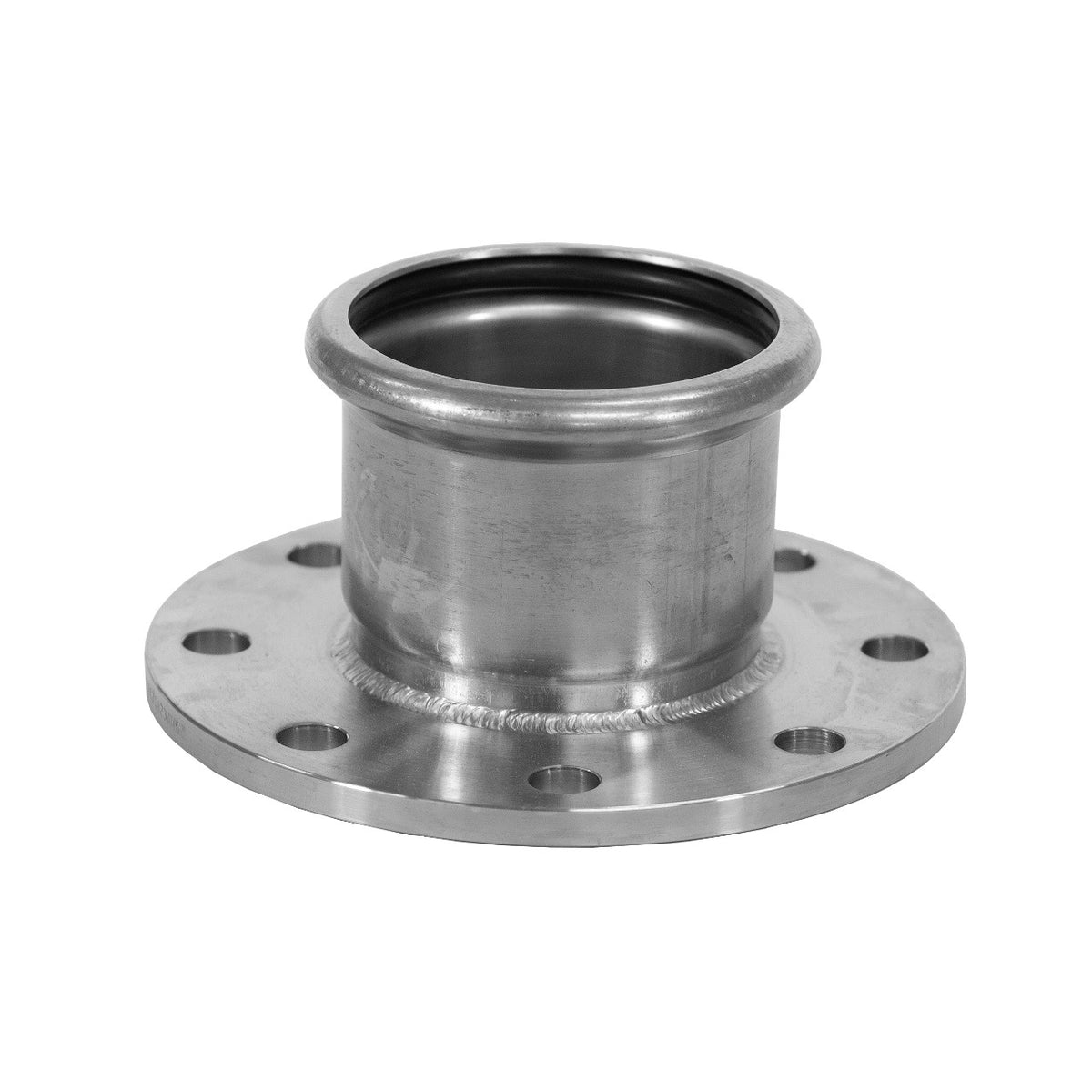

EUROPRESS 316L Stainless Steel SuperSize Adaptor Flange - Table E

EUROPRESS 316L Stainless Steel SuperSize Adaptor Flange - Table E supplied by Waterworks.

Choose your required size from the options above. Prices include GST.

Specifications

Material:
316L Stainless Steel
Pressure Rating:
16 Bar (232 PSI)
Pressure Rating Notes:
Europress can be used up to 40 Bar (580 PSI) on approved applications. Potable Water applications are approved up to 25 Bar (362 PSI) and Oil/Lubricant applications are approved up to 40 Bar (580 PSI). Conditions apply.
Standard Seal:
EPDM
Standard Seal Temperature:
-20°C to +95°C
Standard Seal Temperature Notes:
Can handle temperature spikes up to 120°C.
Alternate Seal:
FKM (Viton)
Alternate Seal Temperature Notes:
Can handle temperature spikes up to 180°C. Should you require FKM (Viton) seals simply add these to your order and make a note on your order stating you require FKM (Viton) seals and we will change these prior to despatch.
Alternate Seal Temperature:
-20°C to +120°C
