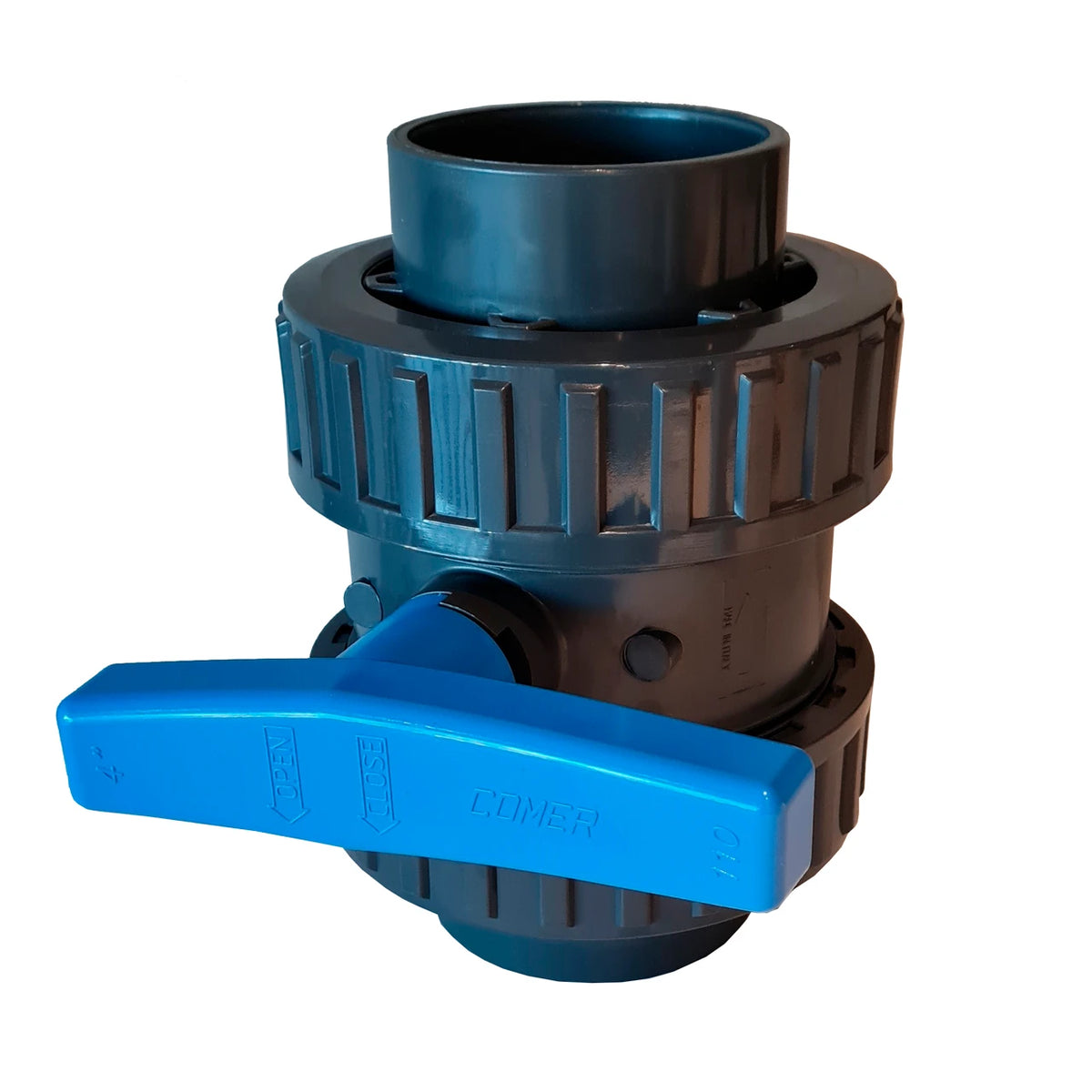

PVC Ball Valve Double Union SWJ EPDM

PVC Ball Valve Double Union SWJ EPDM supplied by Waterworks.

Choose your required size from the options above. Prices include GST.

Specifications

Material:
uPVC
Material Notes:
To protect PVC from deterioration from UV radiation, PVC installed outdoors should be either insulated or painted with a light coloured acrylic or latex paint that is chemically compatible with PVC. Oil-based paints should not be used. Valve handles will stiffen and become brittle after extended exposure to UV radiation.
Pressure Rating:
PN16 (16Bar/232PSI/1600kPa) for Sizes 15mm to 50mm, PN10 (10Bar/145PSI/1000kPa) for Sizes 65mm to 100mm.
Pressure Rating Notes:
Pressure rating is at 20°C. As temperatures increase the pressure rating will be de-rated.
Operating Temperature:
4°C to 40°C
Standard Seal:
EPDM
Other Technical Specifications:
Handle: uPVC
Stem: uPVC
Body: uPVC
Union End: uPVC
Union Nut: uPVC
Ball: uPVC
Sealing Bush: uPVC
Ball Seat: PTFE
Union O-ring: EPDM
O-ring Sealing Bush: EPDM
O-ring Ball Seat: EPDM
O-ring Stem:EPDM
Directional flow marked by arrow on valve body
Handle can be detached
Valve can be unassembled from one end for servicing of the ball and valve inside.
