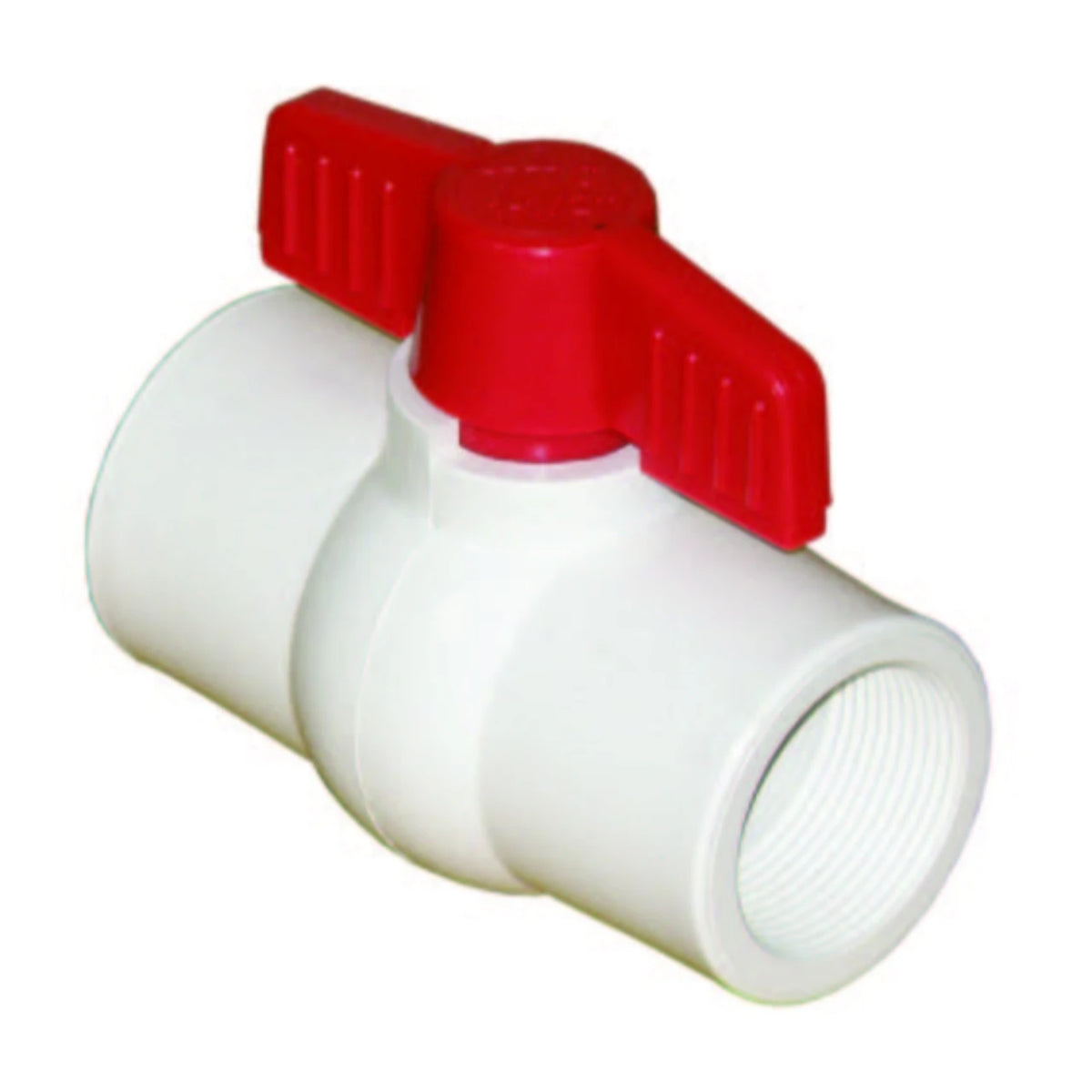

PVC Compact Ball Valve BSP

PVC Compact Ball Valve BSP supplied by Waterworks.

Choose your required size from the options above. Prices include GST.

Specifications

Material:
PVC
Material Notes:
To protect PVC from deterioration from UV radiation, PVC installed outdoors should be either insulated or painted with a light coloured acrylic or latex paint that is chemically compatible with PVC. Oil-based paints should not be used. Valve handles will stiffen and become brittle after extended exposure to UV radiation.
Pressure Rating:
Working Pressure: PN10 (10Bar/145PSI/1000kPa)
Pressure Rating Notes:
Maximum Pressure: PN15 (15Bar/217PSI/1500kPa) Pressure rating is at 20°C. As temperatures increase the pressure rating will be de-rated.
Operating Temperature:
4°C to 40°C
Standard Seal:
EPDM
Other Technical Specifications:
Body: PVC
Seat: EPDM
O-ring: EPDM
Ball: uPVC
Handle: ABS
Screw: Nickel Plated Steel
Cap: ABS
