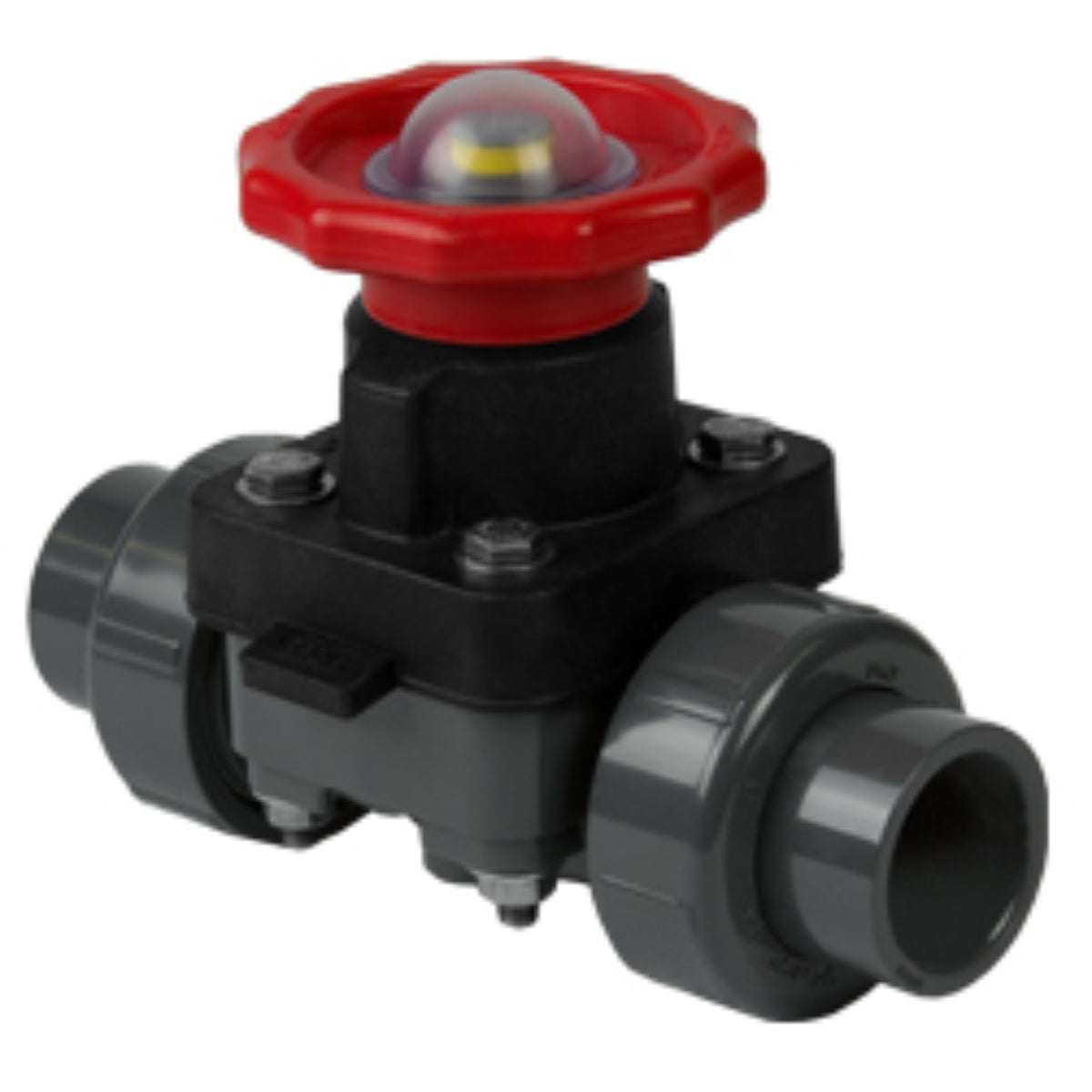

Sch80 PVC Diaphragm Valve FKM SOC NPT EPDM PTFE

Sch80 PVC Diaphragm Valve FKM SOC NPT EPDM PTFE supplied by Waterworks.

Choose your required size from the options above. Prices include GST.

Specifications

Material:
PVC/EPDM/PTFE/FKM
Material Notes:
Diaphragm is EPDM/PTFE and valve seals are FKM. To protect PVC from deterioration from UV radiation, PVC installed outdoors should be either insulated or painted with a light coloured acrylic or latex paint that is chemically compatible with PVC. Oil-based paints should not be used.
Pressure Rating:
235 PSI
Pressure Rating Notes:
Pressure rating applies to sizes 15mm (1/2") to 50mm (2"). 65mm (2 1/2") to 100mm (4") and all flanged valves are rated to 150 PSI, all 150mm (6") are rated to 100 PSI, and all 200mm (8") are rated to 75 PSI at 23°C.
Operating Temperature:
4°C to 40°C
Standard Seal:
EPDM/PTFE & FKM
Standard Seal Notes:
Diaphragm is EPDM/PTFE and valve seals are EPDM.
Standard Seal Temperature:
Refer to operating temperature
Standard Seal Temperature Notes:
Maximum temperature is 60°C. Minimum and maximum temperatures are not recommended for continuous operation or for applications of continuous fluctuations to these temperatures. Also, please keep in mind, as temperatures increase , thermal expansion will increase and bracket spacing will decrease. The pressure capability will also need to be de-rated. Please refer to the PVC Pressure Pipe & Fittings Technical Manual for further details.
Other Technical Specifications:
Built-in position indicatorPolypropylene handwheelUnion nuts have buttress threads
