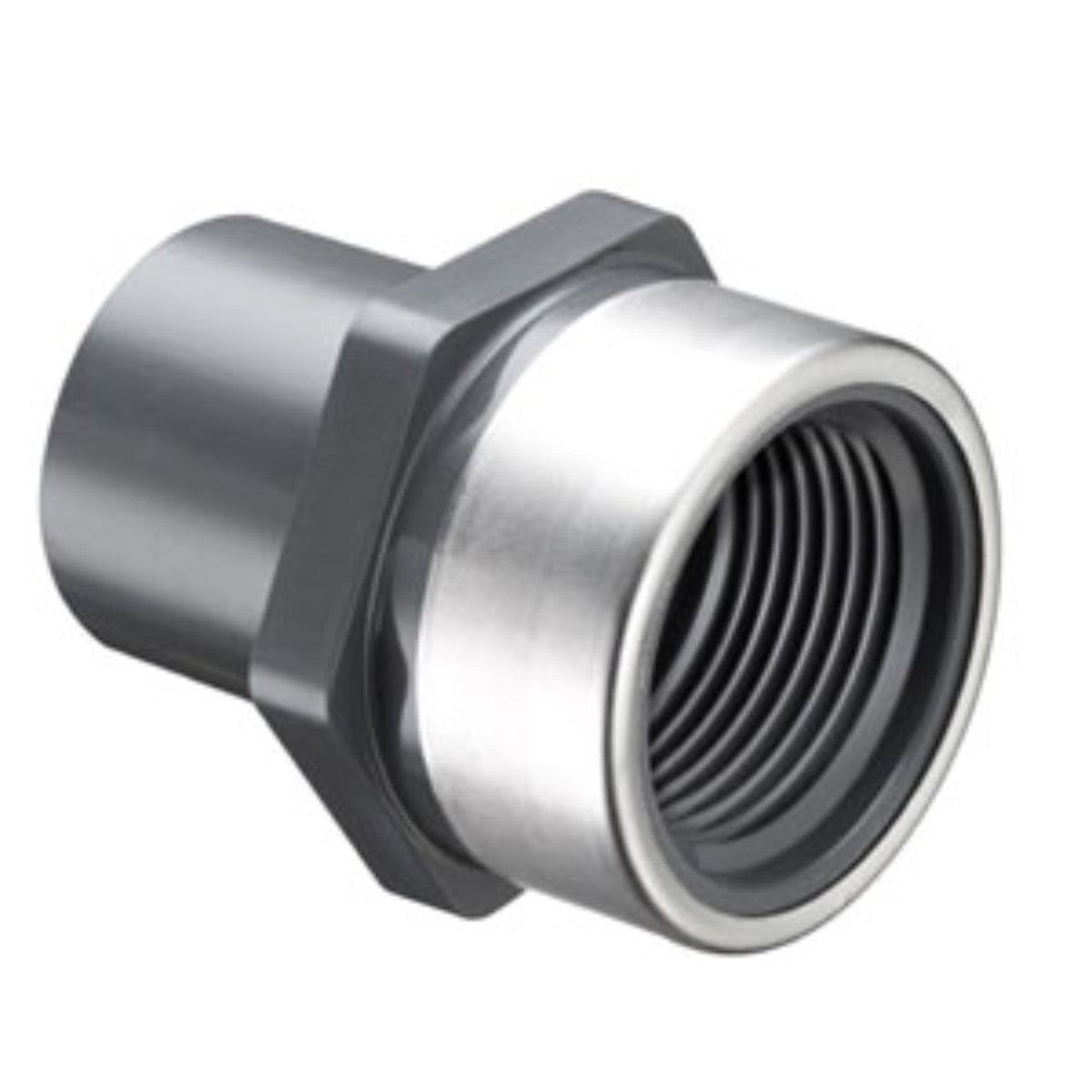

Sch80 PVC Faucet Adaptor SS Reinforced SPG NPT

Sch80 PVC Faucet Adaptor SS Reinforced SPG NPT supplied by Waterworks.

Choose your required size from the options above. Prices include GST.

Specifications

Material:
PVC/Stainless Steel
Material Notes:
This fitting has a stainless steel reinforcing ring around the thread. To protect PVC from deterioration from UV radiation, PVC installed outdoors should be either insulated or painted with a light coloured acrylic or latex paint that is chemically compatible with PVC. Oil-based paints should not be used.
Pressure Rating:
150 PSI
Pressure Rating Notes:
Pressure rating applies at 23°C.
Operating Temperature:
4°C to 40°C
Standard Seal Temperature Notes:
Maximum temperature is 60°C. Minimum and maximum temperatures are not recommended for continuous operation or for applications of continuous fluctuations to these temperatures. Also, please keep in mind, as temperatures increase , thermal expansion will increase and bracket spacing will decrease. The pressure capability will also need to be de-rated. Please refer to the PVC Pressure Pipe & Fittings Technical Manual for further details.
